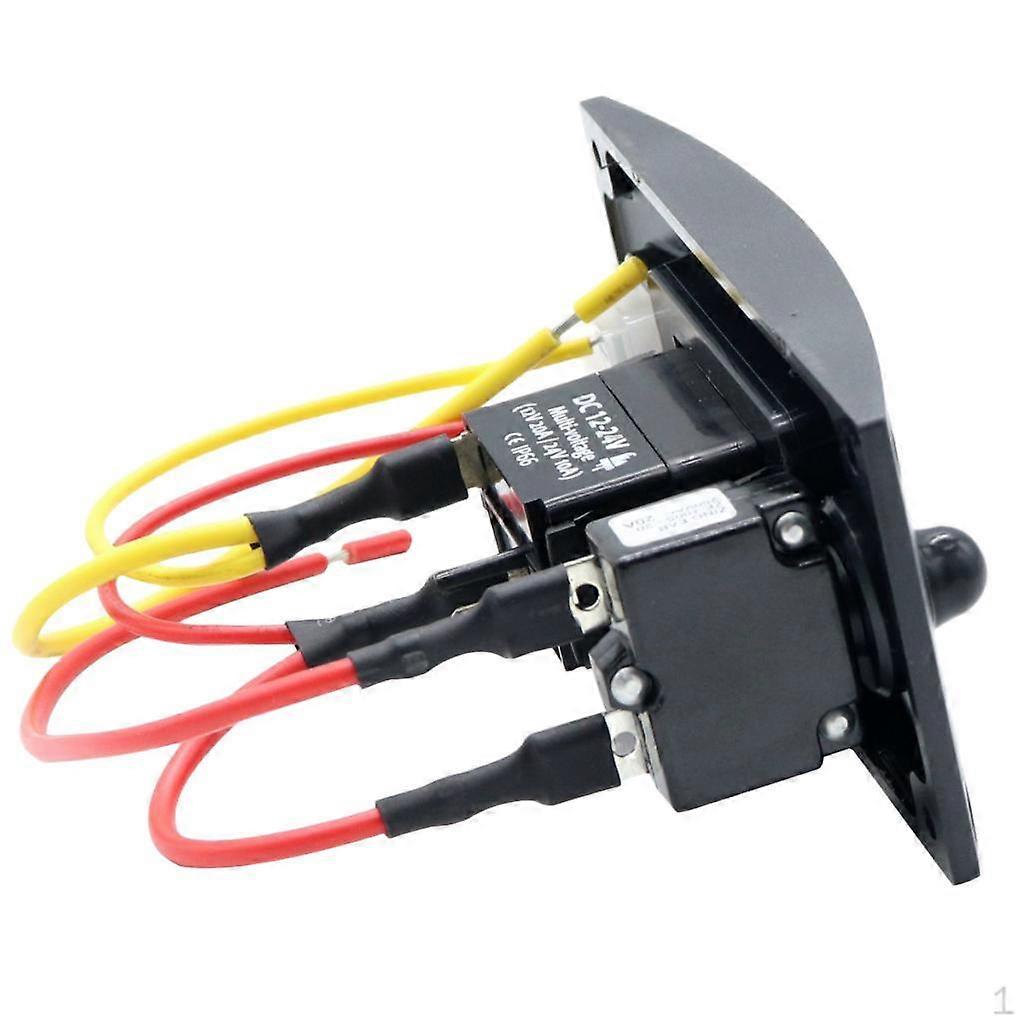

Description: - (ON)-OFF curved design single branch switch panel. - Blank 1P panel that goes well with other SP33 series panels. - C-7 sealed IP66 switch with dual (12-24V) voltage rating. - Backlight label module allowing easy recognition in . - Various switch functions available - Control applications: such as horn .control / hoist control / wiper / bilge pump. Specification: - Product Name: Curved Switch Panel - Model: S4125 - Material: Panel ABS - Product Color: Black - Circuit Protection: 20A Reset Circuit Breaker - Rated: DC12V 20A /24V 10A - Panel Depth: 7.5cm / 2.95 inch - Installation Size: 10.3x4.3cm / 4.05x1.69 inch - Product Size: 5.4x4.8x11.4cm / 2.12x1.89x4.49 inch - Packing Size: 11.5x7x8.5cm / 4.53x2.75x3.35 inch - Waterproof Rating: IP66 - CE certification - Installation Instructions - 1.Disconnect all power (AC & DC). - 2.Cut opening for mounting location using the template provided. - 3.Connect the positive wire (red) to the DC power source (the batteries) and the LED negative feed wire (yellow) to a DC negative bus bar. - 4.Connect switch load terminals to the desired device. - 5.Connect the negative wires of the devices to a negative bus bar. - 6.Mount the switch panel with the included self-tapping screws. - 7.Reconnect all the AC & DC powers. Turn on and off all branch circuits to check if the panel works normally. Package Includes: 1 Piece Curved Switch Panel 4 Pieces Screws 1 Piece Instruction Manual
