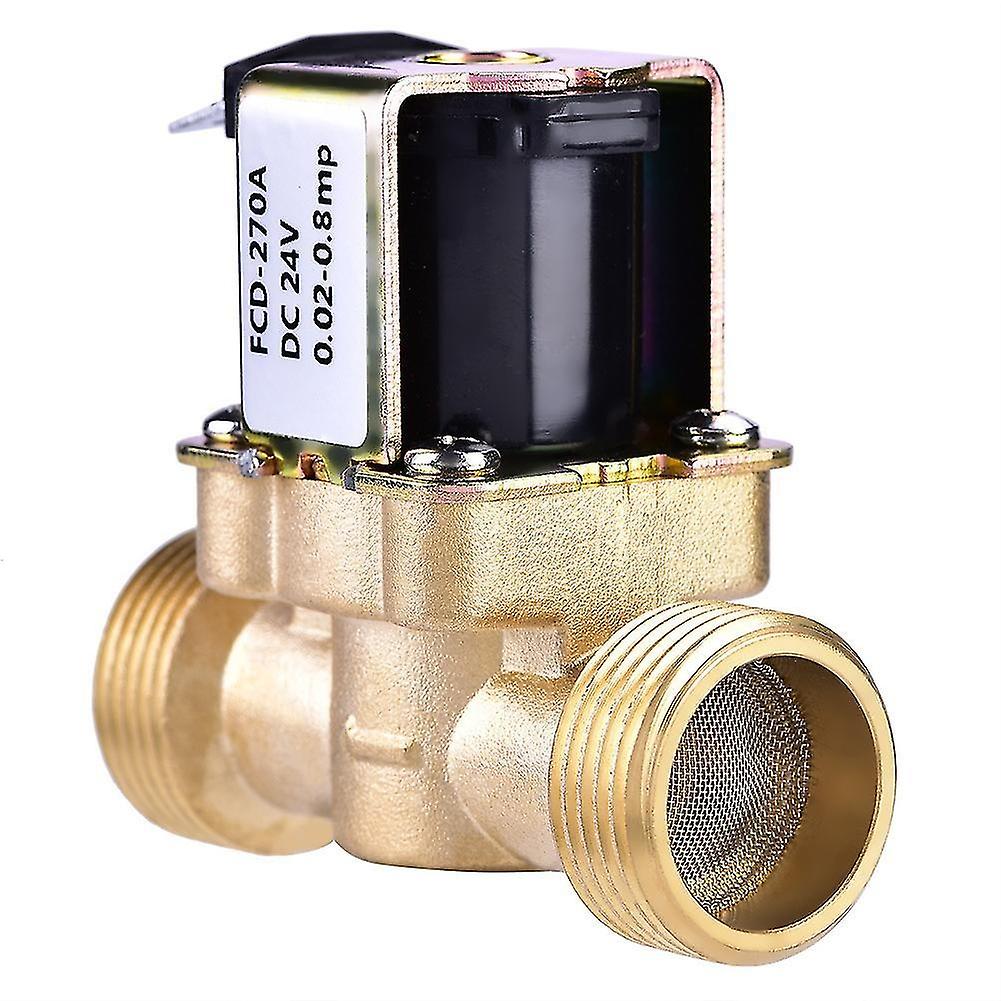

XUEMEI Made of high-quality brass material, precise and reliable. Can be installed at any angle. It also monitors flow and prevents dry burn. Moisture, corrosion and high temperature resistance. Easy to install and maintain and durable. Product main technical indicators and precautions: 1. Environmental conditions for the use of the low-pressure solenoid valve inlet valve 1.1 The altitude does not exceed 2500 meters 1.2 Ambient temperature is 0-40C 1.3 The relative humidity of the air is below 95% (temperature is 25C) 2. Type and rated technical parameters 2.1 Type: Guided (one-way) solenoid valve (also known as non-packing pilot valve action or solenoid valve) 2.2 Rated voltage: DC 3V/6V/12V/24V/36V 2.3 Rated current: 3V-550MA/6V-430MA/12V-300MA/24V-220MA/36V-150MA 2.4 Working mode: short-term quota system (ie intermittent cycle work system) 2.5 Insulation class: Class E insulation 2.6 Fluid used: (0-55C) water 2.7 Use water pressure: 0.02-0.8Mpa 2.8 Flow characteristics of water Water pressure (Mpa) 0.020.10.30.8 (Jinyi factory standard) Flow rate (L/min)> 5>11>18>32 (domestic general standard) Flow rate (L/min)>3>8>13>25 2.9 Life: more than 100,000 times 3.1 During the storage process, do not fall, rain and snow, and cause damage to the outer carton 3.2 Without opening the outer packaging carton, the product should be kept in a well-ventilated indoor warehouse, and there should be no corrosive gas in the surrounding air.
