2 Position 5 Way Air Solenoid Valve 50mm DC24V for Industrial Applications

$49.00
FREE Shipping

2 Position 5 Way Air Solenoid Valve 50mm DC24V for Industrial Applications

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
  • product image
2 Position 5 Way Air Solenoid Valve 50mm DC24V for Industrial Applications

2 Position 5 Way Air Solenoid Valve 50mm DC24V for Industrial Applications

  • Brand: Unbranded
Price: $49.00
Sold by:
$49.00
FREE Shipping

In stock

We accept the following payment methods

Description

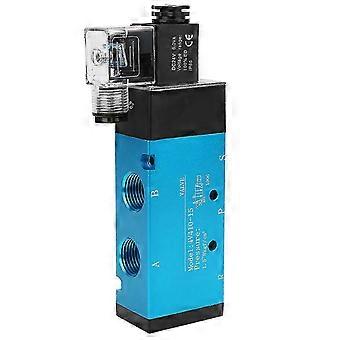

Features: Large effective area reaches 50mm2 with connection diameter of PT1/2in. The normally working pressure is 0.15~0.8MPa and can endure a maximum pressure of 1.2MPa. High sensitivity and low energy consumption,more stable working. The valve can withstand a voltage floating between -15%~+10%. Sufficient copper coil makes the valve more stable with low heating. Specification: Working Medium: Air (40 Micron Filter) Model: 4V410-15 Coil: DC24V DC12V AC110V AC220V(Optional) Connection Diameter: Intake = Outlet = Exhaust = PT1/2 Effective Area: 50 Square Millimeters (CV = 2.79) Working Temperature: -5~60 C Working Pressure: 0.15~0.8MPa (21-114PSI) Power Consumption: AC: 6VA DC: 4.8W Voltage Range: -15%~+10% Insulation And Protection Rating: IP65 Frequency: 3/ S Minimum Excitation Time: 0.05 Seconds Or Less Maximum Pressure Resistance: 1.2Mpa (170psi) Package List: 1 x Solenoid Valve
  • Fruugo ID: 386858847-830855081
  • EAN: 9012292223549
