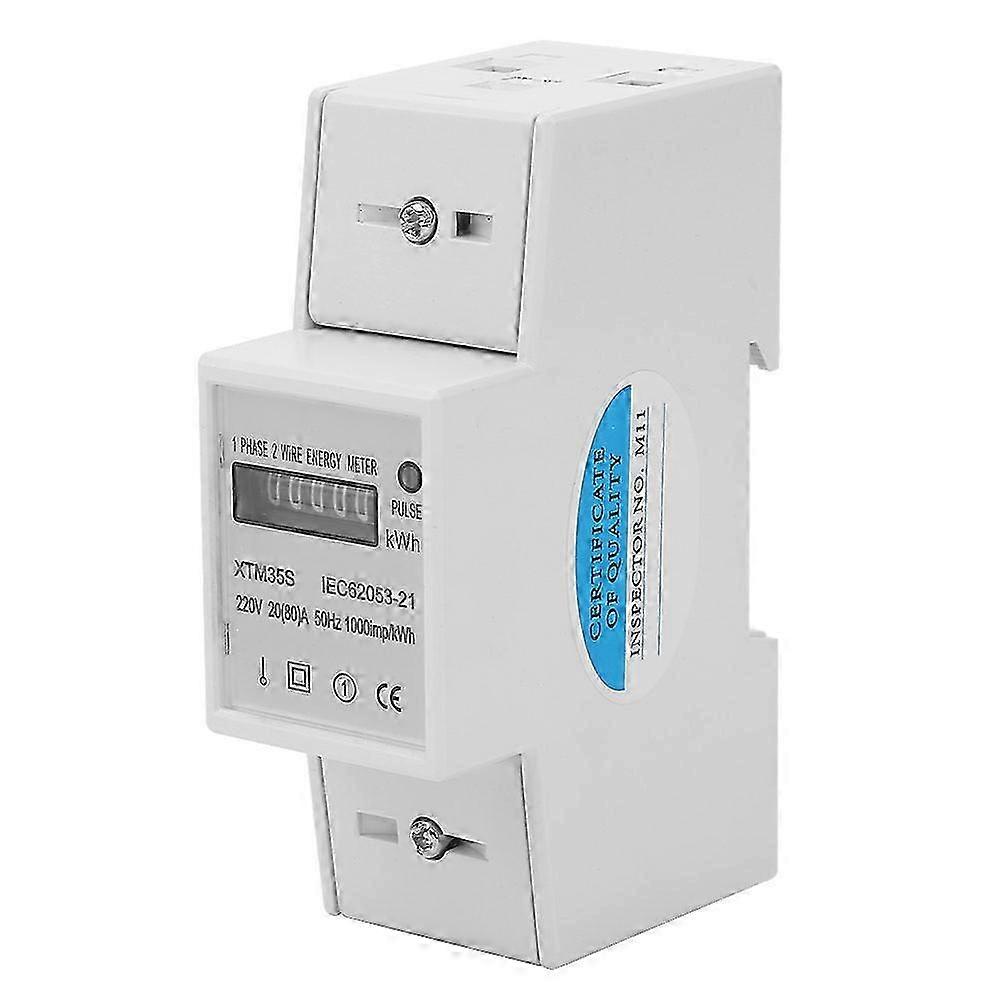

220V Digital Single Phase 2 Wire 2P Din Rail Electric Meter Electronic KWh Meter (20(80)A)

$79.00
FREE Shipping

220V Digital Single Phase 2 Wire 2P Din Rail Electric Meter Electronic KWh Meter (20(80)A)

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
  • product image
220V Digital Single Phase 2 Wire 2P Din Rail Electric Meter Electronic KWh Meter (20(80)A)

220V Digital Single Phase 2 Wire 2P Din Rail Electric Meter Electronic KWh Meter (20(80)A)

  • Brand: Unbranded
Price: $79.00
Sold by:
$79.00
FREE Shipping

In stock

We accept the following payment methods

Description

Features: _x000D_ 35mm DIN standard rail mounted, conforming to Standards DIN EN 50022 _x000D_ Bipolar width, complying with standard DIN43880. _x000D_ Can select the step motor impulse register of 5+1 digits (99999.1kWh) . _x000D_ Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864. _x000D_ Two LEDs to indicate separately the power state and the energy impulse signal _x000D_ Measure the active energy consumption in one direction on single phase two wire, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21. _x000D_ The short terminal cover is made with the transparent PC, to reduce the installation space and is convenient for centralized installation. _x000D_ _x000D_ _x000D_ Specifications: _x000D_ Model: XTM35S_x000D_ _x000D_ Accuracy: Class 1 _x000D_ Voltage: 220V _x000D_ Current: 20(80)A _x000D_ Insulation performance: AC voltage 4kv for 1 minute,1.2/50us waveform impulse voltage 6kv _x000D_ Size: 10*3.6*6.5cm/3.9*1.4*2.6in _x000D_ Weight: Approx.160g/5.6oz _x000D_ _x000D_ _x000D_ Package included: _x000D_ 1 x DIN-Rail Electric Meter _x000D_ 1 x Manual
  • Fruugo ID: 386796715-830756593
  • EAN: 9584106948950
