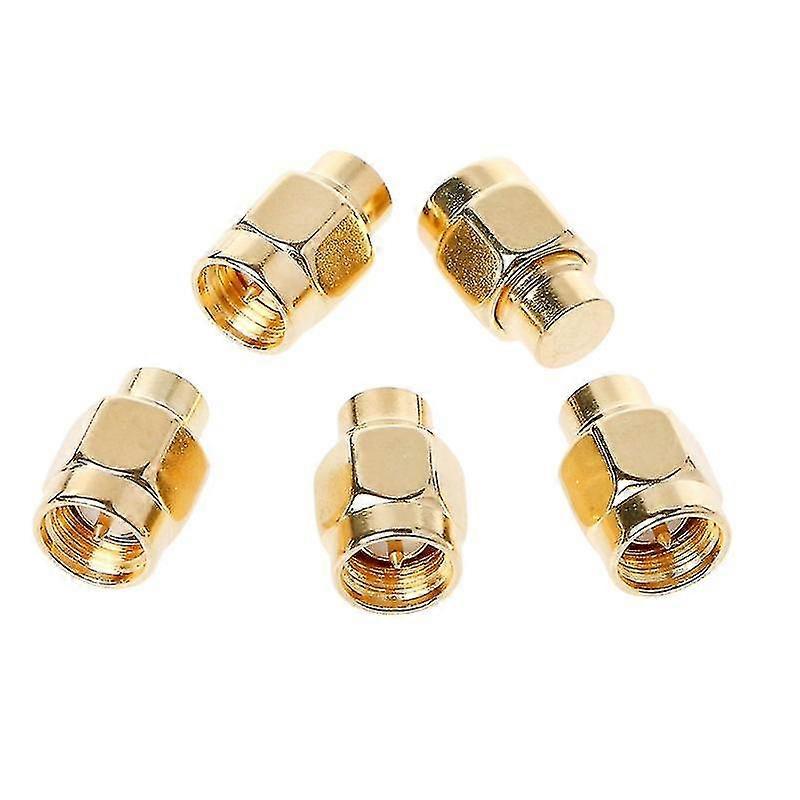

5pcs 50 Ohm Rf Coaxial Gold Plated Matched Termination Loads Sma Male Connector

$34.95
FREE Shipping

5pcs 50 Ohm Rf Coaxial Gold Plated Matched Termination Loads Sma Male Connector

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
  • product image
5pcs 50 Ohm Rf Coaxial Gold Plated Matched Termination Loads Sma Male Connector

5pcs 50 Ohm Rf Coaxial Gold Plated Matched Termination Loads Sma Male Connector

  • Brand: Unbranded
RRP: $74.00
Price: $34.95
You save: $39.05 (52%)
Sold by:
$34.95
FREE Shipping

In stock

We accept the following payment methods

Description

Specification: Temperature range: Temp.range -65 ~ + 165 C (PE Cable -40 ~ + 85 C) Vibration: Vibration MIL-STD-202, Method 213 Characteristic Impedance: Impedance 50 Frequency range: Frequency Range DC ~ 12.4GHz (half just cable 0 ~ 18GHz) Operating voltage: Working Voltage 335V max (RMS) Pressure: Withstand Voltage 1000V rms (sea level minimum) Contact resistance: Contact resistance Between the inner conductors: Center Contact 3 m Outside conductor: Outer Contact 2 m Insulation resistance: Insulation resistance 5000 M Insertion loss: 0.15 dB / 6 GHz Voltage Standing Wave Ratio: VSWR Straight: Straight Soft Cable 1.10 + 0.002f Semi-Rigid Cable 1.05 + 0.001f Curved right angle soft cable 1.20 + 0.003f semi-rigid cable 1.10 + 0.001f Durability (Dating (mating) 500 times (cycles) Size:12x8mm/0.47x0.31'' Quantity: 5Pcs Note: Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you No Retail Package Package included: 5Pcs x SMA Load Male Connector
  • Fruugo ID: 117148024-246079195
  • EAN: 945299242666
