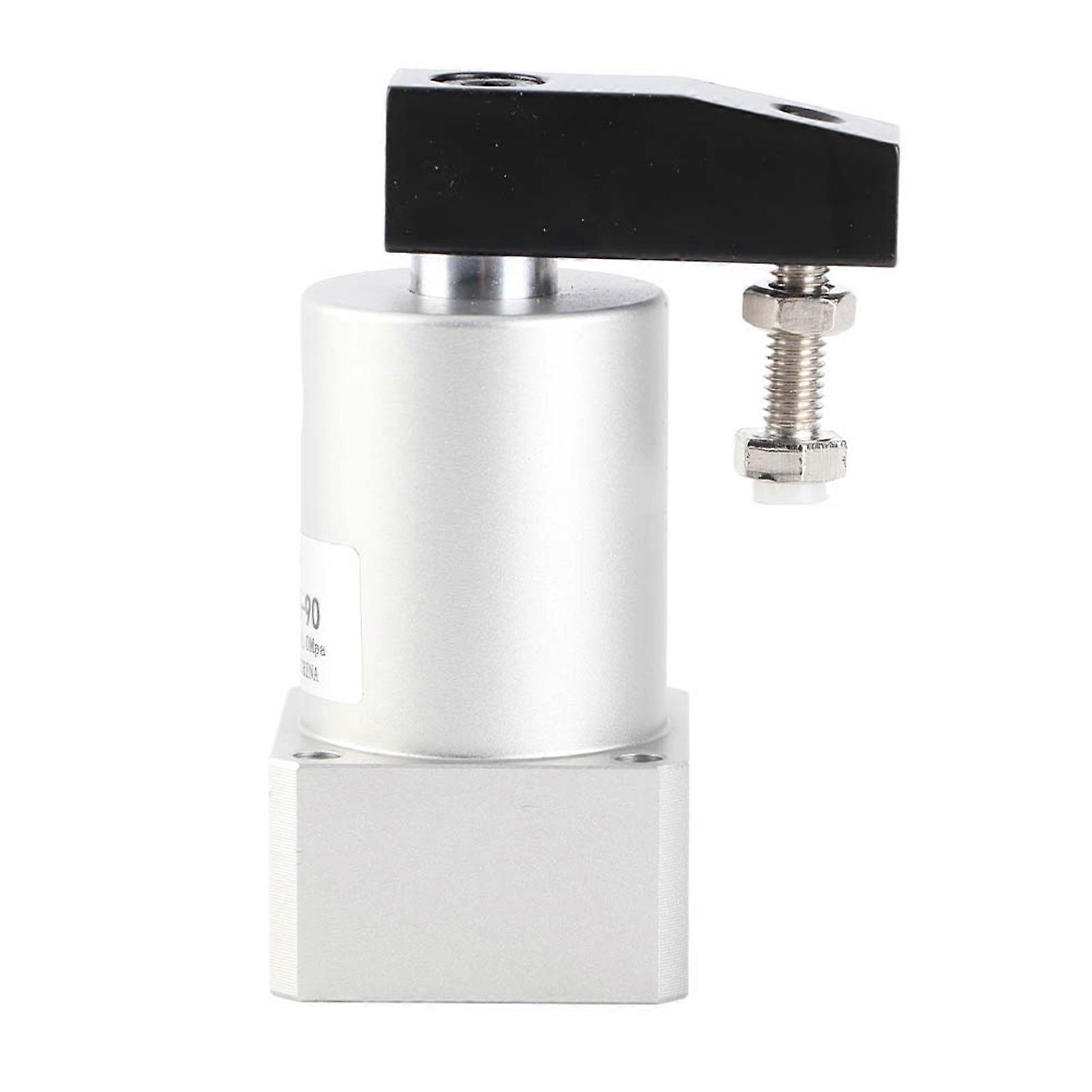

Feature: 1. It is a double‑acting rotary clamping corner press cylinder with an inner diameter of 25mm. 2. The maximum working pressure with this rotary pneumatic cylinder can reach 1.0MPa. 3. With high speed, the maximum operating speed can reach 200mm per second. 4. Made of high‑quality aluminium alloy, which makes it more durable and long‑lasting. 5. The shape is small and can be rotated by 90 degrees, which is convenient, fast and labor‑saving. Specification: Condition: Brand New Item Type: Rotary Pneumatic Cylinder Color: As Pictures Shown Material: Aluminium Alloy Inner Diameter: Approx. 25mm/0.98in Outer Diameter of Piston Rod: Approx. 14mm/0.6in Action Type: Compound ActionType Working Medium: Air (filtered through a filter above 40μm) Service Pressure Range: 0.15-1.0mpa (22~145psi) Guaranteed Pressure Resistance: 1.5MPa (215psi) Working Temperature: -20-80℃ Operating Speed Range: 50-200mm/s Range of Travel Tolerance: 1.0 Rotation Angle Tolerance Range: ±1.5° Buffer Type: None Pipe Diameter: M5x0.8 Installation and Use 1. When the cylinder clamps the workpiece, it must be performed within the clamping stroke, and the clamping operation cannot be performed within the rotation stroke. 2. The clamping plane must be perpendicular to the cylinder axis. After the workpiece is clamped, please do not move the workpiece. 3. Before piping the cylinder, the debris in the pipe must be removed to prevent debris from entering the cylinder. 4. The medium used in the cylinder should be filtered by a filter element above 40μm before use. 5. When the cylinder is removed and not used for a long time, pay attention to anti-rust on the surface, add anti-dust blocking caps to the intake and exhaust ports, and apply anti-rust oil to the piston rod end.. Package List: 1 x Rotary Pneumatic Cylinder
