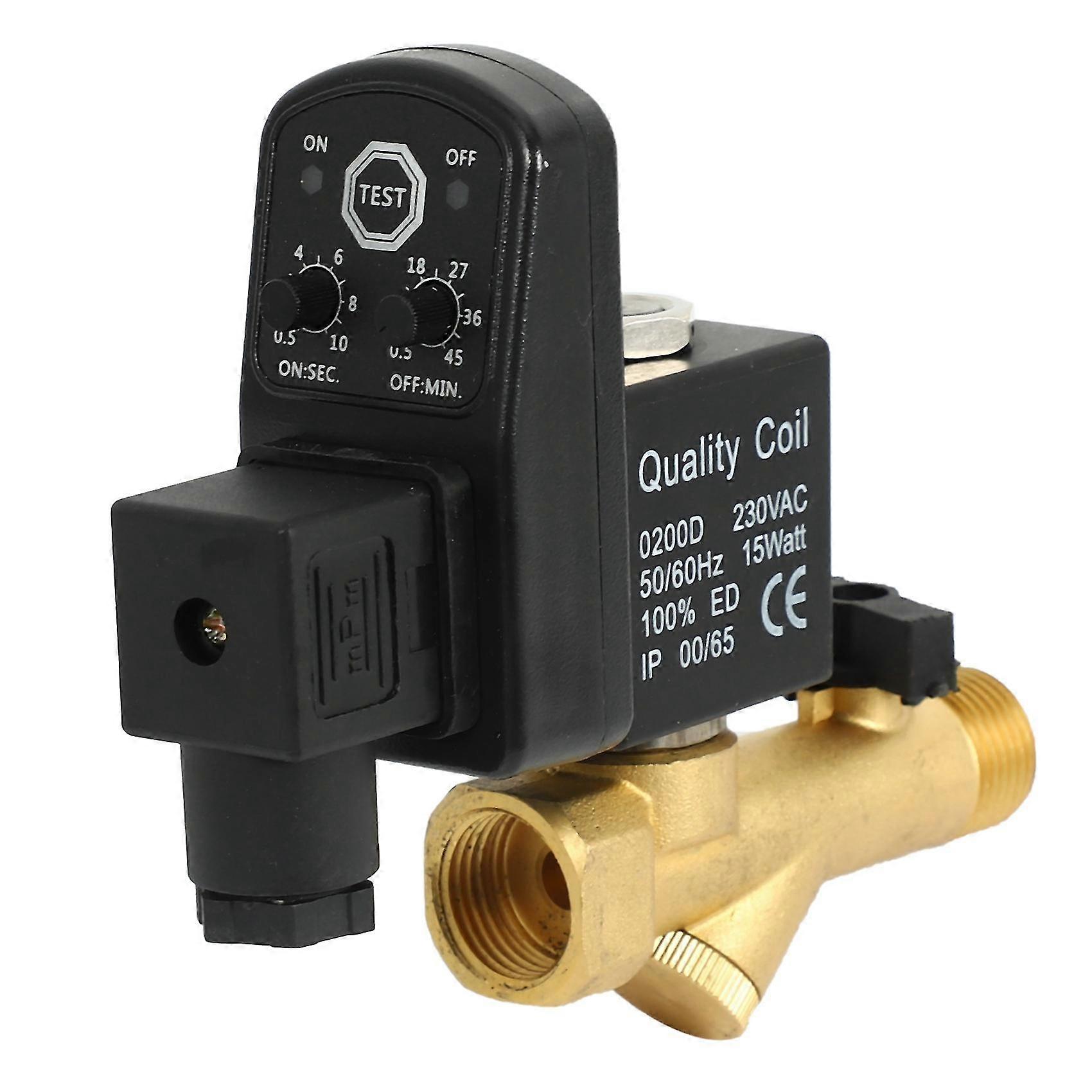

Name: Electronic drain valveModel: 507292Indicator lamp: LED indicating power on / offVoltage range: +/-10%Protection : IP65Insulation: HMaximum working pressure: 1.6MpaMaximum temperature: 90 Celsius temperature: -40 Celsius to 60 Celsius The largest current consumption: 4mAPower supply voltage: 24-240V AC/DC 50/60HzDischarge time (ON): 0.5--10 secondsTime interval (OFF): 0.5--45 minutesWidely used in , separators, dryers, gas tank, drip legs and other compressed air system componentsClean the compressed air system installation.Note the direction of the when installing the valve: outlet do not use the hose that not against the impact of air.Power supply voltage should be with the drain valve voltage: the pole must be connected to connector 1 when using DC.When leave the the drain valve has connected to the cable, brownness is fiery L,blue is the N,yellow-green color is the safety ground wire GND.Be to tighten the long screw on the terminal box to prevent water from burning.Warning When installing the electronic drain valve, make that: Compressed air has been emptied (that is, under pressure).The power supply has been switched off.colour: Gold + blackMaterial: metalsize: flow : 5 mmIn / out port size: 1/2inchPackage Contents: 1 x Electronic drain valveOnly the above package content, other are not included.Note: Light and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
