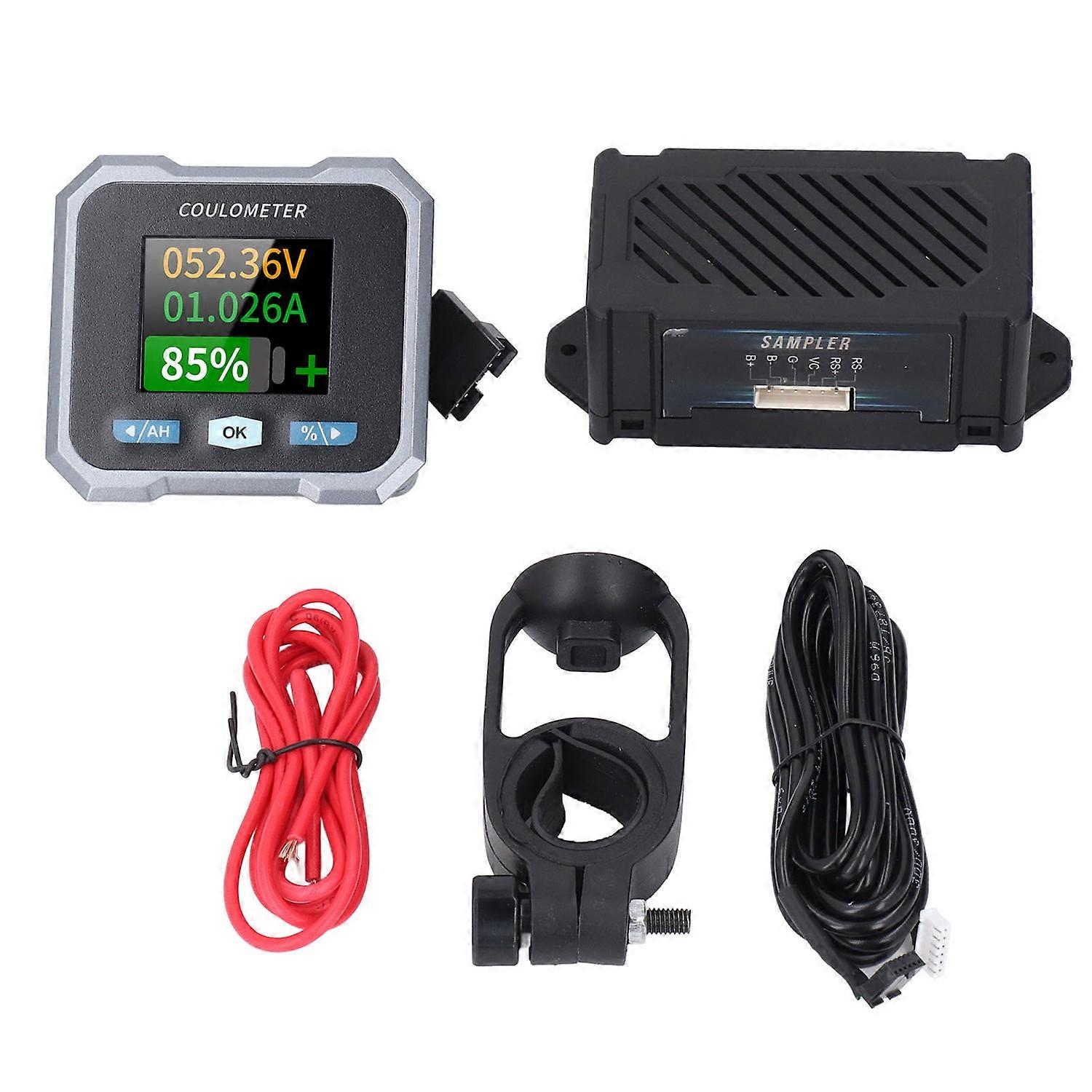

Feature: 1. Measurement Parameters: The battery monitor can measure power, voltage, current, remaining capacity, charging and discharging, expected charging and discharging time, and capacity percentage accurately and reliably. 2. Compatible Battery: This monitor is suitable for acid, lithium iron phosphate, lithium ion, NIMH batteries, and other batteries, and is widely applied in RVs, automobiles, electric motorcycles, and marine batteries. 3. BT Monitoring: Supports mobile phone BT monitoring, with a maximum comm distance of 10 meters without obstacles. After downloading the APP, connect to Bluetooth to view relevant data and support function setting on the APP. 4. Screen and Buttons: The battery tester adopts a 1.8 inch high definition color LCD screen, which has larger text and clearer images. Silicone buttons ensure excellent smoothness, quick response, and comfortable touch. 5. Multiple Installation Methods: The battery monitor is easy to operate and install, supporting embedded installation and bracket installation. The shunt can be installed through its own bracket. The display screen is fixed by a tab. Specification: Item Type: Battery Monitor with Shunt Model: BL110F Screen Size: 1.8 Inch Sampling Mode: Shunt Voltage Measurement Range: 10-100V Voltage Resolution: 0.01V Current Measurement Range: 0-100A Current Resolution: 0.001A Capacity Display Range: 0-100 percent Power Measurement Range: 0-10KW Power Resolution: 0.01W AH Measurement Range: 0-9999AH AH Resolution: 0.1AH Bluetooth Comm Distance: Up to 10m / 32.8ft without obstacles Voltage Accuracy: ±1%+2 words Current Accuracy: ±1%+0.1A Screen Power Consumption: About 0.75W Screen Off Time: Charging: screen off after 20 seconds; Discharging: screen on when I≥15ma, I20s screen off. Package List: 1 x Battery Monitor1 x Sampler1 x 3 Meter Comm Cable1 x 1 Meter Positive Cable1 x Bracket1 x User Manual
