Bistable Flip-Flop Latch Switch Circuit Module Button Trigger Power-Off Memory

$22.95
FREE Shipping

Bistable Flip-Flop Latch Switch Circuit Module Button Trigger Power-Off Memory

Sold by:
  • product image
  • product image
  • product image
  • product image
  • product image
Bistable Flip-Flop Latch Switch Circuit Module Button Trigger Power-Off Memory

$22.95

In stock
FREE Shipping

14-Day Returns Policy

Payment methods:

  • Brand: Unbranded
Product details

Product details

Bistable Flip-Flop Latch Switch Circuit Module Button Trigger Power-Off Memory

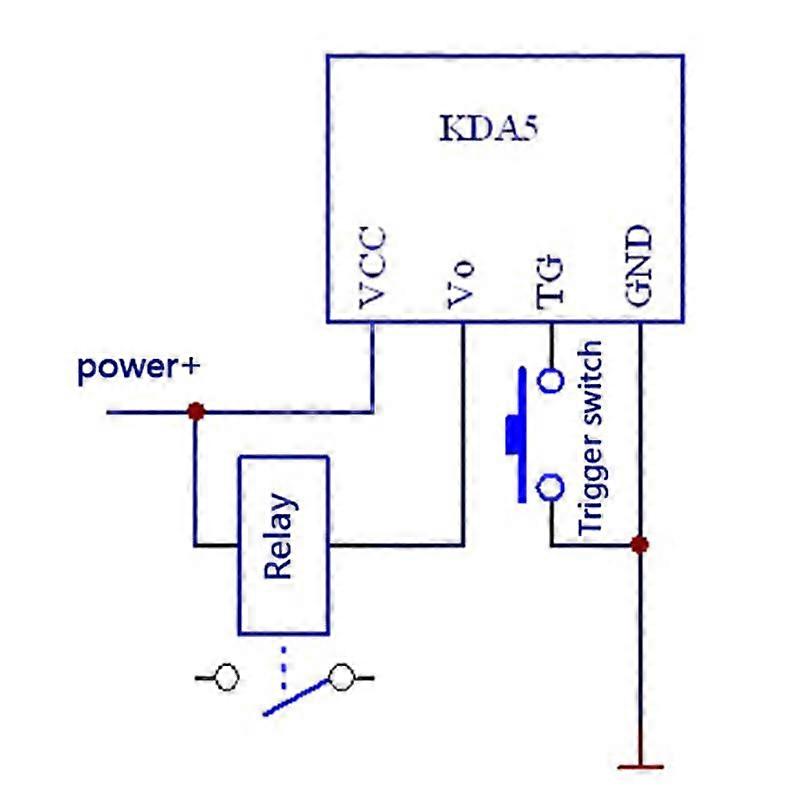

The main purpose is to prevent false triggering of the switch, and the other optional power memory function on again after power electrical output hold state before the power failure. Features: 1. Common Feature: falling edge. Suppose the initial state of the output terminal Vo is open, the trigger once, Vo output terminal goes high once again trigger, Vo output terminal becomes an open state, and so on. 2. Anti-false triggering function: the trigger signal must persist for some time to be effective, time can be freely set between 1s-7s (increments of 1 second). 3. Default electrical output after the initial state is open. Can also be set to power memory function on again after power electrical output hold state before the power failure. 4. Contains a switch contact inputs stabilization circuit, the action is very reliable. 5. Output with protective diode, can be directly connected relays and other inductive loads. Power supply voltage: DC 3V-18V. Quiescent Current: the closed state consumes only 2uA, work state power consumption of about 2mA. Output: 1500mA can directly drive a long time within the resistive load (short can withstand 2500mA current); Purpose: self-locking switch transformed into micro-switches, flashlight switch. Size: free pin size 14mm × 11mm. Pin pitch 2.54mm. Pin definition: VCC: power supply; VO: output; TG: trigger signal input terminal; GND: power ground. Include:1x Module The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
