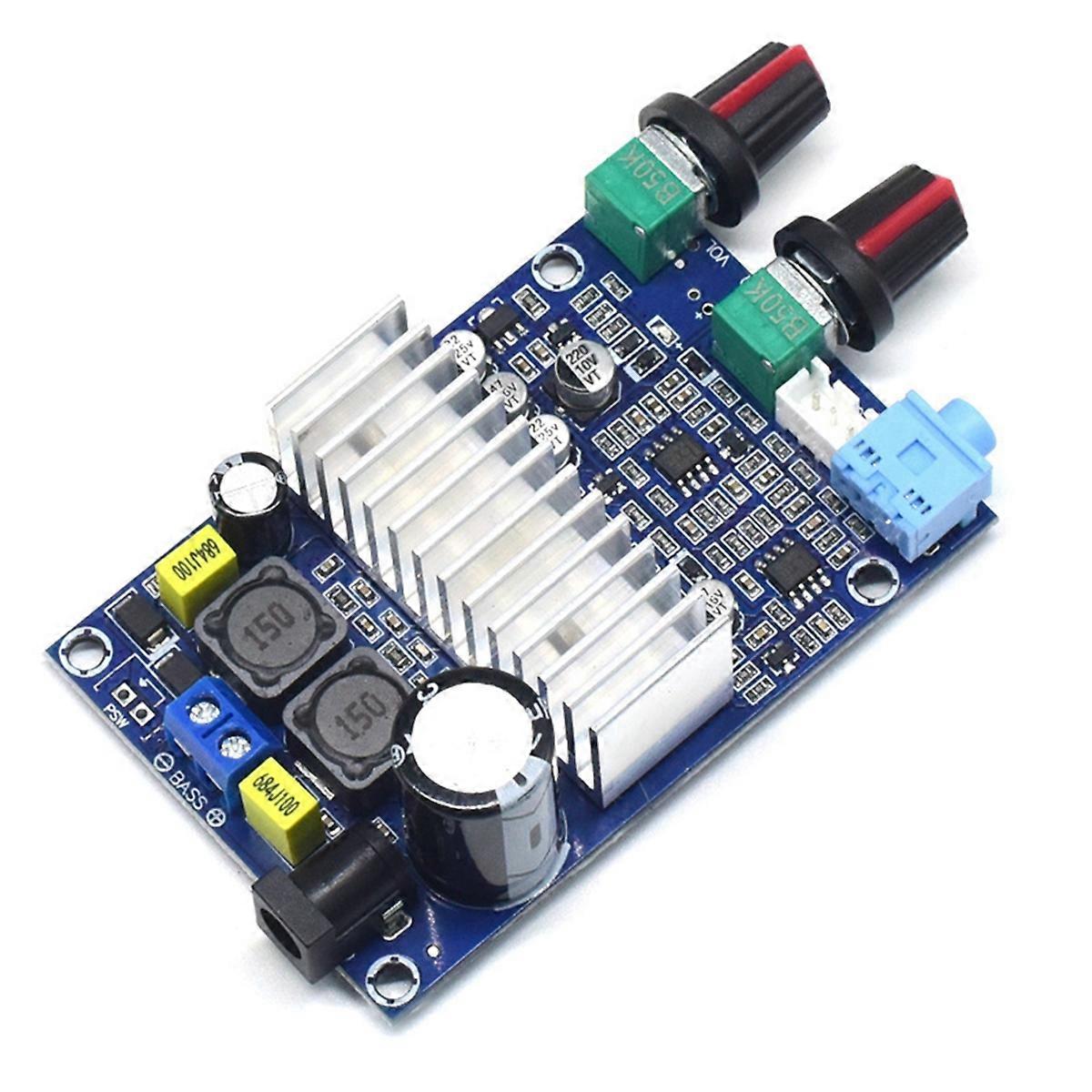

1. This is a power amplifier board with preamplifier, crossover, and volume potentiometer control. It is for the pros who already have 2.0 amplifiers, and the DIY combination is used for 2.1 amplifiers. 2. It is based on TI's TPA3116D2 high performance digital power amplifier chip. 3. Use DC power supply 12-24V power supply, wide working voltage, power-saving design, efficiency up to 90%. Supports up to 100W () channel output. 4. You can use a good performance switching power adapter, notebook switching power supply, or rectified and filtered transformer power supply, you can also use a rechargeable source, or car power supply, etc... 5. Boot anti-shock protection design, there is no popping at boot, please pay attention to the high requirements. The board is a finished board that has been soldered and tested. Connect the speaker according to the picture, and input it with audio input and power. Technical Parameters: Board Size: 55x83x29mm (excluding the protrusion of the potentiometer 15mm) Operating voltage range: DC12-24V (current 2-3A or more, if the power is larger, it is recommended to be 19-24V4A or more) Frequency response range: Input: 20Hz-20KHz Output: 20Hz-180Hz Audio input sensitivity: 500mV Color:As Shown Material:Electronic Component Package Contents: 1 * Numerical work board mockup Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
