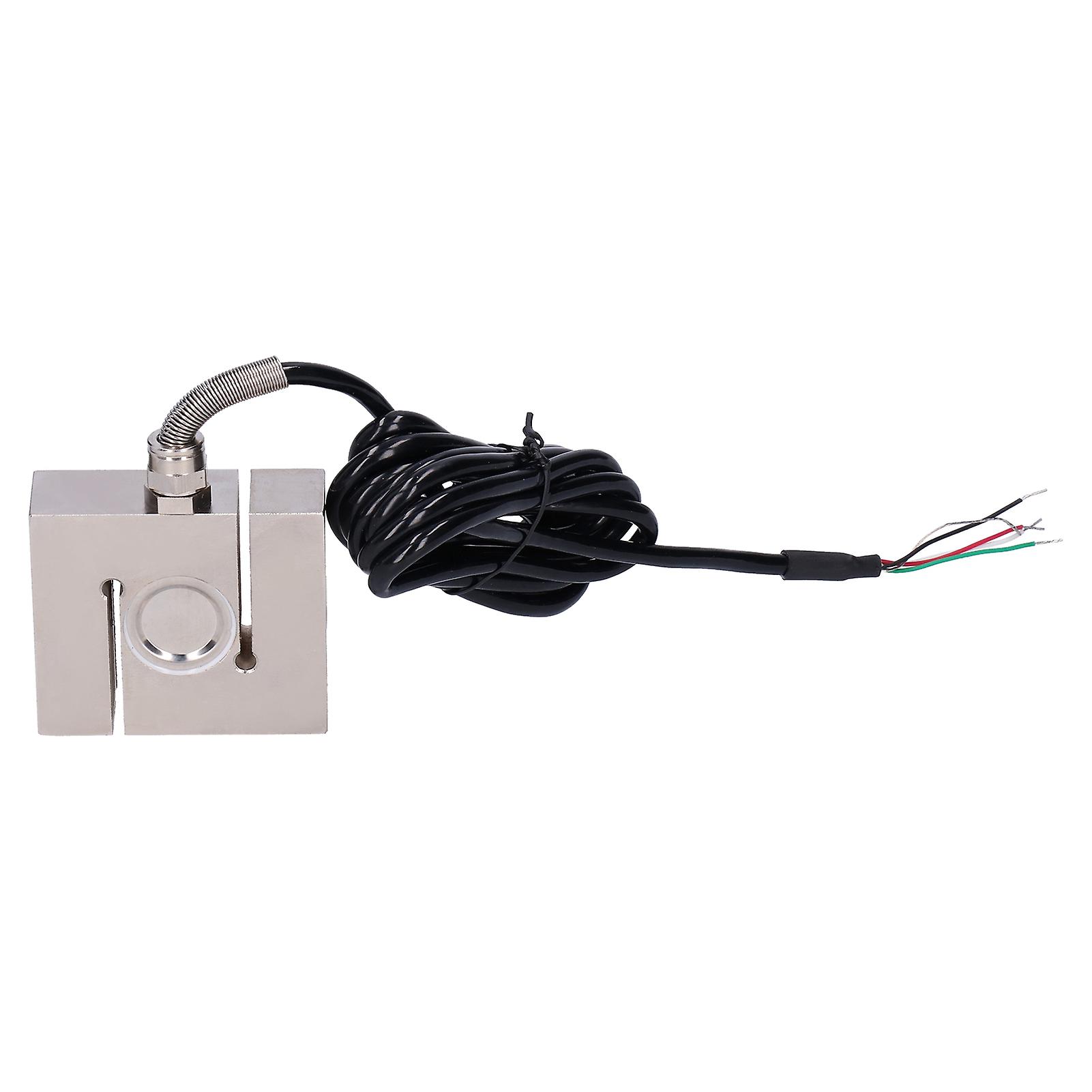

Capteur de force de traction de type S avec câble en acier allié 40Cr DYLY-104 DC 5-15 V (300 kg)

$74.00
FREE Shipping

Capteur de force de traction de type S avec câble en acier allié 40Cr DYLY-104 DC 5-15 V (300 kg)

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
Capteur de force de traction de type S avec câble en acier allié 40Cr DYLY-104 DC 5-15 V (300 kg)

Capteur de force de traction de type S avec câble en acier allié 40Cr DYLY-104 DC 5-15 V (300 kg)

  • Brand: Unbranded
RRP: $99.00
Price: $74.00
You save: $25.00 (25%)
Sold by:
$74.00
FREE Shipping

In stock

We accept the following payment methods

Description

Feature: 1. 40Cr alloy steel possess strong mechanical fatigue resistance, good hardenability, nickel-plated surface with corrosion resistance 2. High accuracy with low temperature drift, two-way tension and compression force measurement, waterproof connector with spring buffer 3. Ex-factory sensors/instruments have been subjected to aging test, durability and quality are guaranteed 4. Widely used for force measurement in industrial systems, mainly for industrial automation measurement and control system for measuring tension and pressure and other kinds of weighing and force measurement 5. Strain sensor, possess excellent performance, good long-term stability Specification: Item Type: Pull Pressure Force Sensor Material: 40Cr alloy steel Model: DYLY-104 Pressure Type: Strain sensor Power Supply Voltage: DC5-15V Output Sensitivity: 2.0mv/v Non-Linearity: ±0.05%F·S Lag: ±0.05%F·S Repeatability: ±0.03%F·S Creep: ±0.05%F·S/30min Zero Output: ±1%F·S Zero Temperature Coefficient: ±0.05%F·S/10℃ Sensitivity Temperature Coefficient: ±0.05%F·S/10℃ Working Temperature Range: -20℃~+80℃ Input Resistance: 350±20Ω Output Resistance: 350±5Ω Safe Overload: 150%F·S Insulation Resistance: ≥2000MQ (100VDC). Package List: 1 x Pull Pressure Force Sensor
