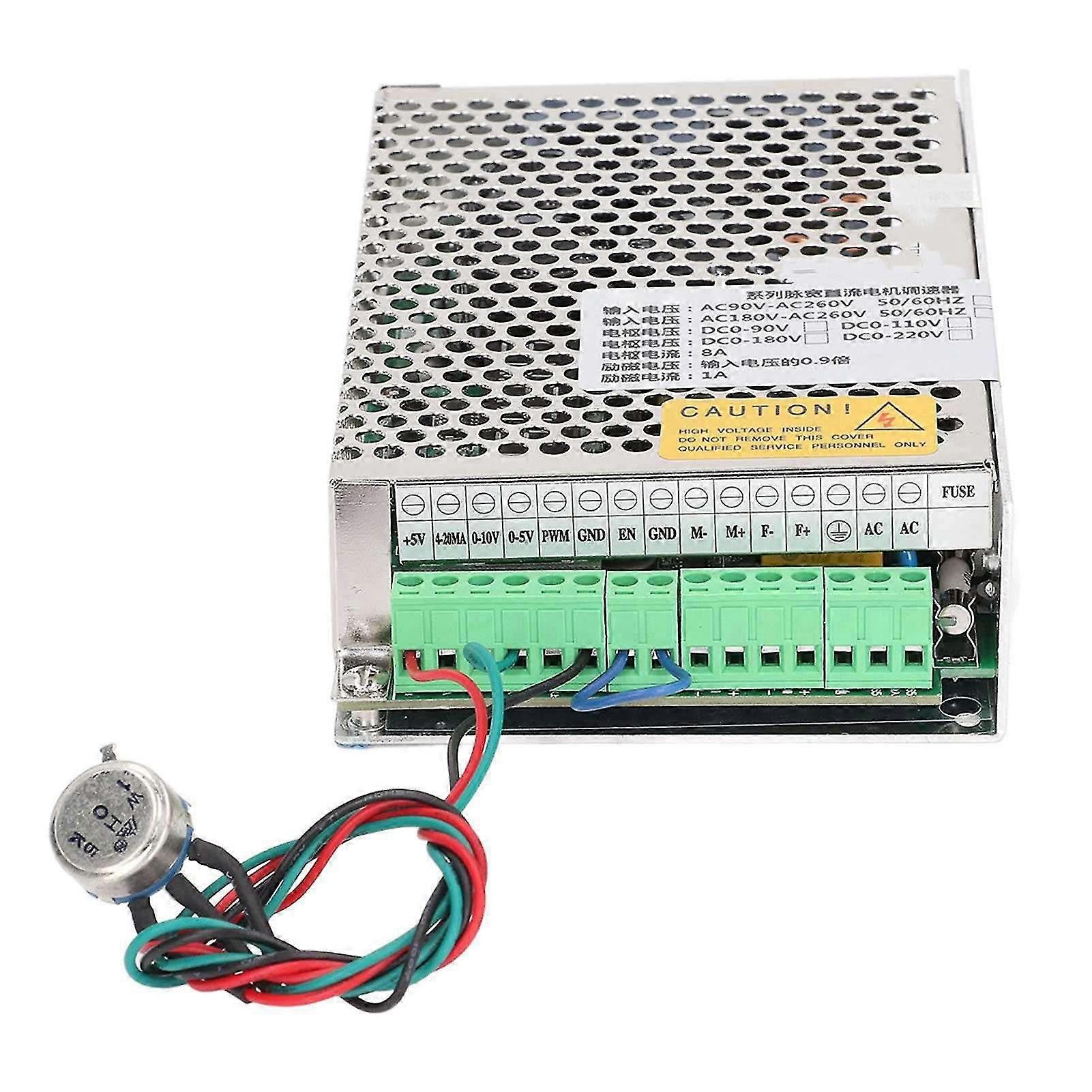

Item Type: DC Motor Governor Material: Aluminum alloy ModelInput voltageArmature voltageArmature currentField voltageField current AC 90~260V-DC 0~90VAC 90~260VDC 0~90V8A0.9 times the input voltage1A AC 90~260V-DC 0~110VAC 90~260VDC 0~110V AC 180~260V-DC 0~180VAC 180~260VDC 0~180V AC 180~260V-DC 0~220VAC 180~260VDC 0~220V 1POWERFUL AND STABLE: Adopt pulse width technology to make the speed more stable, and the force is stronger at low speed 2VARIOUS PROTECTION DEVICE: With short circuit, over current, over temperature protection cut off device, making the performance more reliable 3ELIMINATE EXCESSIVE STARTING CURRENT: DC motor governor come with soft start device to eliminate excessive motor starting current, more stable and reliable 4COMPLETELY ISOLATED FOR SAFETY: High and low voltage signals are completely isolated, making the motor speed controller safer to use 5CORROSION RESISTANT ALUMINUM ALLOY: Made of good quality aluminum material, light weight, possess good strength and good corrosion resistance1. The default PWM signal level is 5V, the signal frequency is above 1KHZ, and the load capacity is above 0.5MA. 2. The 5V level does not need a series resistor to be input in the PWM port, the 10V level PWM is input from the 0?10V port or the series 10K resistor is input in the PWM port, the 12V level series 3.9K resistor is input from the 0?10V port or the series 13.7K resistor input in PWM port, the 24V level string 16.8K resistor input from 0?10V port or string 27K resistor input in PWM port. 3. The product is a DC motor speed controller, which can only be used for DC motor speed control, non switching power supply, and cannot be used for power supply of other equipment. 1 x DC Motor Governor 1 x Knob
