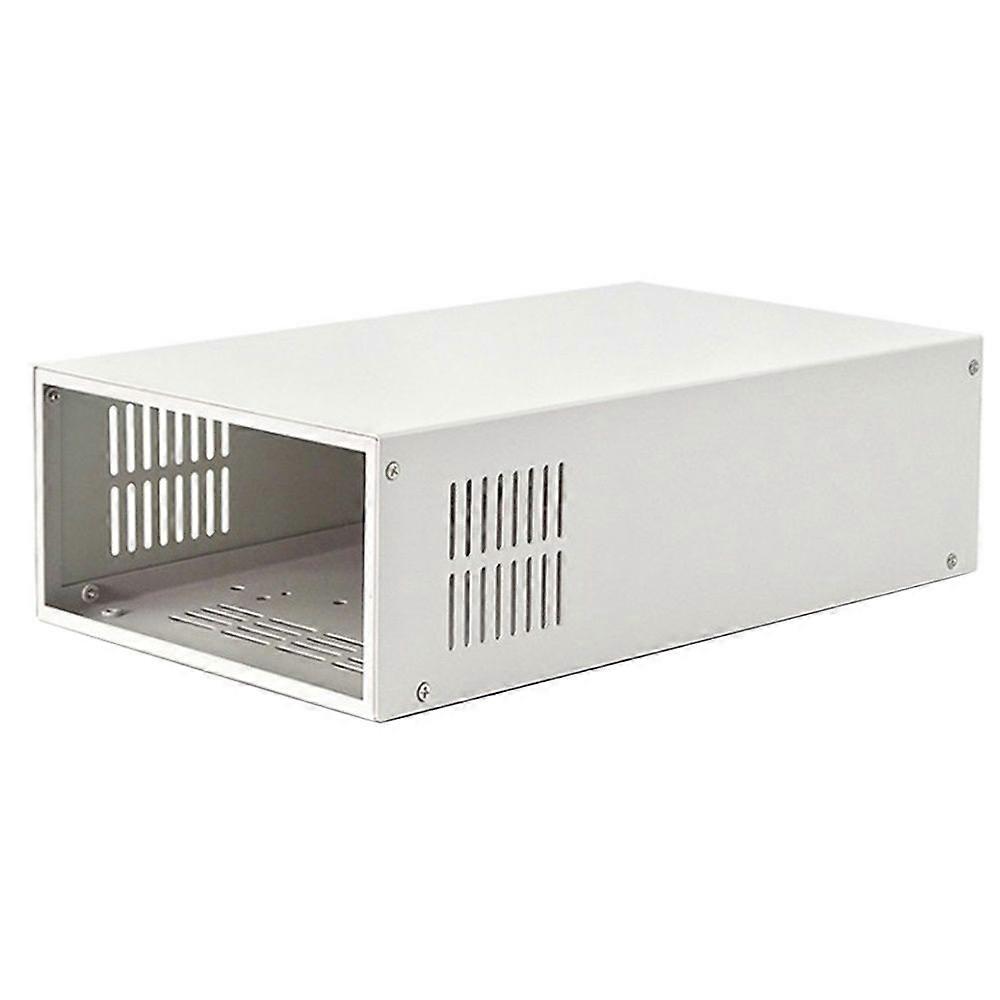

S800 Case Instruction: ATTENTION:Since the assembly process involves voltage that exceeds the human body's safety, non- should not operate, you must do insulation and protective measures during the assembly process, and check the wiring several times for safety, please place the product at a placethatchildren and old people cannot get. Please use the switch power supply we recommend, and if you use other power source, check if the positions of fixing holes are suitable or not. Assembly step Note:The case material is a bit soft and may be slightly deformed during transportation. If there is a space during the assembly, please straighten it before assemble it. Back board assembly: install the rocker switchandAC power socketon the lower board. to switch power supply: (dangerous,non- should not operate) Uselongbrown cable to connect therockerswitch and the live wire (L) of the switch power supply; then useshortbrown cable to connect therockerswitch and the live wire (L) of the AC power socket; Use the blue cable to connect the neutral wire (N) ofAC power socket and the neutral wire (N) of switch power supply; Use a yellow-green two-colorcableto connect the ground wire (E) ofAC power socket and the ground wire () of switch power supply.Use two red cables to connect the IN+ of the green terminal and the positive electrodes (+V), and use two black cables to connect the (IN-) of the terminals and negative electrodes (COM). Install the temperature sensor extension board to the back panel. Assemble the switch power supply:Installthe switch power supply on the lower board colour: creamy-white material: metal Package Contents: 1 x Top cover 1 x lower cover 9 x Connect the wire 1 x Ship switch 1 x Product socket 4 x Anti- mats 11 x tching power supply/pad fixing screw 10 x Fixed screw for shell/product socket Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
