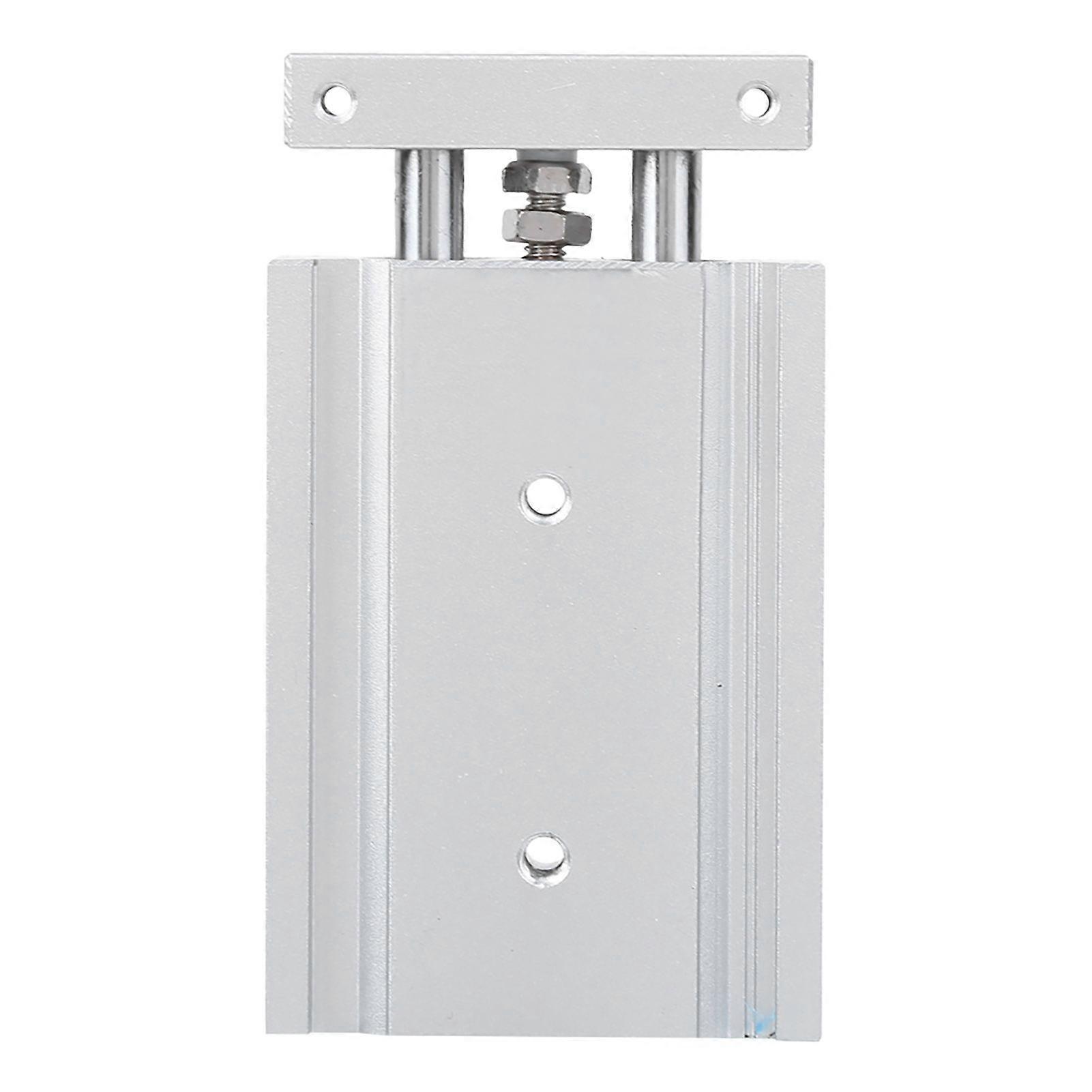

Feature:1. The product has thin double cylinder structure, and it has high nonrotating and accuracy.2. Because the product has two cylinders, so it has 2 times the output force, strong resistance to side load.3. The doublerod cylinder has a variety of itineraries to choose from. It is very convenient to use.4. There are rubbers buffer at both ends,and the use piston speed is 30-800 mm/s.5. The product's maximum working pressure is 1.0 MPa, and the lowest working pressure 0.1 MPa.Specification:Item Type: DoubleRod Air CylinderCylinder Diameter (mm): 10Stroke (mm): 10, 20, 30, 40, 50, 60, 100Fluid: AirAction Mode: Double actingMaximum Working Pressure MPa: 1.0Lowest Working Pressure MPa: 0.1Environment And Fluid Temperature: -10~+60 (not frozen)Buffer: Rubber buffer at both endsUse Piston Speed mm/s: 30-800Structure: Double cylinder (2 times the output force)Lubrication: Not requiredRange Of Stroke Adjustment: Retract stroke 0~ -5mmBearing: Plain bearingPiston Rod Non-rotating Accuracy: 0.1Interface Diameter: M5x0.8.Package List:1 x Air Cylinder
