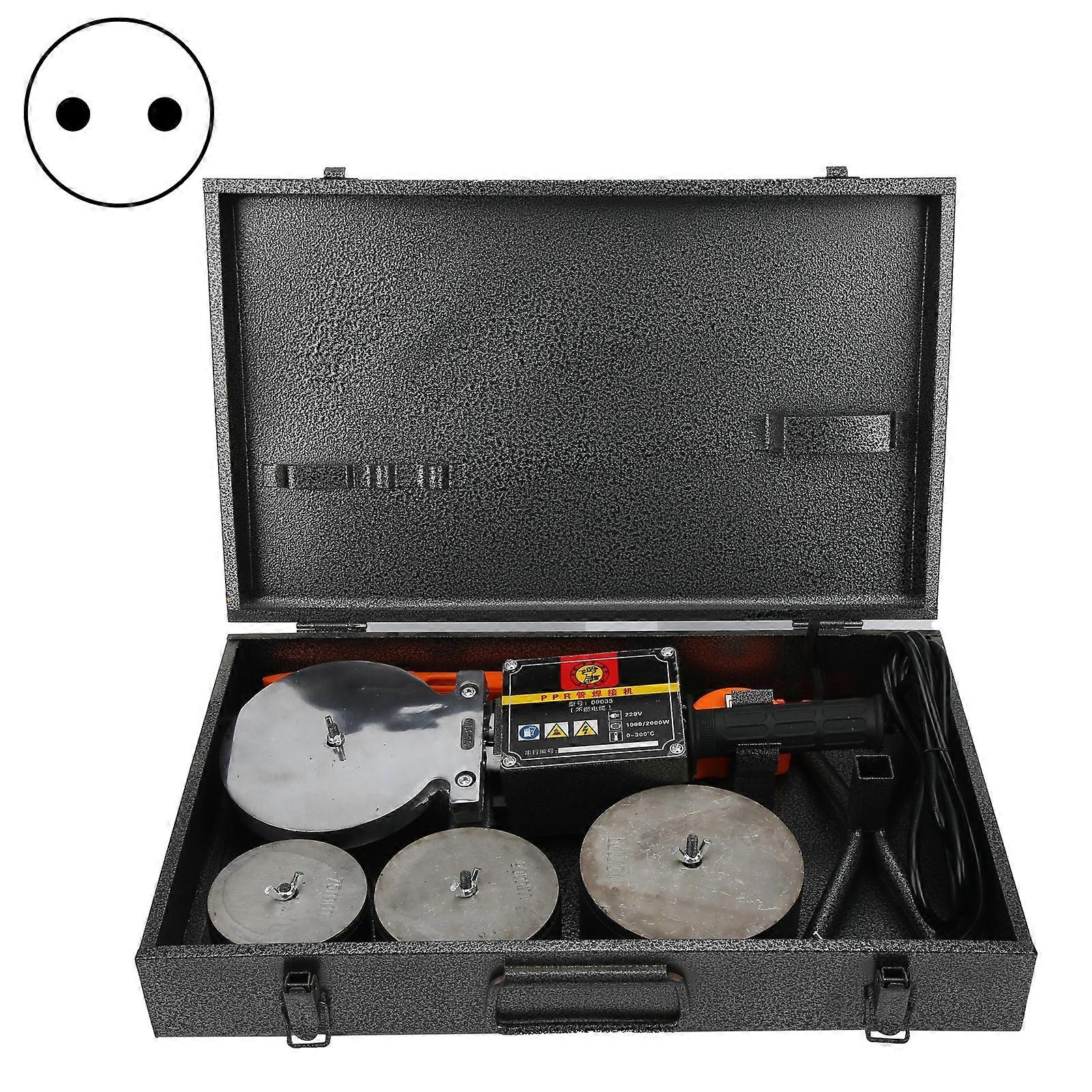

Feature: 1. This product is professionally used for fast welding of pipes such as PPR/PE/PB. 2. Special iron box packaging, special card position design for toolbox, safe packaging and transportation. 3. Enlarge and thicken the panel for long‑lasting temperature storage, the size of the heating panel directly affects the heat storage. 4. The heating panel is made of aluminum alloy, which has long life, good heat preservation and strong mechanical properties. 5. Thicker and heavier die head, not easy to stick to the tube and heat up quickly. 6. Anti-scalding power cord to prevent the panel from accidentally touching the power cord and melting, causing safety hazards. Specification: Item Type: Electric Pipe Welding MachineMaterial: Aluminum alloy, carbon steel Purpose: Professionally used for fast welding of pipes such as PPR/PE/PB Working Voltage: 220VAC Heating Temperature: 0-300℃ Heating Power: 2000W Heating Time: ≤15min Including Die Size: Approx. 75mm / 3in 90mm / 3.5in 110mm / 4.3in Safety Index: Insulation resistance is not less than 1MΩ Leakage Current: ≤2MΩ Environment Temperature: -20-50℃ Relative Humidity: 45%-95%RH How to Use: 1. Fix the machine and heat the mold Put the welding machine on the bracket, install the mold on the machine, and fix it tightly with a wrench. The small mold is usually placed in the front and the large mold is placed in the back. 2. Turn on the power and start operating the welding machine Turn on the power supply (the power supply must have a leakage protector), fix the corresponding mold on the machine according to the size, and then heat the machine. When the red indicator light is on, means the temperature is gradually increasing. If the green light is on, it means the temperature Heating is being stopped. When the red indicator light lights up again, it means that the pipe welding machine is under control, and now the temperature remains unchanged, and you can start working. 3. Welding Cut the plastic pipe vertically with a cutting machine, then put the pipe and pipe fittings into the mold, take the pipe out of the mold when the heating time is reached, and connect the pipe and pipe fittings after the flange is formed.. Package List: 1 x Hot Melting Machine3 x Die Cover3 x Die Base1 x Bracket1 x Screwdriver1 x Level 1 x Tape Measure2 x Gloves1 x Hex Wrench2 x Screw1 x User Manual 1 x Iron Storage Box (additional 4 fastening screws)
