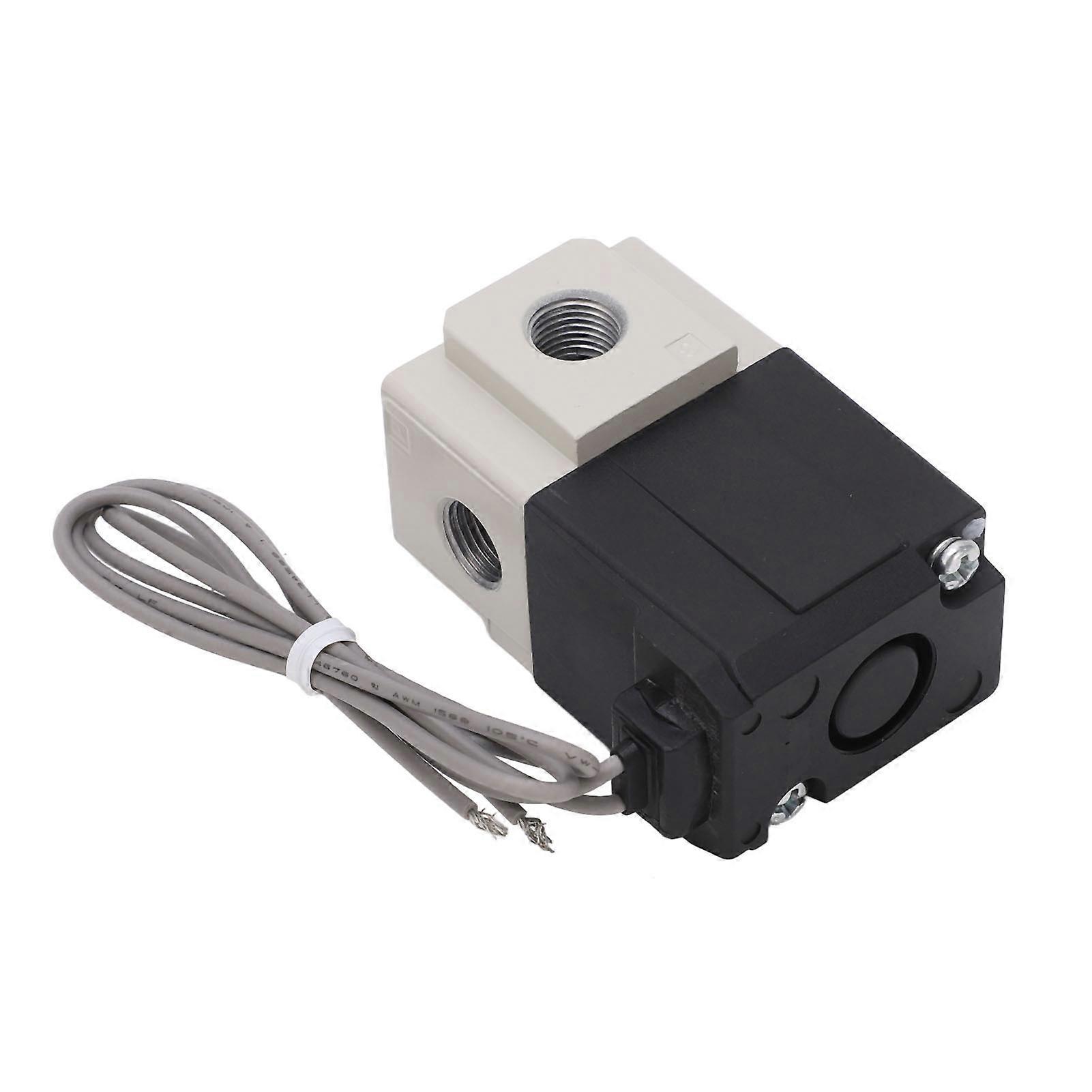

Feature: 1. With Copper Coil: With sufficient copper coil, the solenoid valve is not easy to heat up after long working, and its service life is longer and more durable. 2. Aluminum Material: Aviation cast aluminum valve body, with fine polishing treatment on the surface and on the inner wall, smoother without burrs. 3. Small in Wearing: There is softened oil between the moving parts inside the solenoid valve, effectively reducing the wear between the parts. 4. Good Sealing: Combining premium sealing ring with burr free connecting interface, the electric solenoid valve ensures no leakage. 5. Easy to Install: Designed to have a light weight and a compact size as well, the installation of the solenoid valve is very easy to finish. Specification: Item Type: Electric Solenoid Valve Switching Mode: Direct Acting 2 position single coil. Working Fluids: Air Operating Pressure Range: 0~0.7MPa Ambient and Operating Fluid Temperature: -10℃ ~ +50℃, unfrozen. Response Time: Below 20ms at 0.5MPa. Maximum Action Frequency: 10Hz Oil Feeding: Not required. If necessary, turbine oil ISOVG32 can used for oil feeding. Manual Operation: Non Locking Push Type Installation Method: Free Impact and Vibration Resistance: 150/50m/s². Protection Class: Dustproof Wire Leading Method: Direct leading out DIN socket type. Coil Rated Voltage: AC220V Allowable Voltage Variation: -15% ~ +10% of rated voltage. Power Consumption: 4W. Package List: 1 x Electric Solenoid Valve
