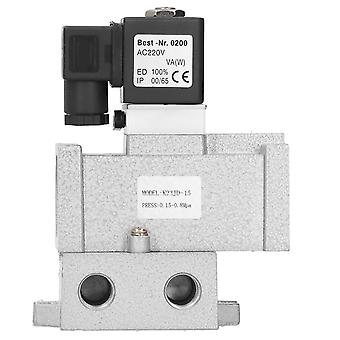

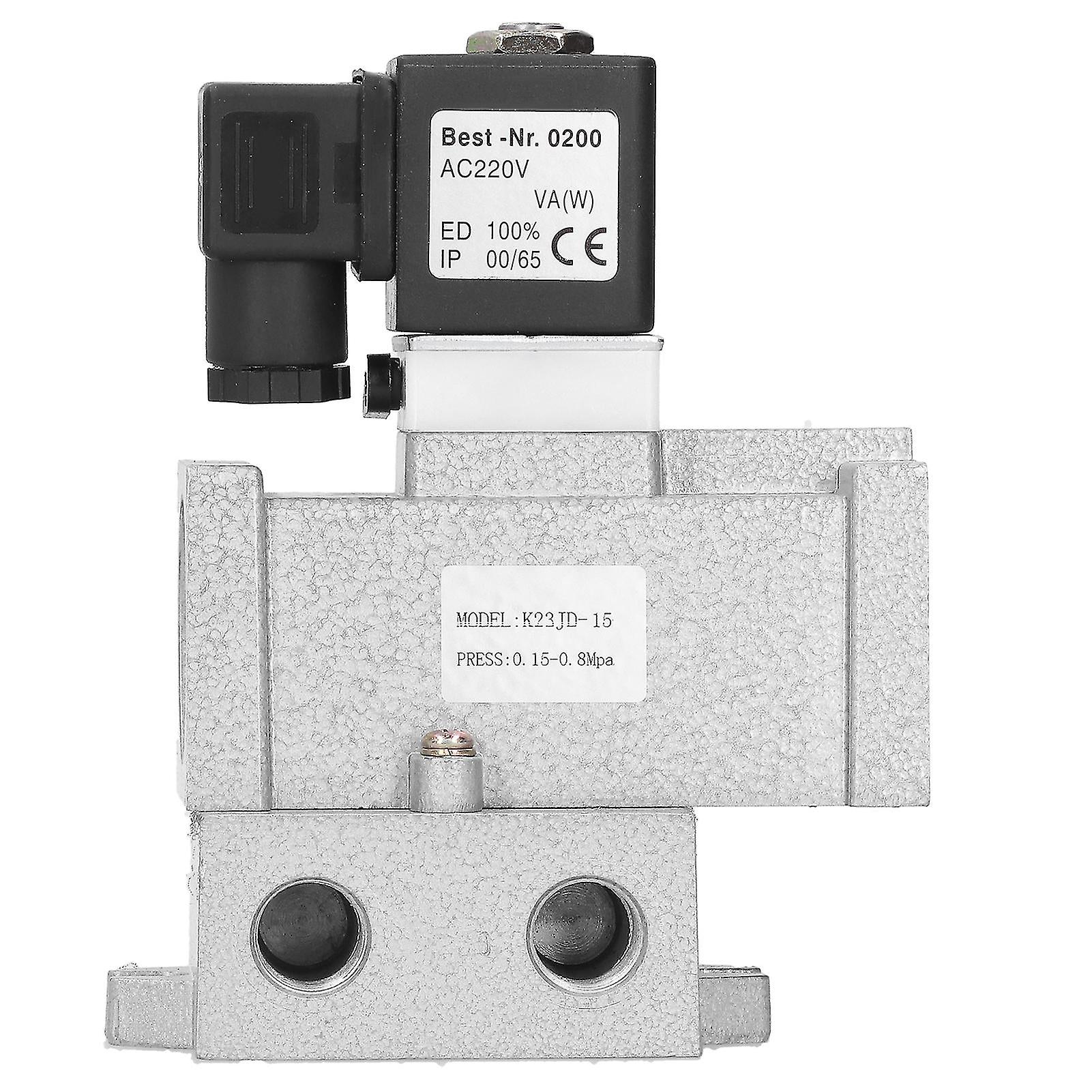

1Thanks to the spacertype spool valve structure it uses, very reliable in performance, 2The product also has many other features, so K series solenoid valves have a wide range of applications in many fields 3There is an automatic compensation function for seal wear in the structural design of the K series solenoid valve 4The product can meet the needs of large flow media, has a larger flow capacity than the Q series solenoid valve. Therefore, K series solenoid valve has become the choice of most users in the working medium with larger flow 5K series solenoid valve has a compact structure, the base plate also uses a takeover structure, which makes installation and maintenance work more convenient Item Type: Electric Solenoid Valve Material: Aluminum alloy Model: K23JD-15 Interface Diameter (inch): G1/2 Pressure: 0.150.8 (mpa) Reversing Time (s): 0.06 Maximum Allowable Commutation Frequency (Hz): 8 Discharge Flow Rate (cm/min): 25 Environmental Temperature (): -5~50 Medium Temperature (): -5~50 Life (thousand times): 1500 How to use:1. The control power line is connected to the junction box of the coil. 2. During debugging or power failure, manual operation can be used (manual switch "0" position is off, "1" position is on). 3. The inside and outside of the pipe must be cleaned during installation, and then the dust cap must be removed. 4. Suitable to disassemble and wash or add some lubricating oil for long storage time or long-term use or unskilled action. 1 x Electric Solenoid Valve
