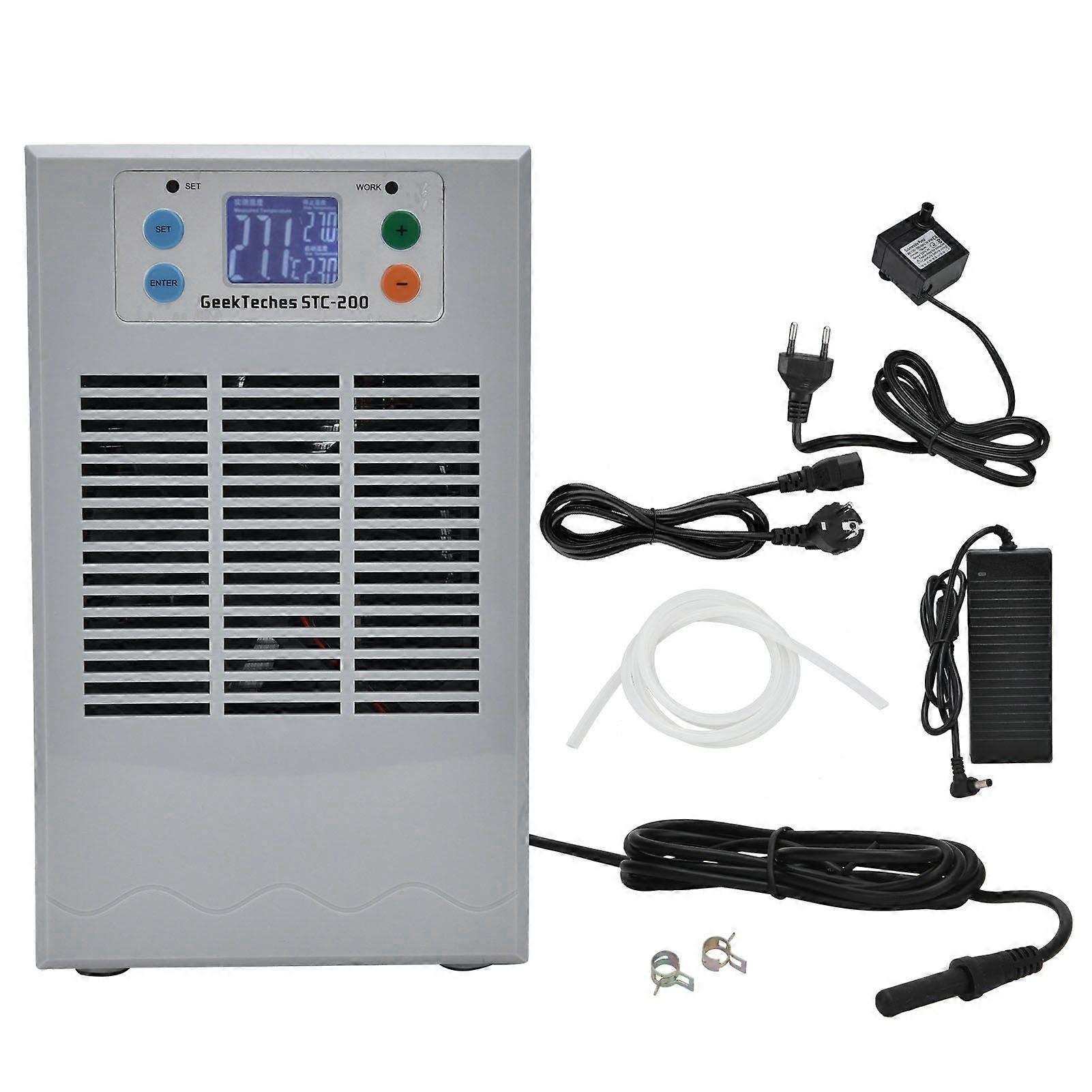

Feature:1. Using semiconductor refrigeration, environmental protection without pollution, helps a lot2. Mute without noise bother, low power design is very suitable for fish tank use, support cooling and heating, very powerful3. Adopt digital display and advanced microcomputer intelligent temperature control technology4. Provide Celsius temperature and Fahrenheit temperature switching function, very practical5. The product can be used for small scale refrigeration and heating, aquaculture and aquariumSpecification:Item Type: Electronic water chillerMaterial: ABS+metalPurpose: Plumbing equipmentModel: STC-200ModelSTC-200 35LRated voltageDC12VPower100WCirculating water pump flow1-3L/minSuitable rangeWater pump vertical lifting height of three meters belowCooling water35LSuitable water pipeInside diameter eight millimeterProduct size(approx.)115 x 110 x 190mm / 4.5 x 4.3 x 7.5inNet weight1.80kg / 4 lb(approx.)The attachmentTwo meters of a water pipe, two pipe buckle, a water pump, a poweradapter, a power lineWater Pipe Connection Operation Procedure: The 2Meter divided into two pipeslength can be determined according to their own use, respectively set tube buckles on the pipe, connecting the inlet and outlet pipe clamp the buckle fixed tightly connected to the pump and the power supply can be used directly.1. Switch on the power, the water began to circulate, and see if there is any leakage.Installation and Use:A. Install the connection as shown in figure.B. Machine and the surrounding space to maintain a distance of more than 20cm, in order to facilitate the flow of heat.C. Transportation, installation, maintenance, please handle with care.Temperature Control Setting Method:SET light into set state, Work light water cooler to enter the working state.SET Set key, ENTER Confirm key, + Heating key, - Cool keyShort press "SET" key (set down the temperature), press the "+" or "-" key, to the appropriate temperature. (set after the "ENTER" key or 10 seconds after the automatic return to the current temperature)Detailed Function Table:1. The normal display state, long press "S" button, display P0, press "S" button, to select the P0-P5each time you press the "S" button, the display shows the cycle increments from PO-P5, press the "E" button to confirm, and then press or button to set the thermostat function.2. As shown in table two.after setting, press "S" key or 10 seconds to return the current temperature automaticallySymbolSignificanceDegrees CelsiusDegreesFahrenheitFactory DefaultP0Refrigeration;heating;coolingmodeC/H/CHC/H/CHCP1Returntemperature0.1~150.1~272P2Correctiontemperature-7~7-13~130P3Time delay(min)0-100-103P4Hightemperature alarm temperature-50~110-58~230110P5Temperaturemodel (degrees Celsius and Fahrenheit)CCCC/FFFFCCCC/FFFFCCCCSensor fault display E1, close all outputs1. This product is shown in the cooling water cooling water temperature is 28 , no high power lights and submersible pumps to the water under the premise of the water temperature can be reduced to 25 or so, the higher the water temperature before cooling, the less the amount of cooling water applied. Cold and warm type cold water machine hot water quantity in the process of making hot water and same as the refrigerating capacity of the refrigerating system.2. The upper temperature limit of this product is 40 , the lower limit temperature of 10 .Danger: Warning: Attention: Operation not in accordance with the specification may be dangerous.If there is a power line or other fault please find professionals to deal with.Such as illegal operation may cause damage to the product.Cleaning and Maintenance: .Package List:1 x Electronic Water Chiller1 x Power Adapter(10A)1 x Water Pump1 x Power Cord Plug1 x Pipe2 x Pipe Buckle1 x User Manual(2 pages)Note:1. Do not use outside the voltage and current range.2. When working, the working indicator is red.3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
