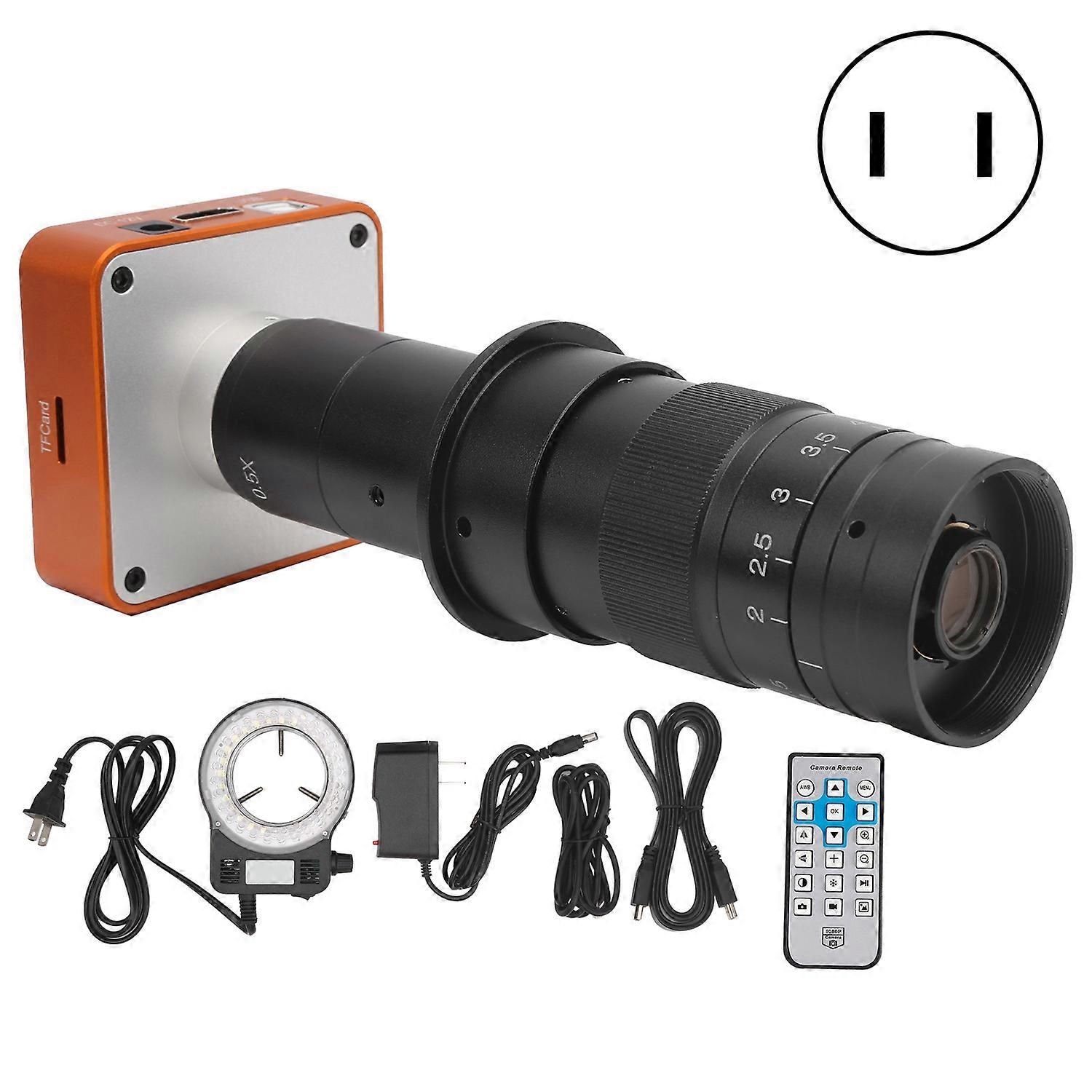

Feature: 1. With 48 million high pixels and high resolution, the image is clear, suitable for observing the microstructure of objects. 2. The camera can display real‑time images directly on high definition multimedia interface monitors, projectors or TVs. 3. This microscope has 56 LED circular lights, which can provide strong and concentrated shadowless illumination. 4. C‑mount lens provides horizontal and vertical mirrors, large working distance and wider field of view. 5. Widely used in the fields of microelectronics, accuracy machinery, jewelry and watches, printing, mobile phone repair and so on. Specification: Item Type: Microscope Material: Aluminum Alloy Model: FHD 48MP Module: 1150 Sensor: 48MP CMOS High Definition Multimedia Interface Size: 1.335μm x1.335μm. Interface: High definition multimedia interface(Type A), USB(Type B), TF card. High Definition Multimedia Interface Image Resolution: 48MP Video Recording Resolution: 2K at 30FPS 1080p at 60FPS High Definition Multimedia Interface Resolution: 1920 x 1080p 60FPS Can be output simultaneously with USB High Definition Multimedia Interface Ratio: Support 4: 3,16: 9,16: 10 screen USB2.0 (Drive Free): 1920 x 1080 at 30FPS; 1280 x 720 at 30FPS; 640 x 480 at 30FPS TF Card: Up to 128GB AWB: White balance color correction/automatic/manual R.G.B value setting independent Exposure: Auto/Manual, AE value can be set Horizontal Lines: 8 lines, color, width, position can be set Scale Mark Line: 2 lines Dotted Line: 2 lines, color, width, position can be set Sharpness: Support Contrast: Support Color Gain: Support Single Negative Film: Support Mirror: Horizontal and vertical mirror Language: English/Simplified Chinese Digital Zoom: Support Infrared Remote Control: Support Adapter Voltage: AC100-240V Voltage: DC 12V Power Consumption: Maximum 0.15W 12V, 0.12A. Lens Interface: C/CS mount Camera Size: Approx. 70 x 70 x 35mm / 2.8 x 2.8 x 1.4in 180X C-MOUNT Lens Working Distance: Approx. 95mm / 3.7in Zoom C-mount lens 0.5X C-mount Adapter Scaling Ratio: 6.5: 1 Objective lens magnification 0.7-4.5 times (approximately 10-180 times on the display) Size: (Length x Inner Diameter) Approx. 180 x 50mm / 7.1 x 2in (180X the maximum working distance: Approx. 11.5cm / 4.5in) 56 LED adjustable compact microscope circular light, provides strong and concentrated shadowless illumination, can change the direction of illumination, and control the strength. Life: 100,000 hours LED Inner Diameter: Approx. 1.0in (27mm) Total Outer Diameter: Approx. 1.77in (45mm) Power Input: AC100-240V, 50-60HZ, automatic switching 100-240V, 50-60HZ, automatic switch Working Distance: Approx. 27-120mm / 1.1-4.7inSolution to the problem. LCD no video or flickering 1. Check the power supply; check whether the red LED light is on, press the power button to make it light up 2. Check the lens cover; check the lens cover, increase the lighting The LCD screen has black bars and the image is distorted 1. Change the resolution of LCD 2. Change the resolution of the camera Stained Check the camera and lens, find dust, and then clean it with absolute ethanol or detergent.. Package List: 1 x Microscope1 x High Definition Multimedia Interface Cable1 x USB Cable1 x Power Adapter1 x LED Light1 x User Manual1 x Remote Control
