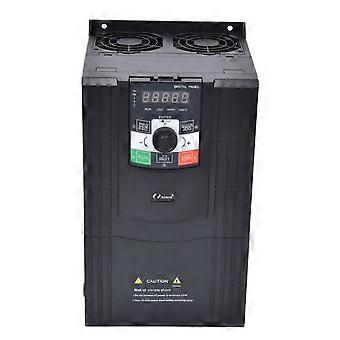

Feature: 1. [HIGH ACCURACY] The 3 phase 380V vector control inverter has high speed stability accuracy, and the carrier frequency range is 1k‑15kHZ. 2. [OTHER FUNCTIONS] With superior magnetic flux braking and current limiting functions to realize the rapid start and stop of the motor. 3. [MOTOR START] Fast speed tracking start that can identify the direction of the motor, realizing the start of the motor without impact. 4. [KEYBOARD USE] The local keyboard can be used for external control, and the non keyboard running status monitoring lamp is added. 5. [WIDE APPLICATIONS] Mainly used in water pumps, CNC machine tools, hoisting machinery, woodworking, ceramics and stone machinery, etc. Specification: Item Type: Frequency Converter Product Material: ABS Product Model: CM530H-D4T011GB/015PB Input Voltage: 3 Phase 380V Voltage Range: -15%-20% Input Current: 26.0/35.0A Output Current: 25.0/32.0A Adapted Motor: 11KW/15KW Control Mode: Open loop vector control (SVC), V/F control Speed Adjustment Range: 1: 200 (open loop vector control) Maximum Frequency: Vector Control: 0-600HZ, VF Control: 0-1200HZ Carrier Frequency: 1k-15kHZ Usage Scenarios: Mainly used in industries such as fans and pumps, petrochemicals, air compressors, extruders, CNC machine tools, hoisting machinery, textile machinery, plastic machinery, woodworking machinery, ceramic machinery, stone machinery and other industries.. Package List: 1 x Vector Inverter1 x User Manual Note: 1. It is not suitable to use the inverter outside the allowable working voltage range specified in the manual, which may easily cause damage to the internal components of the inverter. If necessary, please use the corresponding step up or buck device to transform the power supply and input it to the inverter.2. Do not change the 3 phase inverter in the CM series to 2 phase use, otherwise it will cause a malfunction or damage the inverter.3. Although this series of inverters are equipped with thunder overcurrent protection devices, which have a certain self protection ability against induced thunder, customers should also install thunder protection devices on the front of the inverter for thunder prone areas.
