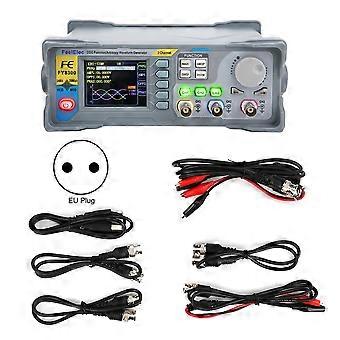

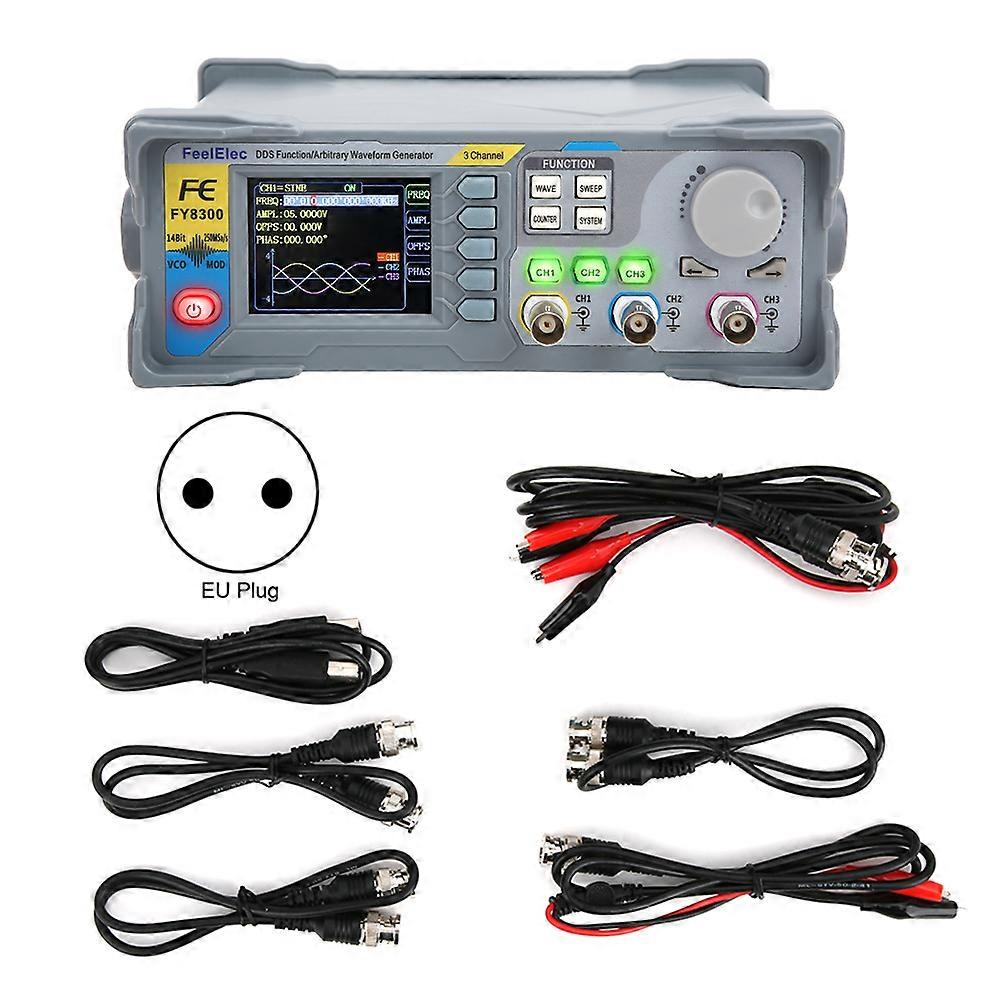

Feature: 1. Completely independent 3-channel output (equivalent to three independent signal sources), capable of working synchronously, with precisely adjustable phase difference 2. Adopt DDS direct digital synthesis technology to produce accurate, stable and low distortion output signal 3. Desktop design with ABS plastic casing, powered by AC 100-240V wide voltage power supply 4. Using 2.4-inch (320 x 240) color display, with stable performance 5. Unique operating interface design, which can display 3-channel output state at the same time 6. Press and hold the OK key during use, you can quickly save the parameter information currently output by the instrument, and the saved parameters can be automatically loaded at the next boot. 7. Standard channel tracking function, when the tracking is on, all parameters of the 3 channels can be updated at the same time according to the user's configuration 8. With 64 groups of arbitrary waveform storage bits, each group has a storage depth of 8192 x 14bits (the longer the waveform storage depth, the more waveform details are saved, and the signal details can be restored with high accuracy) 9. With digital signal output function, can realize any CMOS level with amplitude of 0-12V 10. All parameters can be calibrated by internal procedures 11. Equipped with powerful arbitrary waveform editing function as standard, it can be downloaded to the instrument output waveform after editing arbitrary waveform on PC 12. Powerful communication function, which can be controlled by PC 13. Large-scale integrated circuits, surface mount technology, high reliability and long service life 14. Output short circuit protection, all signal output terminals can work more than 60S under load short circuit Specification: Item Type: Signal GeneratorOptional Style: FY8300-10M, FY8300-30MMaximum Output Frequency: 30MHz (sine wave) Sampling Rate: 250MSa/s Vertical Resolution: 14bits Frequency Accuracy: 10-6 orders of magnitude Full Range Frequency Resolution: 1uHz (0.000001Hz) Output Amplitude: Maximal, 24Vpp Amplitude Resolution: Minimum, 1mV (0.001V) With -12V ~ + 12V DC bias function (<20MHz), resolution can reach 1mV The duty cycle of both channels can be adjusted independently, and the adjustment accuracy can reach 0.01% Pulse wave pulse width and pulse frequency are continuously adjustable, the adjustment range is 20ns-1S The pulse amplitude can be continuously adjusted between 0-12V, and the adjustment accuracy is 0.001V The phase adjustment range of the three channels is 0 ~ 359.99°, and the adjustment accuracy is 0.01° No Range Limitation: Full range frequency without binning, direct digital setting Scanning Function: Four Attributes of The Signal: Frequency, amplitude, offset, and duty cycle can be scanned separately. It has two scanning modes, linear scanning and logarithmic scanning. The scanning time can be up to 999.99S. Storage Characteristics: Can store 20 groups of instrument state parameters set by the user, which can be recalled at any time 100M Frequency Meter Function: It Has Four Measurement Methods: Frequency measurement, period measurement, positive and negative pulse width measurement, and duty cycle measurement. The maximum measurement frequency of the instrument can reach 100MHz, and the minimum measurement frequency is 0.01H Counter function Can Output Up To 98 Groups Of Functions / Arbitrary Waveforms, including 34 preset waveforms and 64 user-defined waveforms. . Package List: 1 x Signal Generator1 x Host Power Cord 3 x Clip Wire3 x BNC-BNC Cable 1 x USB Cable
