Generator Controller Automatic Start Module for DSE501K, 15305V Wide Voltage Range Control Panel

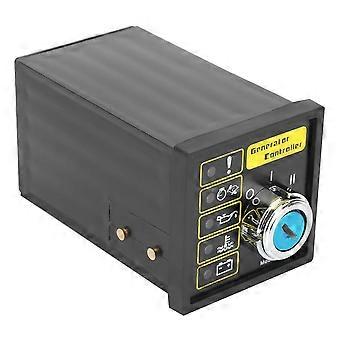

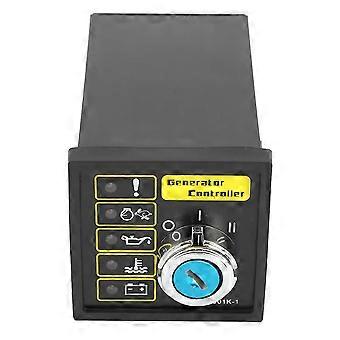

DSE501K Generator Electronic Controller Start Module Control Panel Overview The DSE501K is an electronic generator controller and start module designed to manage automatic start, stop, and basic control functions for AC generator sets. It accepts an AC sensing input range of 15305V AC, making it compatible with a wide variety of alternator and auxiliary supply systems. Key benefits Wide AC sensing range: 15305V AC input supports compatibility with many generator alternator outputs and auxiliary AC supplies, reducing the need for additional sensing transformers. Simplifies generator control: Provides automated start and stop functions to streamline standby, prime, and test operations. Easy integration: Designed for panel mounting and integration into existing control systems, enabling straightforward replacement or upgrade of basic start modules. Reliable basic control: Focused functionality for dependable start module performance where a compact electronic controller is needed. What it does Monitors AC supply within the 15305V AC range and initiates start or stop commands based on control logic. Serves as the central start module in a generator control panel, coordinating engine start sequence and shutdown commands. Provides a single, dedicated control point for basic generator automation tasks. Compatibility and fit Voltage compatibility: 15305V AC sensing input suitable for a broad range of generator alternators and AC auxiliary supplies. Intended use: Designed for integration into standard generator control panels and systems that require an electronic start module. Interfaces: Works with generator systems that accept external start/stop control modules and standard control wiring. Performance and construction Electronic control module for consistent start/stop operation. Intended to perform reliably across the specified AC sensing voltage range. Designed for panel installation as part of a generator control assembly. Use scenarios Backup power for commercial or small industrial buildings: Use the DSE501K as the start module in a standby generator control panel to automate start on mains failure and orderly shutdown on mains . Construction and rental generator sets: Integrate the DSE501K into portable or fixed generator panels to provide dependable automatic start and stop during site power cycles and maintenance testing. Agricultural or remote installations: Pair the controller with generators in remote locations where automated engine starts and stops reduce manual intervention. Technical summary Model: DSE501K Function: Electronic generator controller and start module for control panels AC sensing input range: 15305V AC Notes for installers Verify system wiring and control inputs match the module requirements before installation. Ensure the controller is mounted and connected according to the host control panel layout and electrical standards for the specific generator system. The DSE501K provides a focused, voltageflexible solution for basic automatic start and stop control in generator control panels where a dedicated electronic start module is required.
