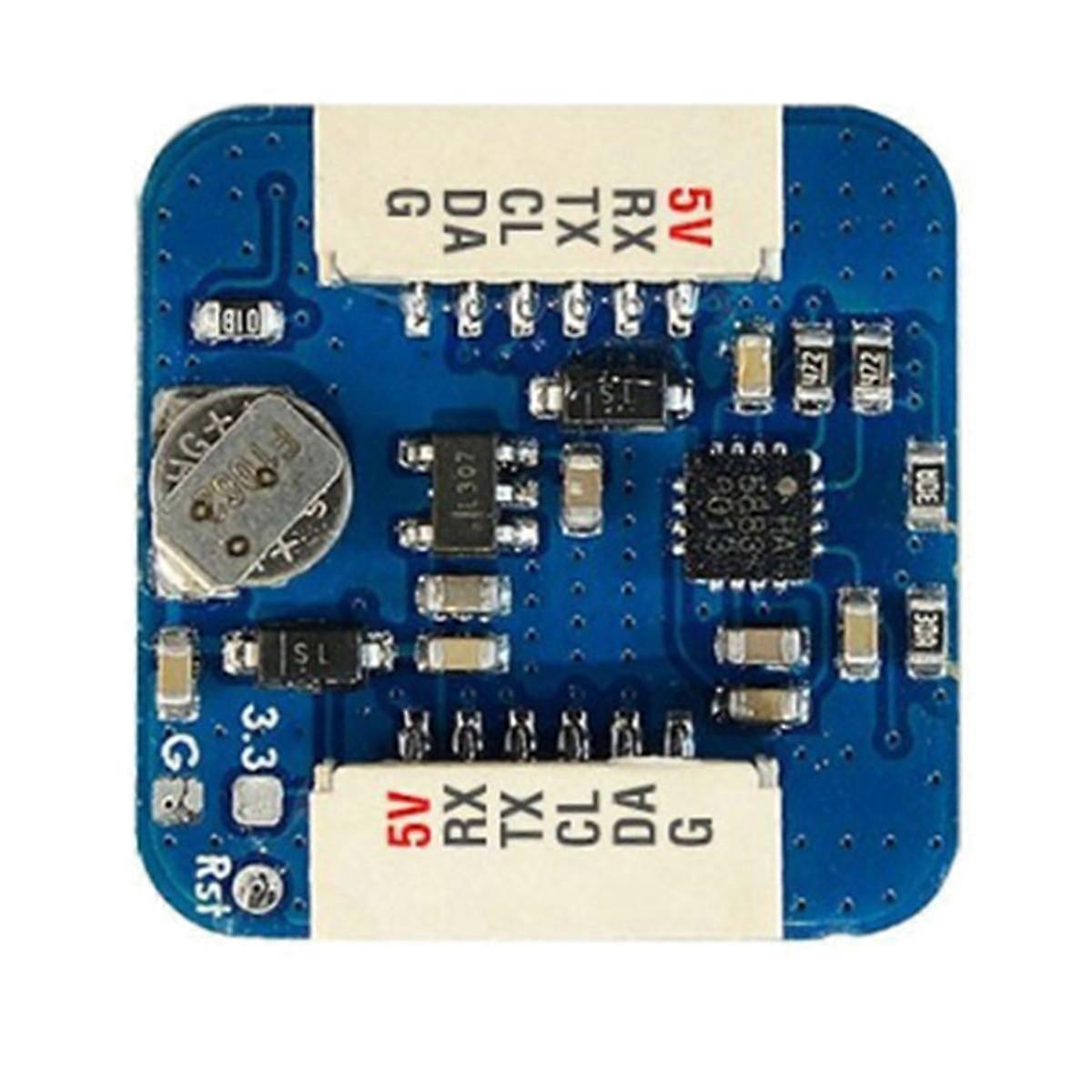

M10Q-5883 uses multi-constellation GNSS module powered by M10 series The GNSS module features the M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals. It supports concurrent reception of four GNSS (GPS, GLONASS, , and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios. The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation. GNSS M10 series (GPS, GLONASS, and BeiDou) Magnetic Compass QMC5883L Patch antenna: 15x15x4mm Input voltage range: 4-9V (5V pad/pin) Power consumption: 13mA UART baudrate: 9600 default Operating Temperatures: -20-80 C UART(TX, RX) interface for GNSS I2C(DA, ) interface for Compass QMC5883L JST--6P connector (SM06B--TB).1.27mm pitch GNSS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix) Protocol: UBX() 5Hz GPS+GAL+BDS B1C+GLO or NMEA 1Hz M10Q-5883_step.zip Due to different product batches, the appearance , which does not affect the use Colour:As Shown Material:PC Package Contents: 1 x M10Q-5883 1 x JST--6P to JST--6P 20cm silicon wire Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
