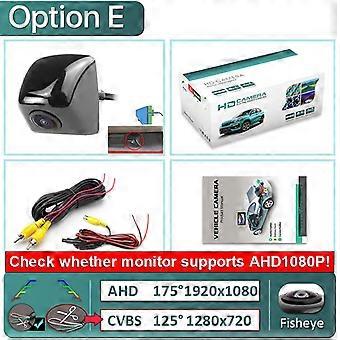

5 Cameras Optional Tips, About E options: Please check whether the Android unit supports AHD1080P camera! If AHD1080P cannot be selected, AHD1080P cameras are not supported! Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P Cameras with CVBS video signal is universal for all monitors, but AHD will only work with AHD monitor! How to check whether the Android unit supports AHD camera? Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD Tip: Installation method (vertical) 170 View Angle (Option D, E) Real 170 wide viewing angle. the display looks like fisheye, gla lens, with a wide field of vision, dangerous blind spots are a thing of the past. 1280*720P Top Starlight Night Vision (Option D, E, ) Low-light Level Night Vision, 15m visible distance for night. Exclusive military low-light camera, the industry's most cost-effective camera, excellent night vision effect, le interference, special shielding, the best quality camera! 2020 AHD Camera, Analog High Definition Technology (Option D,E) AHD1080P / AHD720P Optional If AHD1080P cannot be selected, AHD1080P cameras are not supported! Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction. zero-delay front-end data is not encoded and compreed to the back end, full real-time, high fidelity Highly integrated AHD front-end chip, high-definition quality products. Support video signal control AHD/CVBS (Option D, E) Through signal control, it can support CVBS and AHD displays. D camera ( AHD )+( 1280x720 )+( 170 ) Cut the white cable( CVBS )+( 1280x720 )+( 170 ) E camera ( AHD1080P )+( 1920x1080 )+( 175 ) Cut the white cable( CVBS )+( 1280x720 )+( 125 ) Support parking reference line switch on/off (Option A, B, D, E) Some monitors come with a parking reference line that coincides with the camera's reference line and interferes with the line of sight. Support Intelligent Dynamic Trajectory (Option C) Not need CANBUS or OBD interfaces, camera built-in reversing Tracks module, just connect the power. Not support steering wheel control. Adjust the track automatically according to the moving position and speed of car body and angle, help you make parking easier. 155 wide viewing angle. Support Waterproof Display effect Package list 1. Rear view camera (Vertical installation) 2. Package box 3. 6m Video cable 4. Power cable 5. Manual Installation Diagram Tip: If your monitor is android stereo radio, you need to connect the 6M cable's red trigger wire "A" and "B": "A" connect reverse lights power DC 12V+. "B" connect to radio trigger wire.
