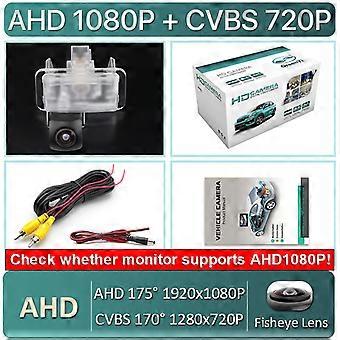

GreenYi HD AHD 1080P 170 Degree Fisheye Lens Vehicle Rear View Camera For Toyota Corolla 2014 * AHD technology is High-definition video signals, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.* Highly integrated 2053HD chips, Max HD 1080P Pixel. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity. * The Camera support both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.* Chips components : HD Sony/OV2053HD* Viewing angle: 155~175 Degrees Visible Range . * Effective pixels : CVBS:1280x720P (NTSC), * AHD: 1920x1080P (PAL) or 1280x720P (NTSC).* Signal format: NTSC or PAL* Image resolution: 92W/200W pixels* Video output: AHD Video Signal or CVBS Signal .* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation * Lens : 14/16MM Fisheye 6 glass Lens .* Waterproof : IP68 / IP69* Working power supply: DC12V~24V, 2A* Working temperature: -30 C ~ +70C* Maximum power: 3WTip: 1. Because there may be slight differences between cars produced in different countries, please check the size before buying.2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables.(The trajectory camera only supports AHD video signal)3. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.For Toyota Corolla 2014Dear customer,Please must check the camera size and appearance before place a order, see if can match your car license plate lamp placesize and appearance???Because the same car modelin different countries may have some difference, please check the camera size and compare the installation of your car carefully to avoid mistake.
