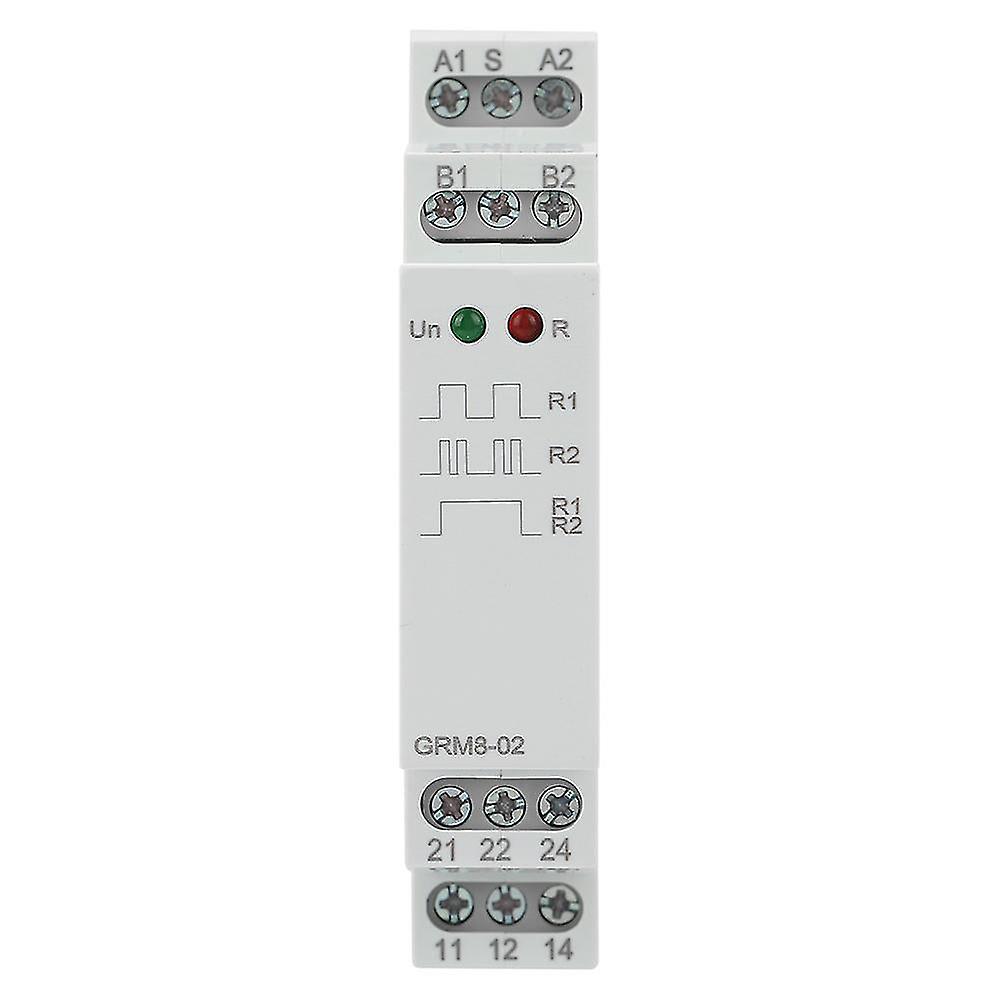

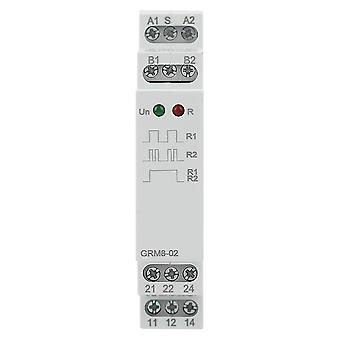

Grm8-02 Electronic Impulse Relay Latching Relay Memory Relay Ac 230v

$94.00
FREE Shipping

Grm8-02 Electronic Impulse Relay Latching Relay Memory Relay Ac 230v

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
  • product image
Grm8-02 Electronic Impulse Relay Latching Relay Memory Relay Ac 230v

Grm8-02 Electronic Impulse Relay Latching Relay Memory Relay Ac 230v

  • Brand: Unbranded
Price: $94.00
Sold by:
$94.00
FREE Shipping

In stock

We accept the following payment methods

Description

1This impulse relay can achieve multi point control by impulse commands. 2Relay working status is indicated by LED indicators. 3With small volume, only 18mm width, 35mm DIN rail mount. 4Simple structure, easy to wire and mount. 5Stable performance, long service life. Features: 1.This impulse relay can achieve multi point control by impulse commands.2.Relay working status is indicated by LED indicators.3.With small volume, only 18mm width, 35mm DIN rail mount.4.Simple structure, easy to wire and mount.5.Stable performance, long service life.Specification:Model: GRM8-02Power terminal: A1-A2Rated power supply voltage: AC 230V(50-60Hz)Power consumption: AC max12VA/1.9WSupply voltage tolerance: -15%; +10%Power indicator: Green LEDControl terminal: A1-SMax. connection number of neon lamp: 75pcs(0.68mA/230VAC)Control signal width: Min. 25mmOutput contact: 2 x SPDT, 16A/AC1, 250VAC/24VDCMinimum switching power: 500mWOutput indication: Red LEDMechanical life: 1x107Electrical life(resistive load): 1x106Reset time: Max 200msWorking temperature: -20~55Mounting method: 35mm DIN railMounting altitude:2000mWiring capability: 1x2.5mm2 or 2x1.5mm2Dimensions: 90*18*64mm / 3.54*0.71*2.52inWeight: Approx. 96g/3.4ozPackage List:1 * Electronic Impulse RelayNote: 1.Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.2.Please allow slight error due to manual measurement. Thanks for your understanding.
