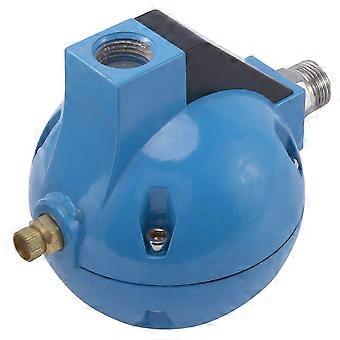

<p>This compressed air condensate automatic drainer is a mechanical automatic drainer which has casting aluminum alloy and inside float ball drainage system.Drainer outlet is closed when drainage buoyancy is smaller than floating ball weight plus compressed air pressure; and it will open when buoyancy increases, in order to drain condensed liquid.</p> <p>This compressed air condensate automatic drainer is significantly different from traditional mechanical automatic drainer, which is belong to continuous drain.</p> <p>Metal powder coating surface, resistant to corrosion.</p> <p>Automatic drainer is extremely reliable in operation, no electricity needed, no noise, no loss of compressed air.</p> <p>Drainer has big drainage outlet that is not easily blocked; it is a and great choice of compressed air equipment drainer.</p> <p>Temperature of Media:Normal Temperature</p> <p>Media:Water</p> <p>Power:Pneumatic</p> <p>Model Number:Float Drain</p> <p>Pressure:Medium Pressure</p> <p>Structure:Control</p> <p>Actuator Mode:Without Manual And Instruction</p> <p>Thread Type:BSP</p> <p>This is a quite stable drainer which has great performance and low failure rate.</p> <p>Model: HAD20B</p> <p>Port Size: Inlet=Outlet=1\/2BSP</p> <p>Max. Pressure: 20bar</p> <p>Max. Temperature: 100 Celsius</p> <p>Max. Capacity: 400L\/H</p> <p>Weight: 602g(.)</p> <p>Instruction:</p> <p>Before installing this drainer, please use compressed air to remove impurities in the piping till it is completely clean.</p> <p>Install this automatic drainer beneath the drainage device of equipment, otherwise condensate will be filled and affect drainage.</p> <p>Maintenance</p> <p>Inspect the drainer once a week.</p> <p>Operation : open manual drainer valve to drain water till compressed air in equipment enter the drainer, after a few seconds then closed valve.If drained water is more than 0.5 liters, there is a blockage and drainer need to be cleaned completely.</p> <p>Internal parts should be taken out and cleanedeach year.When cle, you can use soap water or dish-washing liquid to clean, do not use solvents, so as not to damage the rubber fittings.</p> <p>colour:blue</p> <p>Material:Metal</p> <p>size:15*11cm</p> <p>Package Contents:</p> <p>1 * Drain Valve</p> <p>Only the above package content, other products are not included.</p> <p>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.</p>
