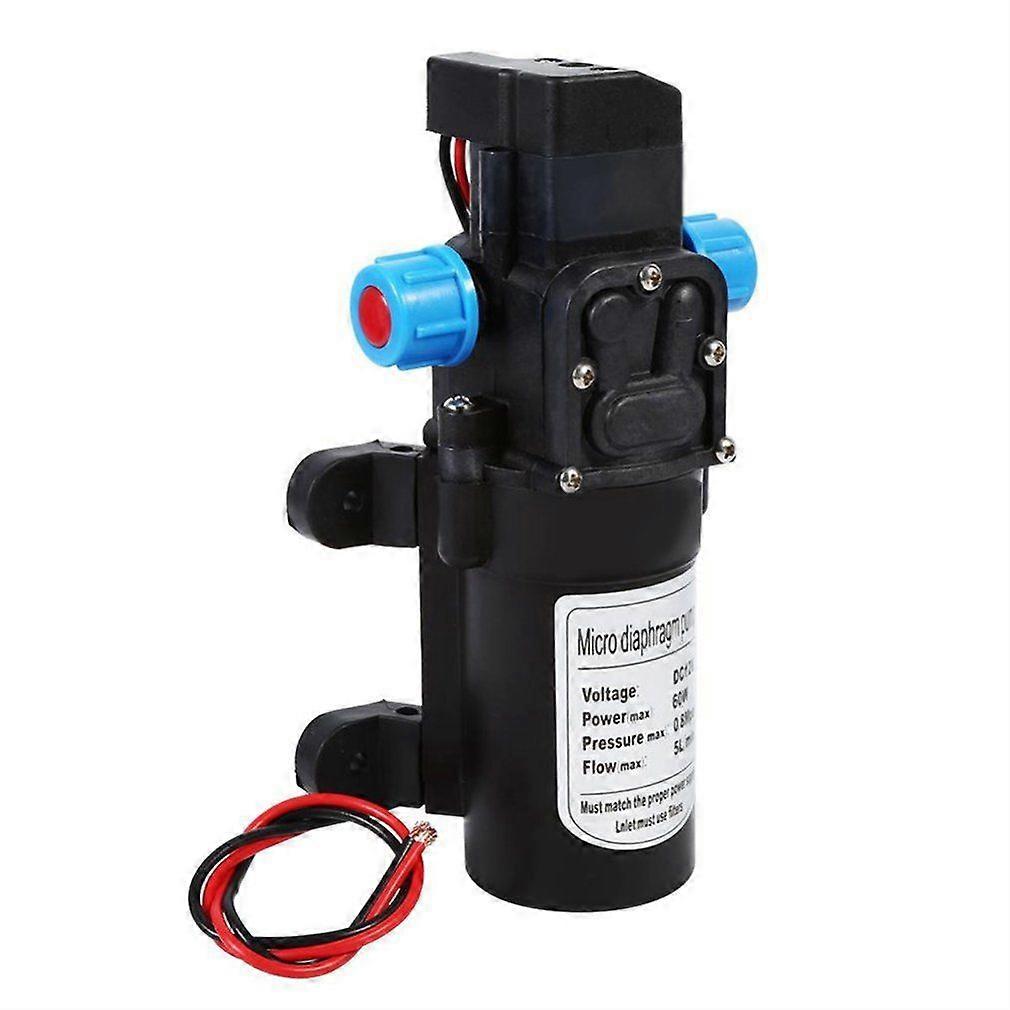

Overview This water pressure diaphragm pump is extremely efficient, consumes little energy, offers a high flow rate, and is environmentally friendly. It is designed to automatically stop when the water outlet pressure is sufficient and restart when the pressure decreases. Technical Specifications Voltage: 12V DC Power: 60W Flow Rate: 5L/min Maximum Working Pressure: 116psi (0.8MPA) Suction Lift: 1.5m Pump Lift: 50m Dimensions: Approx. 9.9 x 16.7cm Tube Length: Approx. 29cm Interface Outer Diameter: Approx. 10.5cm Interface Inner Diameter: Approx. 6.5cm Package Weight: 688g Compatibility and Accessories The inlet and outlet ports are compatible with PE or PU silicone hoses. Ideal for garden sprinklers, shower heads, and faucets on vehicles such as boats, motorhomes, and caravans, as well as agricultural applications such as chemical spraying. Installation The pump can be installed in any orientation. Please ensure the direction indicated by the arrow on the pump matches the outlet. The wires are non-polarity, simplifying installation. Intended Use The pump is designed for energy-efficient applications requiring frequent starting and stopping, such as supplying water to a solar system or washing machine. Avoid leaving the pump running dry for long periods. Additional Information Do not immerse the pump in water. Do not pump strongly acidic or alkaline liquids. Regularly check electrical connections and ensure that no impurities are clogging the pump.
