High Torque Nema 17 Bipolar STEPPER MOTOR 92Oz.In/65Ncm 2.1 A Motor

$74.00
+ $8.99 Shipping

High Torque Nema 17 Bipolar STEPPER MOTOR 92Oz.In/65Ncm 2.1 A Motor

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
  • product image
High Torque Nema 17 Bipolar STEPPER MOTOR 92Oz.In/65Ncm 2.1 A Motor

High Torque Nema 17 Bipolar STEPPER MOTOR 92Oz.In/65Ncm 2.1 A Motor

  • Brand: Unbranded
RRP: $119.00
Price: $74.00
You save: $45.00 (37%)
Sold by:
$74.00
+ $8.99 Shipping

In stock

We accept the following payment methods

Description

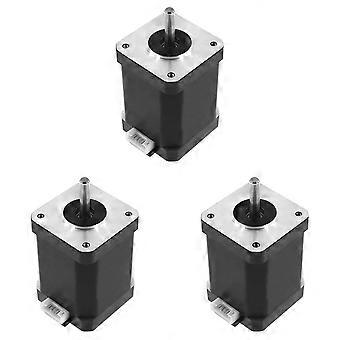

Very High Torque NEMA 17 bipolar 1.65 inch x1.65 inch x2.36 inch 4-wire This is one of strongest bipolar Nema 17 stepper motor with 1.8 . step angle (200 steps/revolution). Each phase draws 2.1A, allowing for a holding torque up to 65Ncm(92oz.in). Electrical Specification: Motor Type: Bipolar Stepper Step Angle: 1.8 . Holding Torque: 65Ncm(92oz.in) Rated Current/phase: 2.1A Phase Resistance: 1.6ohms Inductance: 3mH+/-20%(1KHz) Physical Specification: Frame Size: 42 x 42mm Body Length: 60mm Shaft Diameter: 5mm Shaft Length: 24mm D-cut Length: 15mm Number of Leads: 4 Lead Length: 500mm Weight: 1500g Colour: Black material: metal Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply the motor. Package Contents: 3 x MOTOR Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
