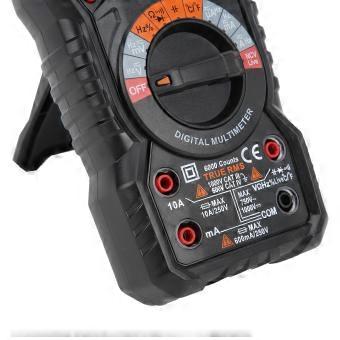

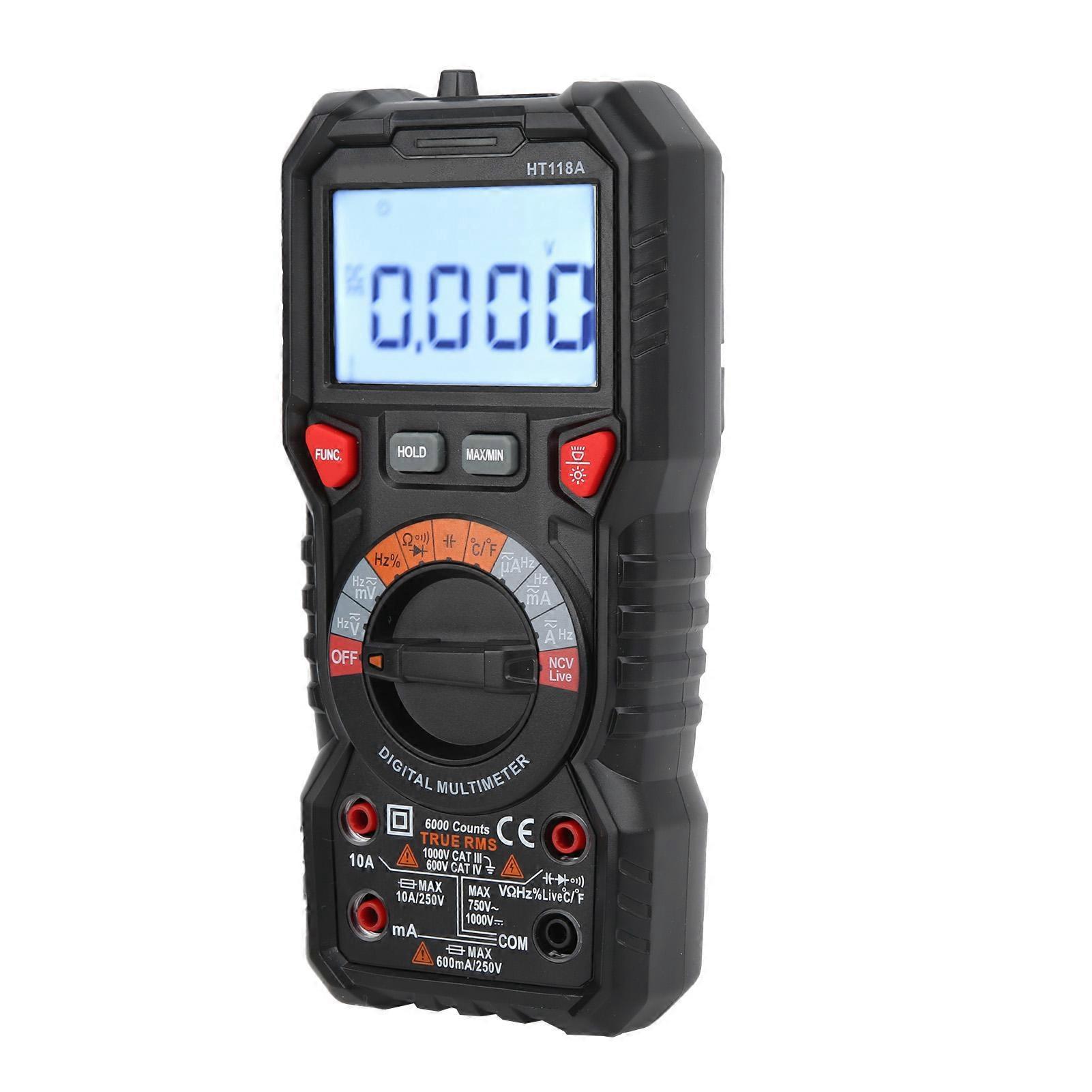

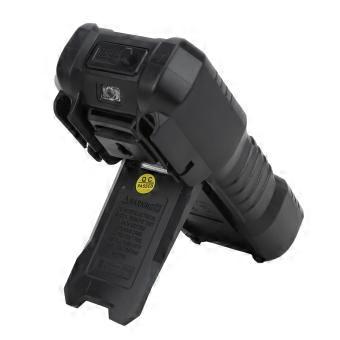

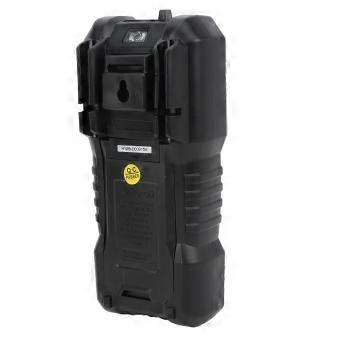

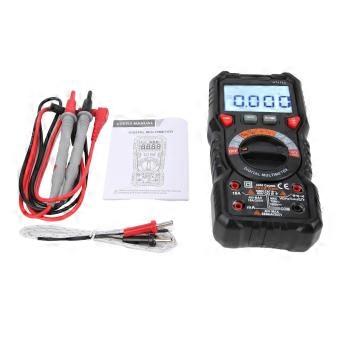

HT118A Digital Multimeter Automatic Range MultiFunction Voltage Tester Current Meter for Electrician

Feature: 1. Easy to use, non‑contact voltage detection, to avoid the dangerous of electric shock. 2. Multifunctional electrician maintenance. Digital display universal meter, professional and safe measurement data. 3. High accuracy professional maintenance meter, accurate and reliable measurement data, easy to use. 4. The measurement range is wide, and it can measure voltage, current, resistance, capacitance, and frequency. 5. Durable and made of high‑quality ABS material, it is not easy to be damaged and can be used with confidence. Specification: Item Type: Digital Multimeter Material: ABS Model: HT118A Battery: 2 x 1.5V AA (Battery Not Included) Purpose: Electrical parameter measurement Item Range Resolution Accuracy DC voltage 600mV 0.1mV ± (0.5% of reading + 3) 6V 0.001V 60V 0.01V 600V 0.1V 1000V 1V AC voltage 6V 0.001V ±(0.8% of reading +5) 60V 0.01V 600V 0.1V 1000V 1V DC current 600μA 0.1μA ± (1.2% of reading + 3) 6000μA 1μA 60mA 0.01mA 600mA 0.1mA 10A 0.01A AC current 60μA 0.1μA ± (1.5% of reading + 3) 600μA 1μA 60mA 0.01mA 600mA 0.1mA 10A 0.01A Resistance 600Ω 0.1Ω ±(1.0% of reading +3) 6kΩ 0.001kΩ 60kΩ 0.01kΩ 600kΩ 0.1kΩ 6MΩ 0.001MΩ ±(1.5% of reading +3) 60MΩ 0.01MΩ Capacitance 10nF 0.001nF ±(4.0% reading +5) 100nF 0.01nF 1000nF 0.1nF 10μF 0.001μF 100μF 0.01μF 1000μF 0.1μF 10mF 0.001mF ±(5.0% of reading +5) 100mF 0.01mF Frequency 10HZ 0.001HZ ±(1.0% reading +3) 100HZ 0.01HZ 1000HZ 0.1HZ 10kHZ 0.001kHZ 100kHZ 0.01kHZ 1000kHZ 0.1kHZ 10MHZ 0.001MHZ ± (3.0% of reading + 3) 1~99% 0.10% How to Use: 1) Turn on the power. If the battery voltage is insufficient (approximately ≤7.5V), the display shows the sign ", then the battery should be replaced.2) The "△" sign indicates that the input voltage or current should not exceed the indicated value. This is to protect the internal circuit from damage.3) Set the transfer switch to the required measurement function and range.4) When wiring, connect the common test line first, and then connect the live test line. When removing the wiring, the live test wire should be removed first. Package List: 1 x Digital Multimeter(Battery Not Included) 2 x Test Lead 1 x Temperature Probe 1 x Manual
