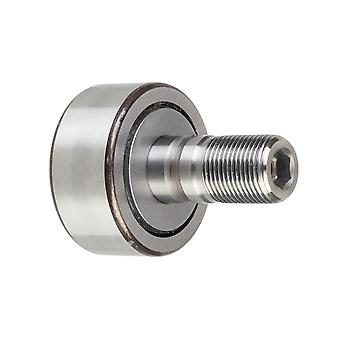

INA KR22PPA Cam Follower M10x1mm Thread 10x22x12mm

$129.00
+ $98.49 Shipping

INA KR22PPA Cam Follower M10x1mm Thread 10x22x12mm

  • product image
INA KR22PPA Cam Follower M10x1mm Thread 10x22x12mm

INA KR22PPA Cam Follower M10x1mm Thread 10x22x12mm

Price: $129.00
Sold by:
$129.00
+ $98.49 Shipping

Only 5 left in stock

We accept the following payment methods

Description

The basic design of these products is essentially that of a conventional rolling bearing, except that they have a thick-walled outer ring. Stud type track rollers have a shaft stud at one end. In the majority of applications, the outer ring is subjected to circumferential load, i.e. the outer ring rotates while the inner ring or stud remains stationary. The thick walled outer ring prevents excessive deformation of the track roller and ensures that the rolling element set is uniformly loaded Specifications D: 22 mm d: 10 mm B: 36 mm C: 12 mm B1: 23 mm C1: 0.6 mm d1: 17.5 mm G: M 10x1 G1: 12 mm M: 4 mm SW: 5 mm r1,2: min. 0.3 mm
