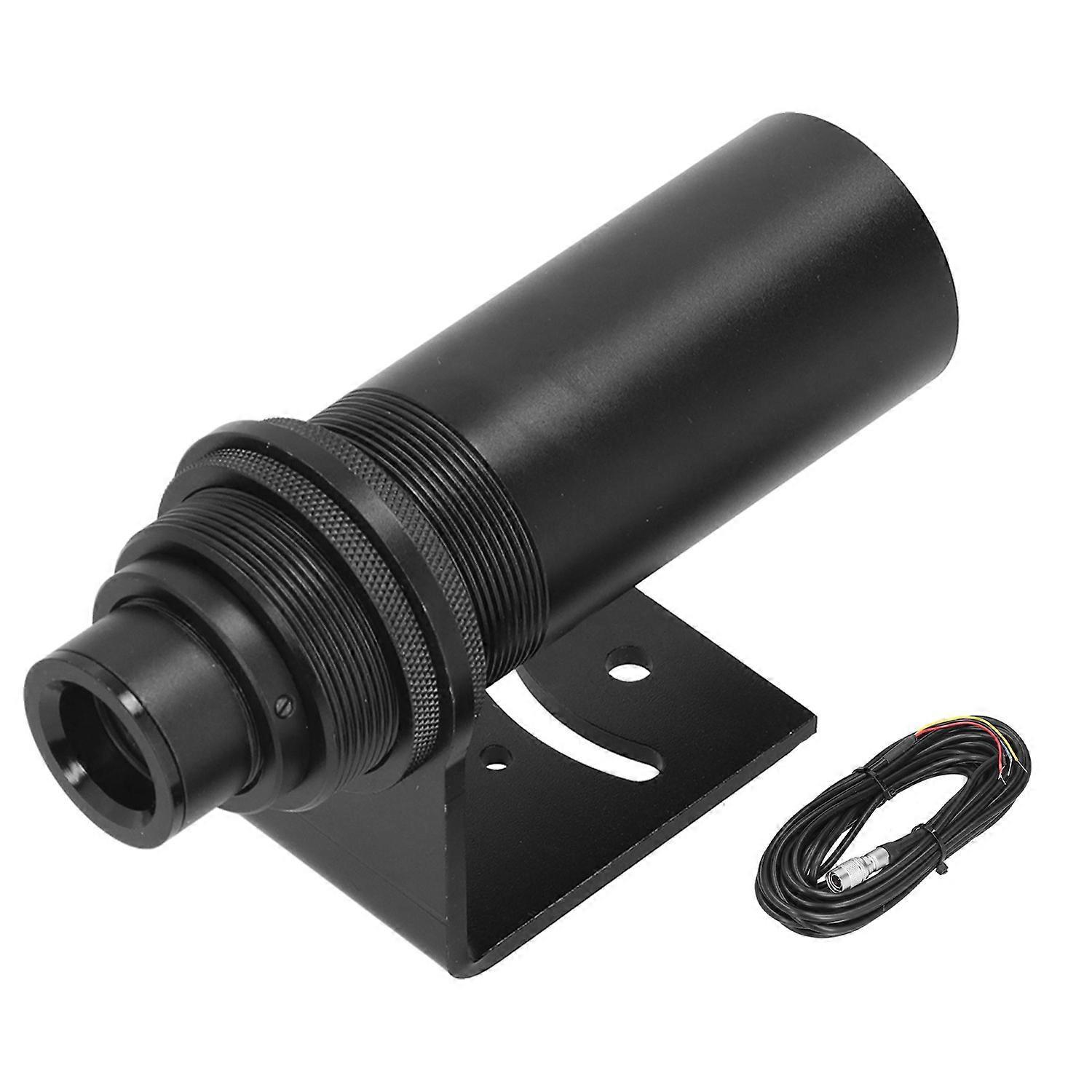

Feature: 1. PT series infrared thermometer can calculate the appearance temperature of the object according to the infrared radiation strength of the object. 2. The characteristic of the infrared thermometer is that it can measure the temperature of an object without contact, and can easily measure the temperature of a target that is difficult to approach or move. 3. PT infrared thermometer adopts class 2 laser for coaxial aiming, which can conveniently indicate the center position of the measuring point. 4. The infrared thermometer can particularly sign the best measurement distance, which is suitable for the temperature of small targets that require precise point measurement. 5. The PT infrared thermometer provides a two wire 4-20mA current output, which can be easily installed in a variety of applications, and is particularly suitable for installation in an industrial environment that requires long distances and strong interference. Specification: Item Type: Laser Infrared Thermometer Material: Aluminum Alloy Technical Parameter Temperature Range: 300-1400℃/600-2000℃ Response Wavelength: 1.6μm/1μm Accuracy: ±1% or ±1℃ (Whichever is Greater) (23℃±5℃) Repeatability: ±0.5% or ±0.5℃ (Whichever is Greater) (23℃±5℃) Response Time: 10ms (95%) Emissivity: 0.5-1.00 (Preset 0.95) Ambient Temperature: -10-60℃ (No Cooling) Storage Temperature: -20–80℃ Analog Output: 4-20mA Two Wire Current Output, Maximum Load 750Ω (with 485 Communication) Aiming: Laser Aiming (Class 2 Laser, Maximum Output Power 1mW, 650nm) Environmental Rating: IP65 (NEMA-4) Power Supply: 24VDC Electrical Connections There is a multi-core connection socket on the rear panel of the instrument. Align one end of the matching connecting cable with the multi-core socket on the rear panel of the instrument (convex and concave alignment), and insert it in place. The color and function of the output line at the end of the cable (standard cable length is 3 meters) are as follows: Connect the cable Color Function Red ﹢24VDC Black Power Ground (0V) Yellow Analog Output 4-20mA Positive Blue Analog Output 4-20mA Negative . Package List: 1 x Laser Infrared Thermometer 1 x Cable 1 x English User Manual
