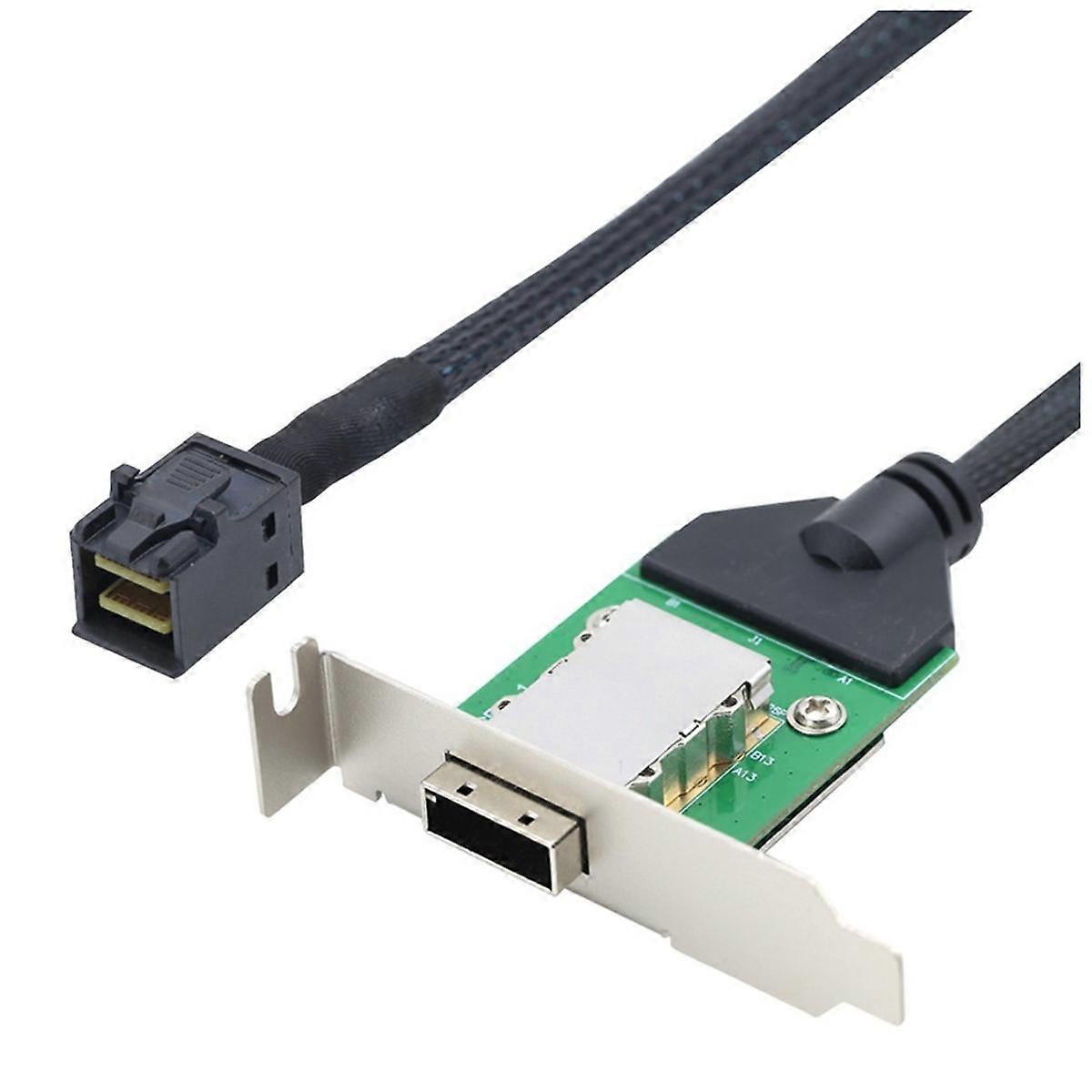

Internal HD Mini SAS SFF-8643 Host to SAS HD SFF-8088 Female with Low Bracket Connect to Hard Drive Adapter Cable 1M

$37.95
+ $7.49 Shipping

Internal HD Mini SAS SFF-8643 Host to SAS HD SFF-8088 Female with Low Bracket Connect to Hard Drive Adapter Cable 1M

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
  • product image
Internal HD Mini SAS SFF-8643 Host to SAS HD SFF-8088 Female with Low Bracket Connect to Hard Drive Adapter Cable 1M

Internal HD Mini SAS SFF-8643 Host to SAS HD SFF-8088 Female with Low Bracket Connect to Hard Drive Adapter Cable 1M

  • Brand: Unbranded
RRP: $49.95
Price: $37.95
You save: $12.00 (24%)
Sold by:
$37.95
+ $7.49 Shipping

In stock

We accept the following payment methods

Description

Electrical Performance: 1. Contact Current Rating 0.5Amperes maximum per pin when mated. 2. Voltage Rating 30VAC per contact when mated or unmated. 3. Contact Resistance 30mohm max. initial, 15mohm maximum after stress test. 4. Dielectric Withstanding Voltage: 500 for 1 minute no breakdown. 5. Insulation Resistance: 1000 Mohm minimum. Product Description: Series: Mini SAS Cable Length: 1M Wire Size: 30AWG, Tinned Copper, OD: 0. 9x2.3, MM Lock to Mating Part: With Latch Plating: Au 30u' min over Ni 100u' min : Cable Horizontal flame, PCB 94V-0, PBT 94V-0 Applications Data/Communications 1. RAID (Redundant Array of Disks) 2. Workstations 3. Rack-mount server 4. Servers 5. Storage rack Features and advantages 1. Transmission rate 12Gbps. 2. Meet SAS4.0 specification. Mechanical Performance Mating Force and Unmating Force Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute. Mating Force: 55 N maximum for Mini SAS. Unmating Force: 49 N maximum for Mini SAS. Mating Force: 45 N maximum for SATA connector. Unmating Force: 10 N maximum for SATA connector. Signal Integrity: 1. Mated Connector Impedance: 100 ohm15% 2. Cable Absolute Impedance: 100 ohm10% 3. Cable Pair Matching: 5 ohm 4. Common Mode Impedance: 25 to 40 ohms 5. Insertion loss: -6dB maximum up to 4.5Ghz; 6. Crosstalk: -26 dB up to 6Ghz; type: A: SFF-8643 to SFF-8088 Material: Tinned copper + braided mesh + plastic + metal colour: Multicolor Package Contents: 1 x Adapter cable Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
  • Fruugo ID: 289905261-647190500
  • EAN: 4713490712792
