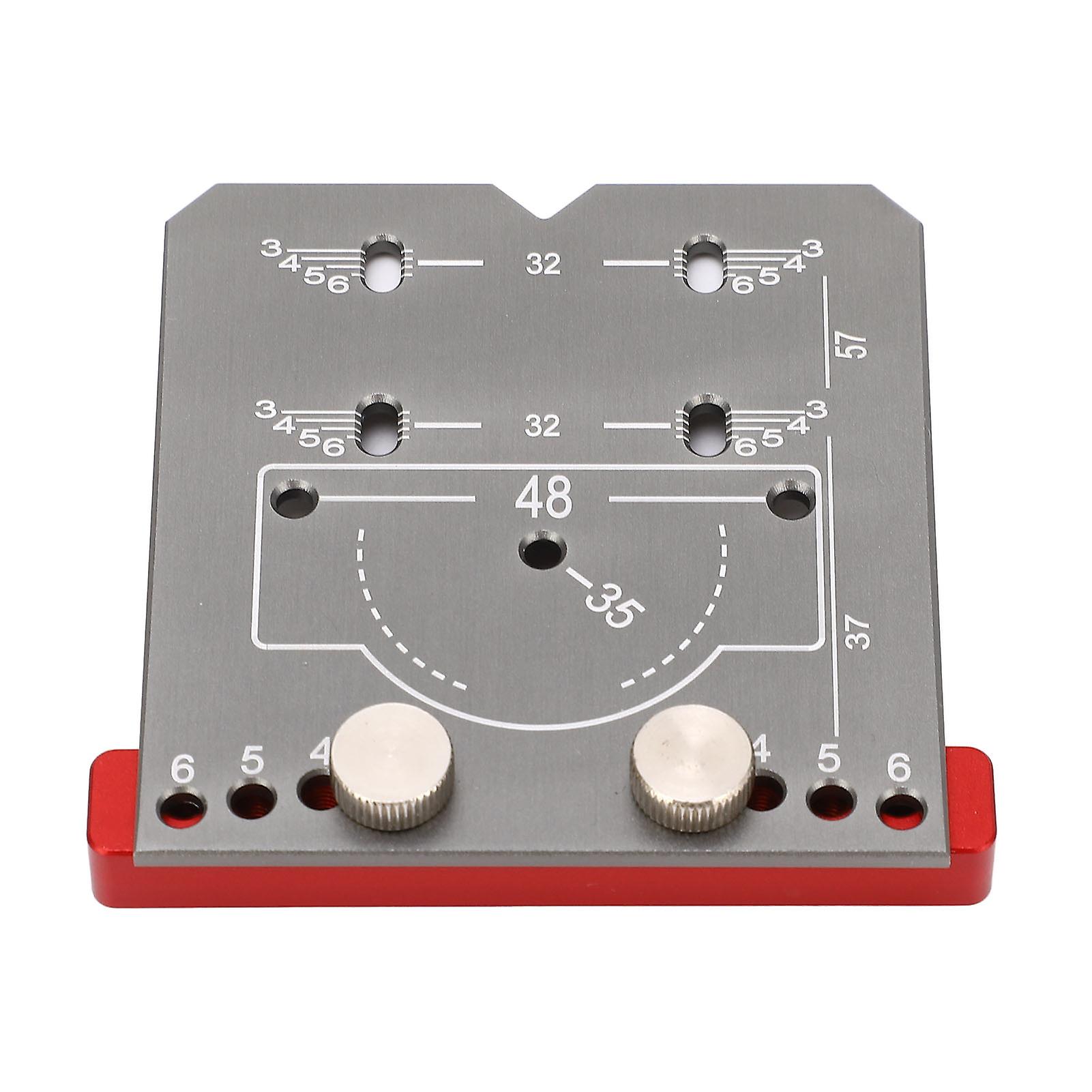

Features • Enhanced Mounting Efficiency: This locator significantly streamlines the installation process for 35mm straight arm and mid-bend hinges, saving you valuable time on your projects • Durable Construction: Crafted from high-quality aluminum alloy and stainless steel, this tool is built to withstand rigorous use, ensuring long-lasting performance and reliability • Innovative Eccentric Wheel Design: Features a unique 1.5mm offset for precise alignment, allowing for tighter and more accurate connections between hinge components • User-Friendly Operation: Simply align the locator with your marked line, cover the edge with the red baffle, and easily mark the hole centers for hassle-free drilling • Versatile Applications: Perfect for installing hinges on cabinets, doors, windows, and folding tables, making this tool an essential addition to any woodworking toolkit Features: 1、MAIN FUNCTION: This hole drill locator is used for common 35mm straight arm and mid bend hinges, greatly improves the mounting efficiency. 2、RELIABLE MATERIAL: The main body is made of aluminum alloy, the is sandblasted, the drill bushing is made of stainl steel, which is hard wearing and greatly extends the drilling life. 3、ECCENTRIC WHEEL DESIGN: The hinge hole locater is designed for common 40mm connecting rod, with eccentric wheel hole position design, is moved up 1.5mm, the splicing is closer. 4、EASY TO USE: Align the locator with the marking line and place on the cabinet door, cover the red baffle on the edge, use the marking tool to mark the hole center and the two screw holes. 5、WIDE USAGE: The hole drill guide is widely used for hinge installation of cabinet, door, window, folding table and other furniture, very practical. Specification: Item Type: Hinge Hole Drilling Locator Material: Aluminum Alloy Positioning Function: 35mm Straight Arm or Middle Bending Hinge Hole Positioning 32mm Connector Hole Positioning Hinge Cup Edge Distance: 3 4 5 6mm Four Gear Adjustable Drill Bushing Size: Approx. 8mm/0.3in Hole Spacing: Approx. 28mm/1.1in Scale Parameters: English Range: 3-11/16in, Minimum Scale: 1/16in Metric Range: 94mm, Minimum Scale: 1mm Package List: 1 x Hinge Hole Drilling Locator Package List 1 x Hinge Hole Drilling Locator
