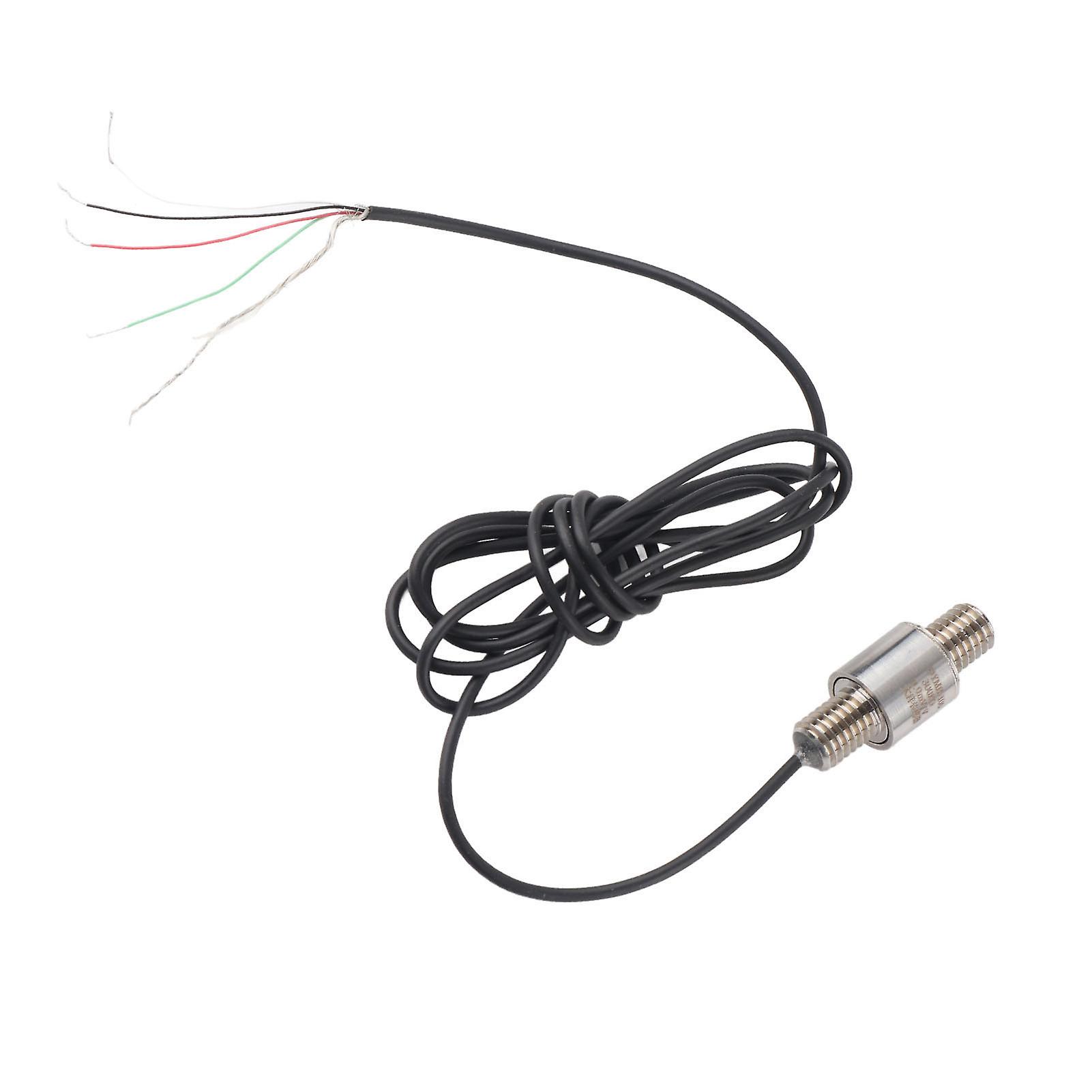

Features 1、Stainless steel possess strong mechanical fatigue resistance, good hardenability, nickel‑plated surface with corrosion resistance 2、Possess strong chemical stability, sufficient strength and plasticity, and stable mechanical properties at a certain high or low temperature 3、Ex‑factory sensors/instruments have been subjected to aging test, possess durability and quality 4、Used for force measurement in industrial systems, mainly industrial automation measurement and control system for measuring tension and pressure and other kinds of weighing and force measurement 5、Adopt strain sensor, possess excellent performance, good long‑term stability Specification Item Type: Pull Pressure Force Sensor Material: Stainless steel Model: DYMH-106 Pressure Type: Strain sensor Power Supply Voltage: DC5-15V Output Sensitivity: 1.0-2.0mv/v Non-Linearity: 0.05%F·S Lag: ±0.5≤%F·S Repeatability: ±0.5≤%F·S Creep: ±0.1≤%F·S/30min Zero Output: ±5≤%F·S Zero Temperature Coefficient: ±0.05%F·S/10℃ Sensitivity Temperature Coefficient: ±0.05%F·S/10℃ Working Temperature Range: -20℃~+80℃ Input Resistance: 350±30Ω Output Resistance: 350±5Ω Safe Overload: 150%F·S Insulation Resistance: ≥2000MΩ (50VDC) Package List 1 x Pull Pressure Force Sensor
