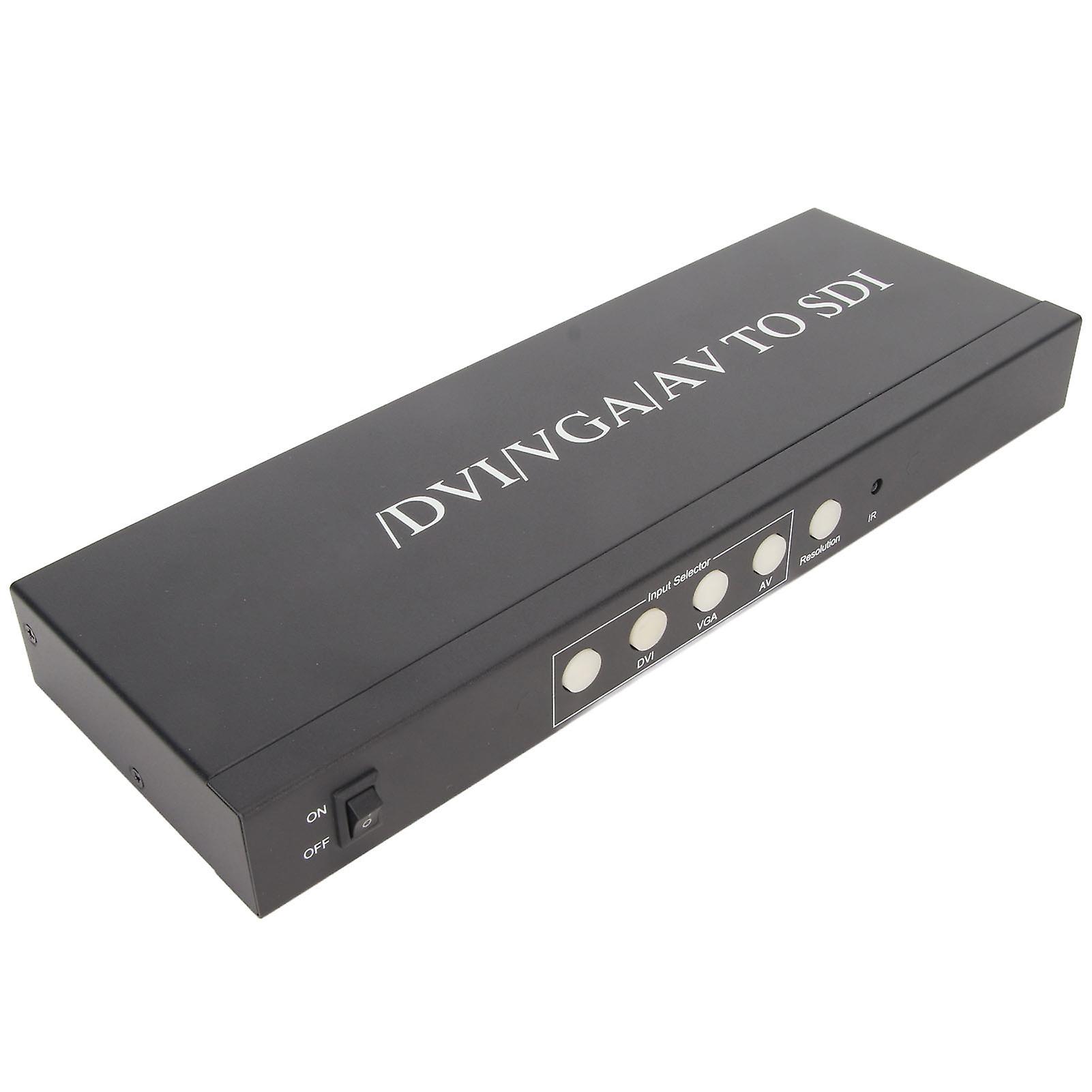

Feature: 1. SDI ADAPTER CONVERTER: SDI converter converts HD Multimedia Interface, DVI, VGA, AV (CVBS) signals to HD Serial Digital Interface SDI signals. Integrated SDI line driver, HD Multimedia Interface receiver, VGA receiver and AV (CVBS) receiver. 2. INPUT AND OUTPUT: SDI converter supports multi channel signal input and simultaneous output of 2 SDI signals. Support converting all input signals to HD SDI or 3G SDI signals. SDI transmission speed: SMPTE 292M (1.485 Gbit/s), SMPTE 424M 425M (2.970 Gbit/s). 3. HD RESOLUTION: SDI output resolution 2xSDI (HD 3G SDI), supports adjustment between 720P50, 720P60, 1080P50, 1080P60. HD Multimedia Interface input resolution up to 1080p at 60, DVI VGA input resolution up to 1920x1080 at 60. 4. REMOTE CONTROL: Multi video format to SDI scaler converter supports panel button control and remote control for easier use. Stable connection and anti interference, AV input format NTSC, PAL, SECAM. 5. SIMULTANEOUS TRANSMISSION: Separate all the converted HD Multimedia Interface sound signals and embed them in SDI signals, or embed them in SDI signals via analog 3.5mm sound and DVI VGA AV (CVBS) video to achieve simultaneous sound and video transmission. Specification: Item Type: SDI Converter Material: Aluminum Alloy Input Interface: 1 x HD Multimedia Interface (Type A Connector), 1 x DVI With 3.5mm Sound, 1 x VGA With 3.5mm Sound, 1 x CVBS L R Output Interface: 2 x BNC (HD 3G SDI) HD Multimedia Interface Input Resolution: VGA At 60, SVGA At 60, XGA At 60, SXGA At 60,WXGA At 60,480i At 60,576i At 50, 480p At 60,576p At 50, 720p At 50/60, 1080i At 50/60 1080p At 24/25/30/50/60 DVI VGA Input Resolution: VGA At 60, SVGA At 60, XGA At 60,SXGA At 60, WXGA At 60,1280x720 At 60,1920×1080 At 60 AV Input Format: NTSC, PAL, SECAM SDI Output Resolution: 2xSDI (HD 3G SDI), Support To Adjust Among 720P50, 720P60, 1080P50, 1080P60 SDI Transmission Speed: SMPTE 292M (1.485 Gbit/S) And SMPTE 424M 425M (2.970 Gbit/S) SDI Transmission Distance: HD SDI: Up To 200m/218.7yd (1694A Coaxial Cable) 75Ω, SD SDI: Up To 300m/328yd (1694Acoaxial Cable) 75Ω HD Multimedia Interface Transmission Distance: Up To 10m/32.8ft (1080p60), 8/12bit Remote Control Battery: 1 x CR2025 (Not Included) Product Size: Approx. 269x93.5x30mm / 10.6x3.7x1.2in Voltage: 100-240V. Package List: 1 x SDI Converter1 x Power Adapter1 x Instruction Manual1 x Remote Control Note: Please allow some error due to manual measurement.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
