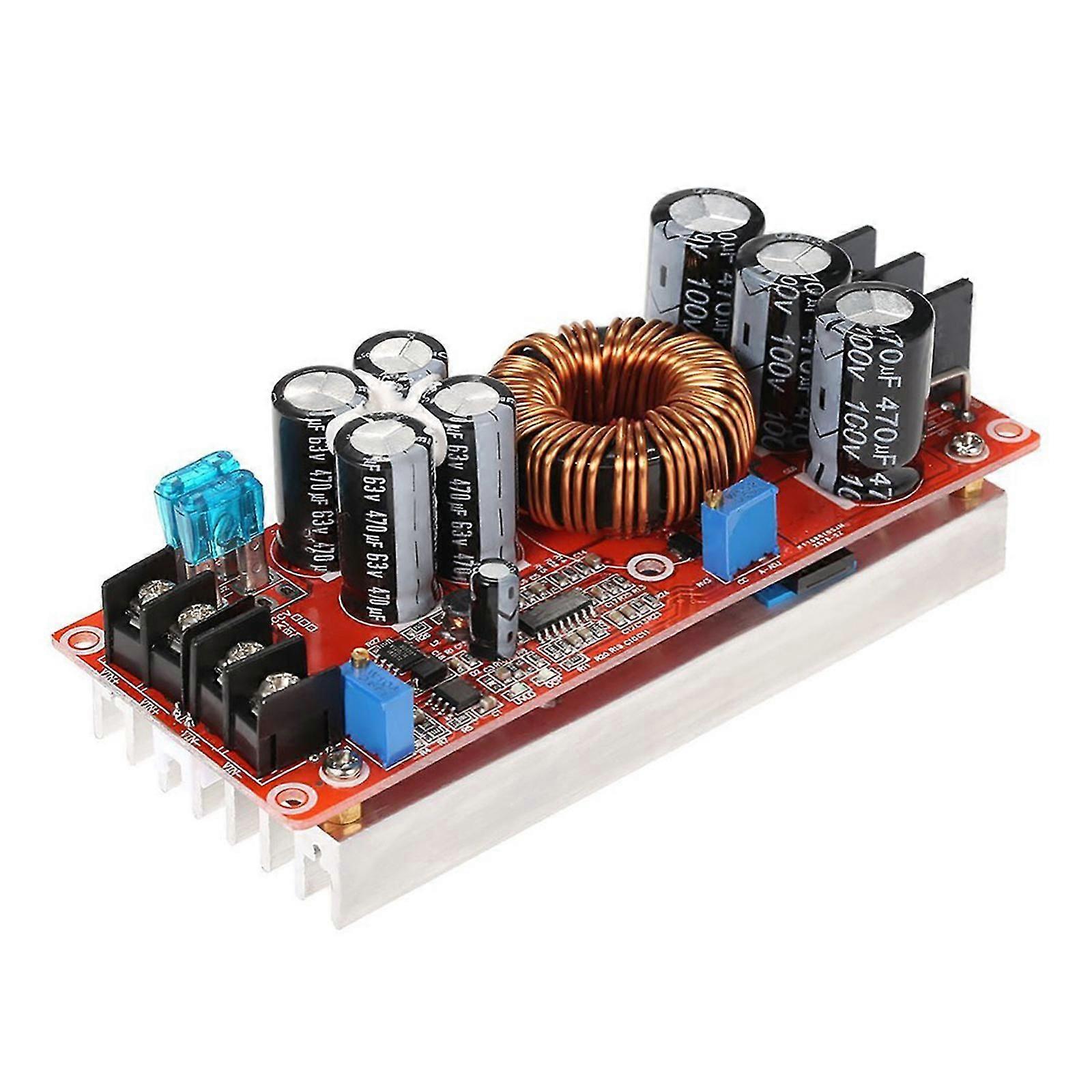

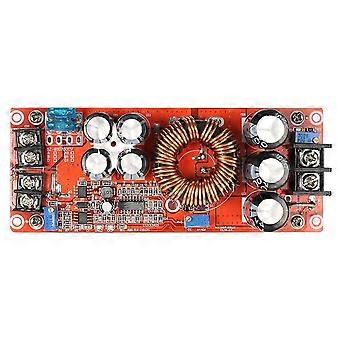

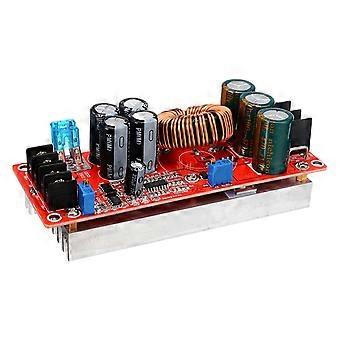

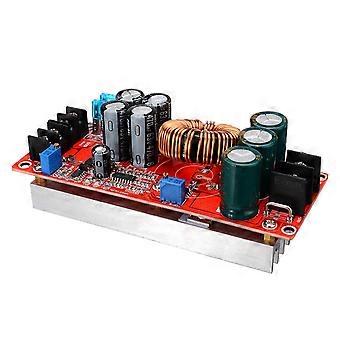

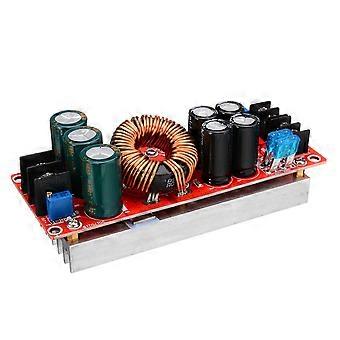

Power Supply Modules Non-isolated Boost Module For Dc 10v-60v Input Voltage

Features: Output current: 18A MAX, please strengthen heat dissipation if it exceeds 10A (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current). Input anti-reverse connection: Yes (150A power MOS anti-reverse). Low battery protection: Yes (9-50V adjustable). Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high). Conversion efficiency: 92%-97% (Efficiency is related to input, output voltage, current, pressure difference. Small pressure difference, high efficiency). Note: The maximum power is 240W when the input is 12V, the maximum power is 480W when the input is 24V, and the maximum power is 720W when the input is 36V. Specifications: Material:PCB Size:Approx.13x5.3x5.2cm/5.12x2.09x2.05in Module Model: BT07CCCV-A Nature: Non-isolated Boost Module (BOOST) Input voltage: DC10-60V (input 10-60V directly without jumper cap to select voltage) (2016/5/15 update) Input current: 20A (MAX), please add fan for heat dissipation (when the input voltage is 12-24V, the input current can reach 25A) Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the static current will increase) Working frequency: 150KHz Constant current range: 0.5-18A (+/-0.3A) Note: Please allow 1-2cm errors due to manual measurement,pls make sure that you do not mind before you order. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Package includes: 1x 1200W Boost Constant Current Module
