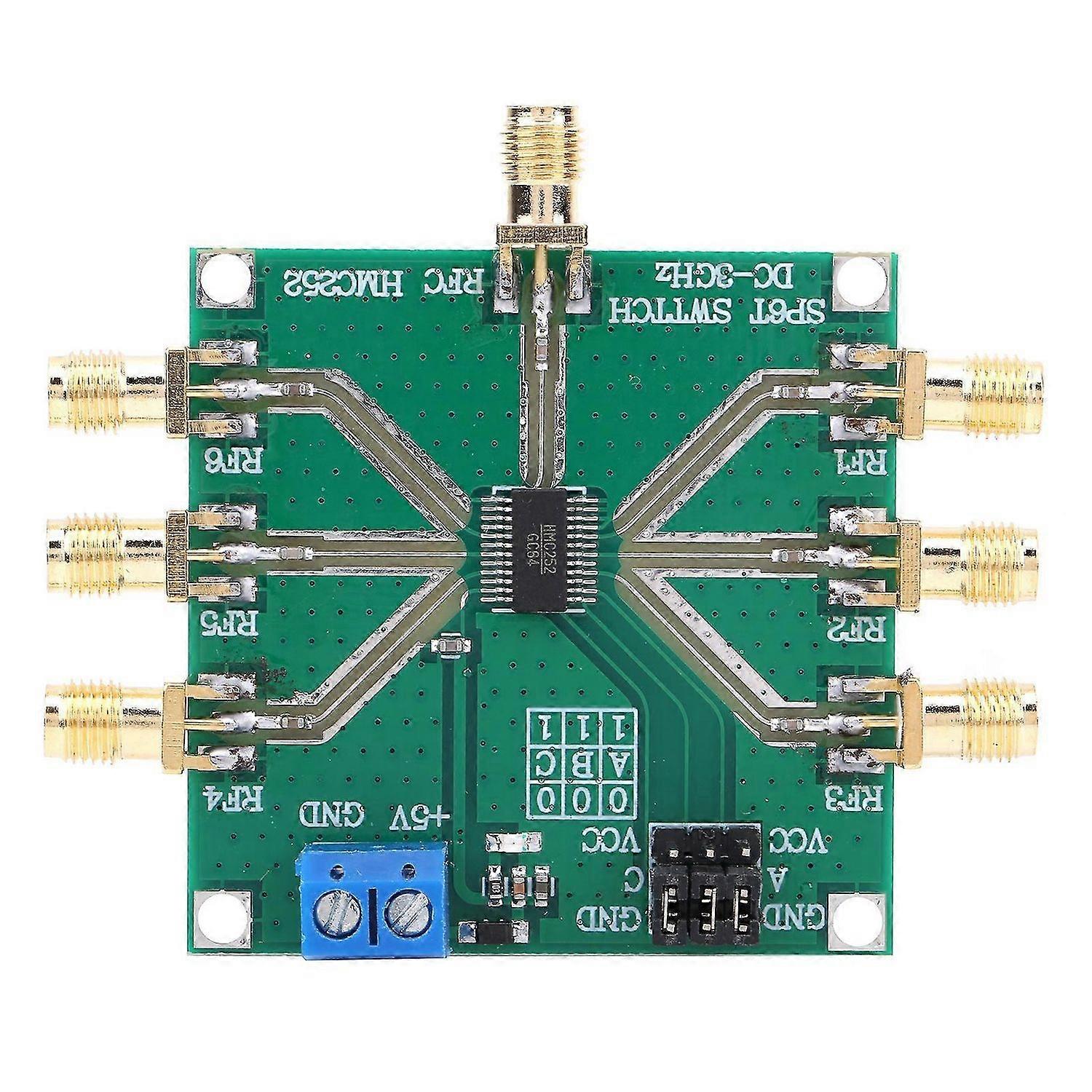

RF Switch Module SinglePole 6 Throw NonReflective Electronic Component HMC252 DC3 GHz

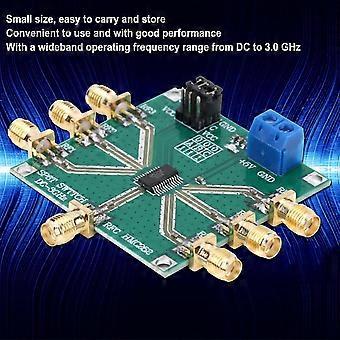

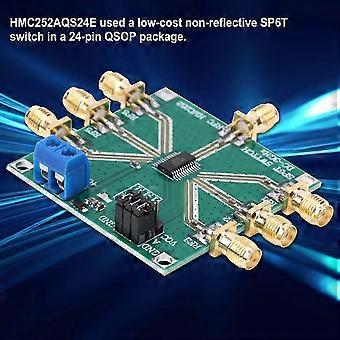

Feature:1. This product has a high operating frequency range and a wide range of applications.2. With small size, easy to carry and store, convenient to use and with good performance.3. HMC252AQS24E is a lowcost nonreflective SP6T switch in a 24pin QSOP package with a wideband operating frequency range from DC to 3.0 GHz.4. The switch provides single positive bias and true TTL/CMOS compatibility. The switch integrates a 3:6 decoder.5. HMC252AQS24E SP6T can replace SP4T and SPDT MMIC switches and multiple configurations of logic drivers.Specification:Item Type: RF Switch ModuleLow Insertion Loss (2 GHz): 1.0 dBSingle Positive Power Supply: VDD = +3V to +5VIntegrated 3: 6 TTL decoderApplication: 1. Base station2. CATV / DBS3. MMDS and wireless local area network4. Test equipmentOverview: HMC252AQS24E is a low-cost non-reflective SP6T switch in a 24-pin QSOP package with a wideband operating frequency range from DC to 3.0 GHz. The switch provides single positive bias and true TTL/CMOS compatibility. The switch integrates a 3:6 decoder, only three control lines and a positive bias are needed to select each path. HMC252AQS24E SP6T can replace SP4T and SPDT MMIC switches and multiple configurations of logic drivers.Package List:1 xRF Switch Module
