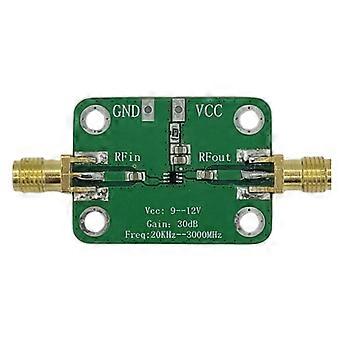

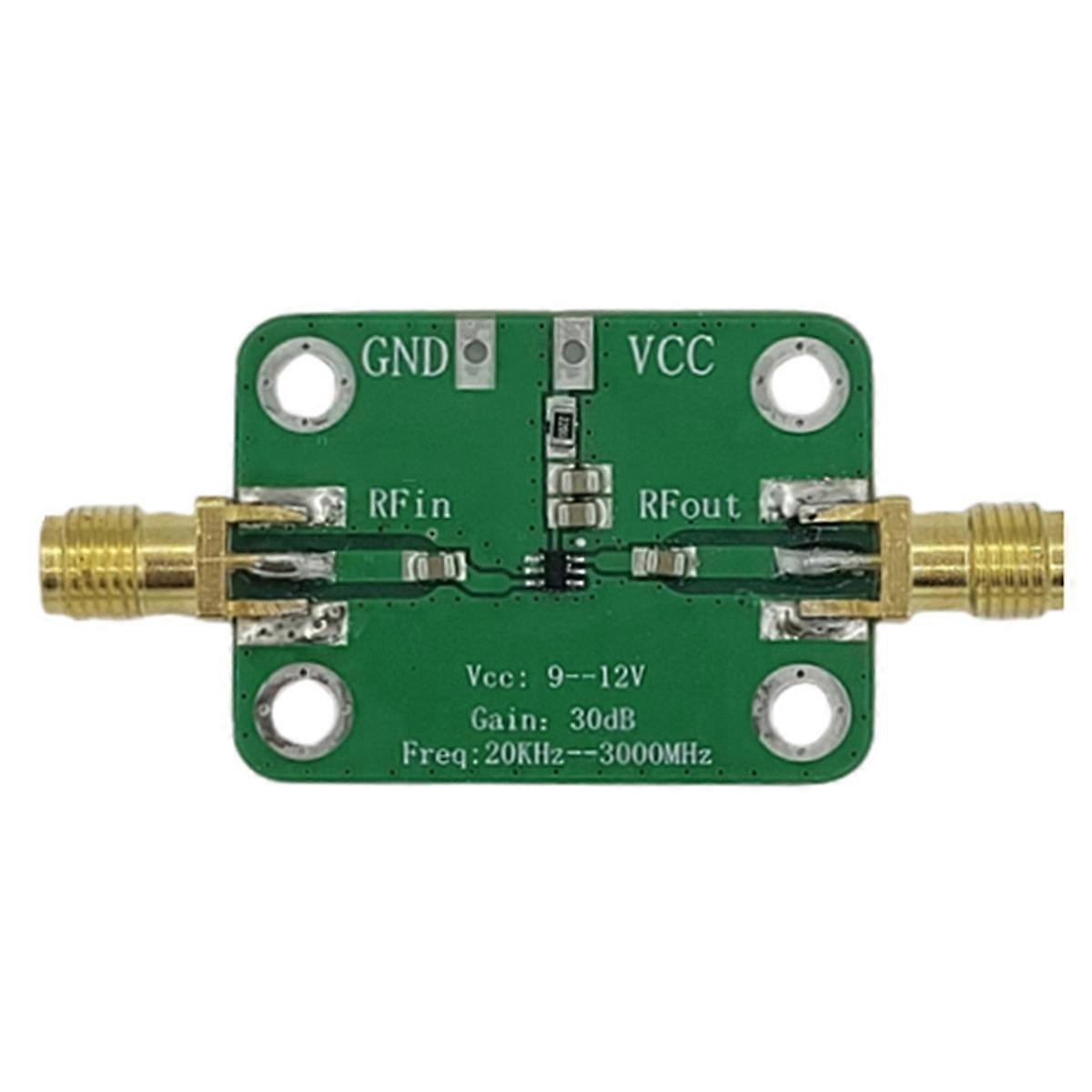

RF Wideband Amplifier Module Low Noise Power Amplifier LNA Module 20KHz-3000MHz Gain 32dB

$28.95
+ $6.49 Shipping

RF Wideband Amplifier Module Low Noise Power Amplifier LNA Module 20KHz-3000MHz Gain 32dB

  • Brand: Unbranded

RF Wideband Amplifier Module Low Noise Power Amplifier LNA Module 20KHz-3000MHz Gain 32dB

  • Brand: Unbranded
RRP: $44.95
Price: $28.95
You save: $16.00 (35%)
Sold by:
$28.95
+ $6.49 Shipping

In stock

We accept the following payment methods

Description

Product details: 1: The amplifier has the advantages of wide frequency range, high gain, low noise figure, etc. 2: It can be used in various RF receiving front ends to increase the communication distance. 3: Wide range of shortwave, FM broadcast, remote control receiver, cable TV and other places that require low noise and small signal RF amplification 4: Wide range of use. 5: Safe to use I. Product application The amplifier has the advantages of wide frequency range, high gain, low noise figure, etc. It can be used in various RF receiving front ends to increase the communication distance! Wide range of shortwave, FM broadcast, remote control receiver, cable TV and other places that require low noise and small signal RF amplification. The amplifier has high flatness in the band, especially the working bandwidth is 100KHz-500MHz. Technical indicators Working frequency: 20KHz-3000MHz Working voltage: 9-12V (suitable for battery power supply) Working current: 27mA Amplification gain: 32dB (typ.) F= 0.1MHz, gain=32dB F= 500Mhz Gain=32dB F=1000MHz gain=32dB F=1500Mhz Gain=32dB =2000MHz gain=32dB F=2500MHz gain=30dB F=3000MHz gain=29dB Maximum output: 13dBm (20mW) System impedance: 50 ohms Connector model: SMA-K (internal thread, external thread, internal hole) Instructions RFin: input signal amplification RFout: Output amplified signal VCC: Positive power supply (for lithium batteries) GND: Negative pole of power supply Note: Installation guide not included, Please check as much as possible to make sure the item is what you need. Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use Color: As Shown Material: PCB Package Contents: 1 x RF wideband amplifier module <
  • Fruugo ID: 361638095-786061625
  • EAN: 4712671054676

Product Safety Information

Please see the product safety information specific to this product outlined below

The following information is provided by the independent third-party retailer selling this product.

Manufacturer Part Number: I500850079
Serial Number: I500850079

Delivery & Returns

Dispatched within 24 hours

  • STANDARD: $6.49 - Delivery between Tue. 14 October 2025–Wed. 22 October 2025

Shipping from China.

We do our best to ensure that the products that you order are delivered to you in full and according to your specifications. However, should you receive an incomplete order, or items different from the ones you ordered, or there is some other reason why you are not satisfied with the order, you may return the order, or any products included in the order, and receive a full refund for the items. View full return policy
