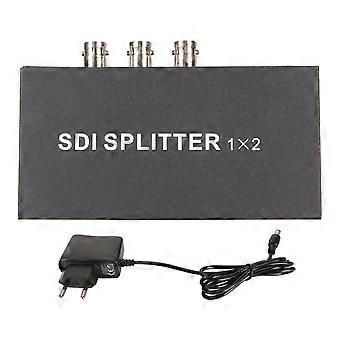

Feature:1. SDI Splitter 1x2: Splits one SDI signal (SD SDI HD SDI 3G SDI) into 2 signals. It allows you to assign one SDI source to 2 monitors or SDI recorders at the same time without losing any signal. Support up to 1080P 60Hz HD resolution input and output.2. SDI Signal Formats: This SDI splitter supports SD SDI (270Mbps), HD SDI (1.485Gbps) and Full HD 3G SDI (2.97Gbps) video formats. Plug and play, no driver required, easy and fast to use.3. Extended Functions: This product has the functions of built in equalizer, for Reclocker and cable driver, and supports the maximum cable length (for Belden 1694A) as follows: SD SDI supports 300m, HD SDI supports 200m, and 3G SDI supports 100m (this is a theoretical value, the actual situation is related to the cable quality).4. Smart Design, LED Work Light: It can automatically detect different SDI signals, when it detects a valid SDI input signal, the LED will turn green, otherwise, the LED will not light up.5. Aluminum Alloy Shell, Wide Application: Aluminum alloy shell, strong and durable, long service life, with high stability and reliability. It is widely used in all workplaces such as TV stations, security monitoring, training places, etc.Specification:Item Type: SDI SplitterMaterial: Aluminium AlloySDI Output Port: BNC SDI2SDI Standard: Compatible with SMPTE 424M, SMPTE 292M and SMPTE 259M CSDI Signal Format: SD SDI, HD SDI, 3G SDISDI Speed: 143-2970MB/SSDI Resistance: 75SDI Output Resolution: 480i60Hz, 576i50Hz, 720P50 60Hz, 1080i50 60Hz, 1080P24 25 30 50 60HzSDI Signal Output Range: 800mVp pSupport Maximum Cable Length (for Belden 1694A) as Follows: SD SDI Support Approx. 300m/984.3ft, HD SDI Support Approx. 200m/656.2ft, 3G SDI Support 100m/328.1ft (This is a theoretical value, the actual situation is related to the quality of the cable)Power: 5V 1ATemperature: 0~60.Package List:1 x SDI Splitter1 x Power Adapter 1 x Instruction Manual
