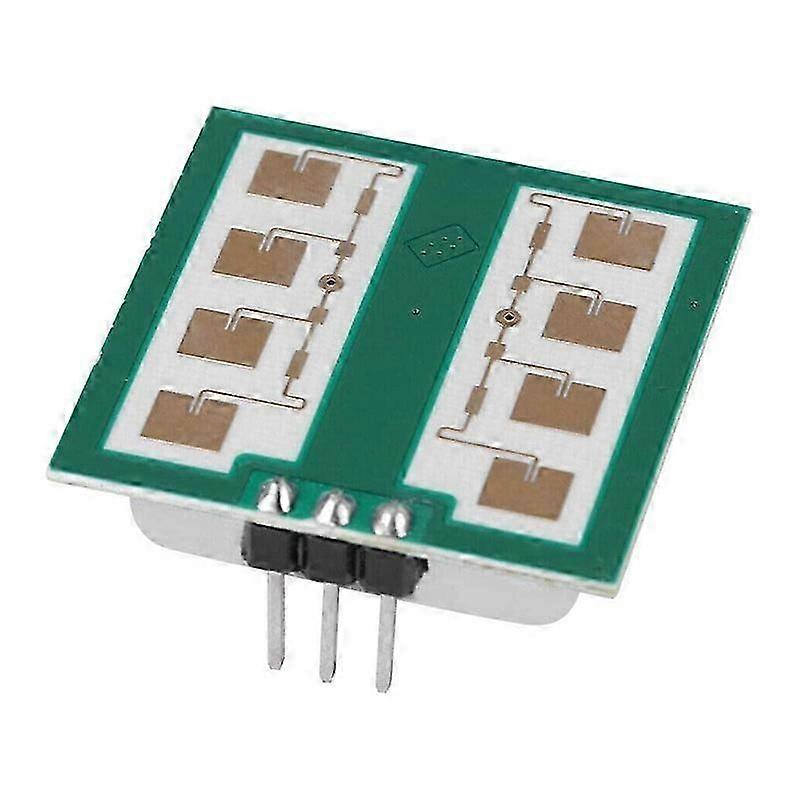

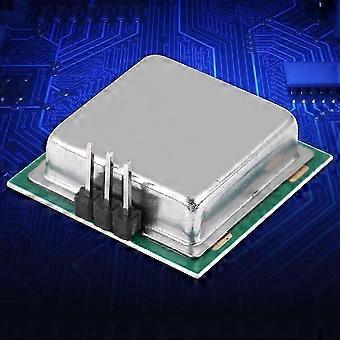

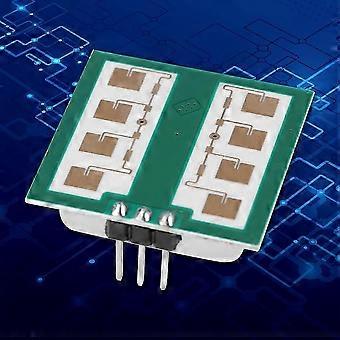

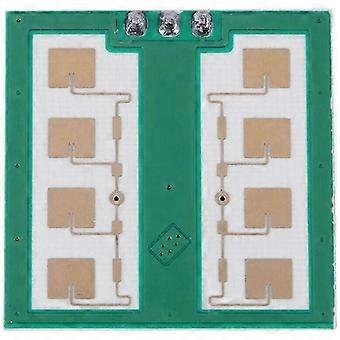

Sensor Module Microwave Human Body Induction Module 24g 24ghz Cdm324 Induction Switch Sensor Module

$40.95
+ $18.49 Shipping

Sensor Module Microwave Human Body Induction Module 24g 24ghz Cdm324 Induction Switch Sensor Module

Sold by:
  • product image
  • product image
  • product image
  • product image
  • product image
Sensor Module Microwave Human Body Induction Module 24g 24ghz Cdm324 Induction Switch Sensor Module

$40.95

Save $33.05 (44%)

RRP

$74.00
In stock
+ $18.49 Shipping

14-Day Returns Policy

Payment methods:

  • Brand: Unbranded
Product details

Product details

Sensor Module Microwave Human Body Induction Module 24g 24ghz Cdm324 Induction Switch Sensor Module

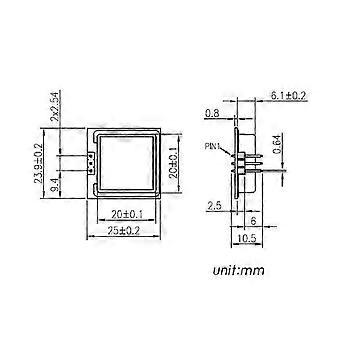

1.Noncontact detection,moving object detecting 2.Transmitting frequency:24GHZ,can be widely applied in business,industries, controlling etc 3.Provide frequency range standards:-UK,-F.advanced low consumption PHEMT oscillator 4. transmitting and receiving route, can get the biggest gain,single channel operation 5.High sensibility,high flexibility,low cost,operating distance:15m Not influenced by temperature,humidity,noise,air flow,dust,ray etc,adaptive to terrible environment Strong radio frequency interference resistance,stable performance,,high sensibility Out put power is 5mW,does no harm to human bodies Small volume,easy to install Radar wave can penetrate through non metallic object,such as board,glass,plastics,fabric textile etc,unless there are concrete wall or metal board to obstruct 12.Human beings or objects facing the sensor to move wil receive the best detection result 1.Transmitting Frequrency: min:24GHz, typ:24.125GHz, max:24.25GHz 2.Output Power:16dbm (tpy) 3.Operating Temperature:-20~60 4.Operating Current: tpy:30MA, max:40MA 5.Operating Voltage: tpy:5.5V 6.Pulse Width: tpy:10US 7.IF Output:-300--300MV 8.Appearance Size:23.9x25x7mm Notice: 1.'t operate during the power on in case of maloperation,wrong circuit or electric shock 2.Avoid installing the product in exposed place to prevent damage or affecting using 3.Install the product far from magnetic field in case of maloperation 4.Install the product far waay from moving conductors in case of maloperation colour: green Material: plastic + metal Package Contents: 1 x Module Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
