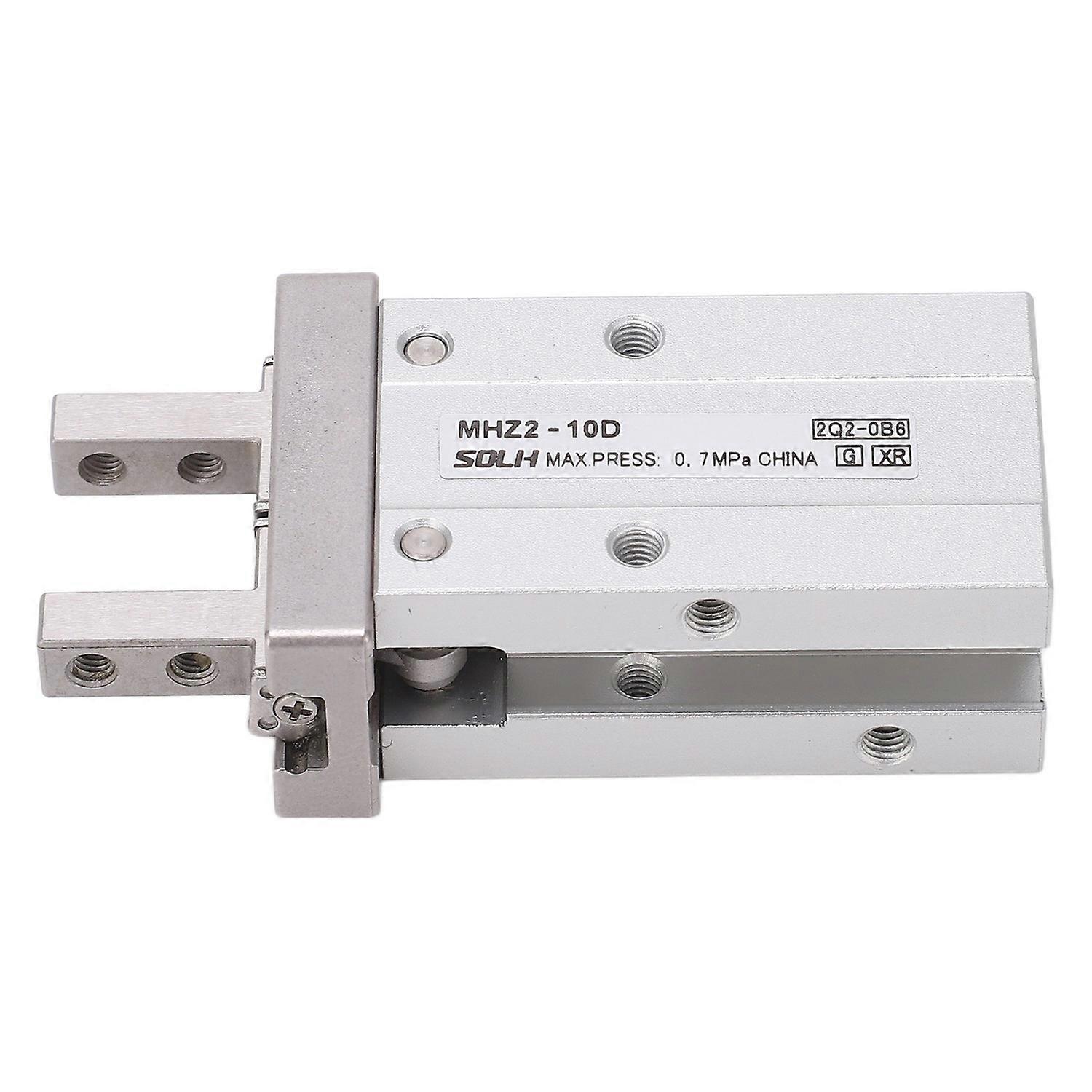

Feature: 1. Specifications: SMC type pneumatic finger cylinder, parallel grip design, support double action and single action mode, stable and reliable. 2. Strong Structure: The cylinder body adopts hard oxidation treatment to increase the surface hardness, pressure resistant and not easy to deform. 3. High Accuracy Rail: High strength tight guide rail is not easy to loosen, and the steel ball will not fall, ensuring high accuracy and smoother operation. 4. Good Sealing: The self lubricating seals are used to prevent the left and right chambers of the cylinder from blowing and reduce the working error. 5. Standard Size: The pneumatic cylinder has standard diameter, M3 x 0.5mm air inlet and outlet thread, ensuring a stable connection and no leakage. Specification: Item Type: Pneumatic Cylinder Working Fluid: Air Operating Pressure Range (MPa) (Double Acting): 0.2-0.7 Operating Pressure Range (MPa) (Single Acting): 0.35-0.7 Repetition Accuracy (mm): ± 0.01 Maximum Frequency (c.p.m.): 180 Oil Feeding: Not Required Action Mode: Double Action and Single Action Cylinder Diameter: Approx. 10mm / 0.4in Inlet and Outlet Hole Thread: M3 x 0.5mm Opening Closing Stroke: Approx. 4mm / 0.16in Claw Distance When Closing: Approx. 11.2mm / 0.44in Claw Distance When Opening: Approx. 15.2mm / 0.6in Outer Diameter Clamping Force: Approx. 1.1kg / 2.4lb Inner Diameter Clamping Force: Approx. 1.7kg / 3.7lb. Package List: 1 x Pneumatic Cylinder
