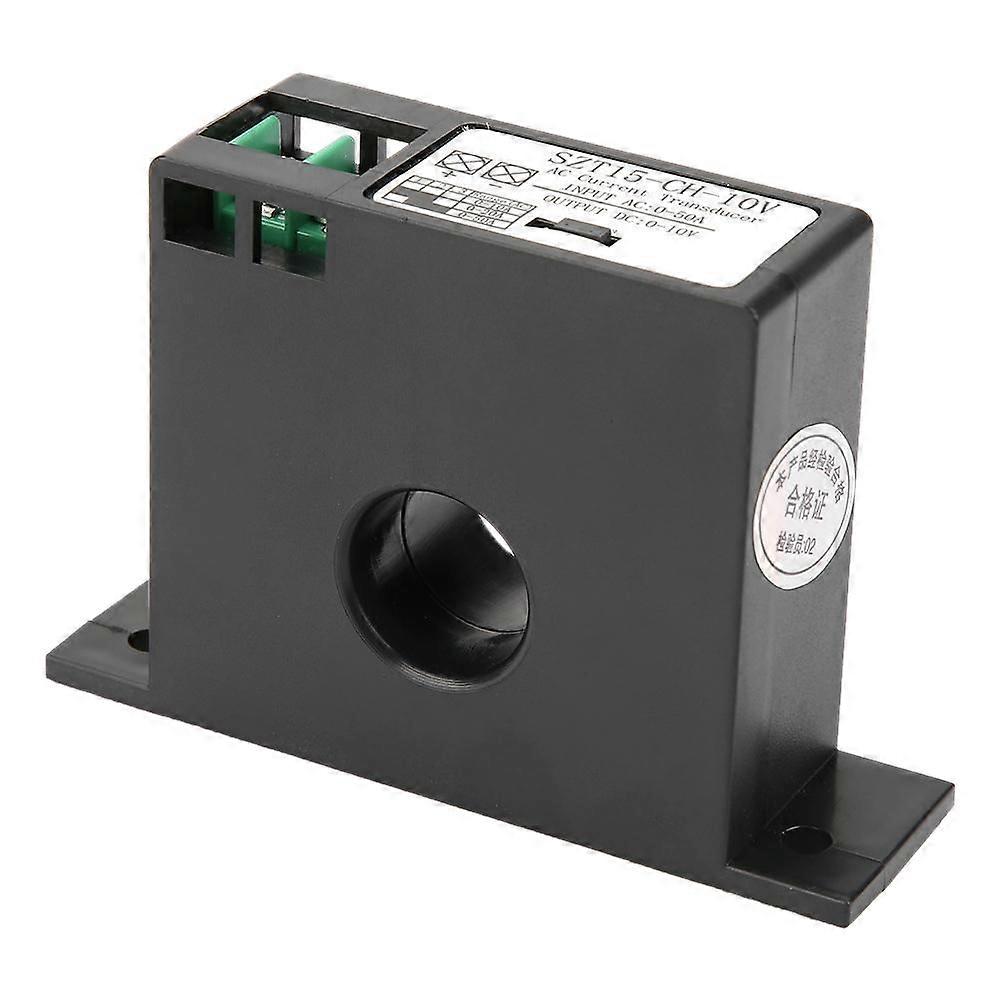

1. inductance current monitoring has high current detection accuracy and safe isolation of input and output. 2. -powered, no external power supply required. 3. Easy to install and use, no need to connect DC into the circuit when measuring. 4. Measured current AC 0-10/20/50A, output signal DC 0-10V. 5. Straight-through structure design, isolation withstand voltage up to 2000V. 6. Hysteresis is less than 1% and can be used under strong magnetic conditions. 7. The outer casing is made of -extinguishing material ABS. 8. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on. Specification: Model: SZT15--10V Supply power: Not required Output type: 0-10V DC Input straight-through current: AC 0-10A/20A/50A Switch on minimum: 0.50.2A Maximum overload of straight-through current: 200% Accuracy: 1% Power consumption: 1W Leakage current: 1mA Hysteresis: 1% Linearity: 10%-100% Straight-through wire diameter: 0.35-20mm Response time: 200ms Withstand voltage: 2000VAC 50/60Hz 1min Working environment: -20~60, 5-95%RH Dimensions: 61.5*90*26mm / 2.4*3.5*1.0inch Hole diameter: 20mm / 0.8inch Color: Black Material: plastic + metal Package Contents: 1 * AC Current Transmitter Only the above package content, other are not included. Note: Light and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
