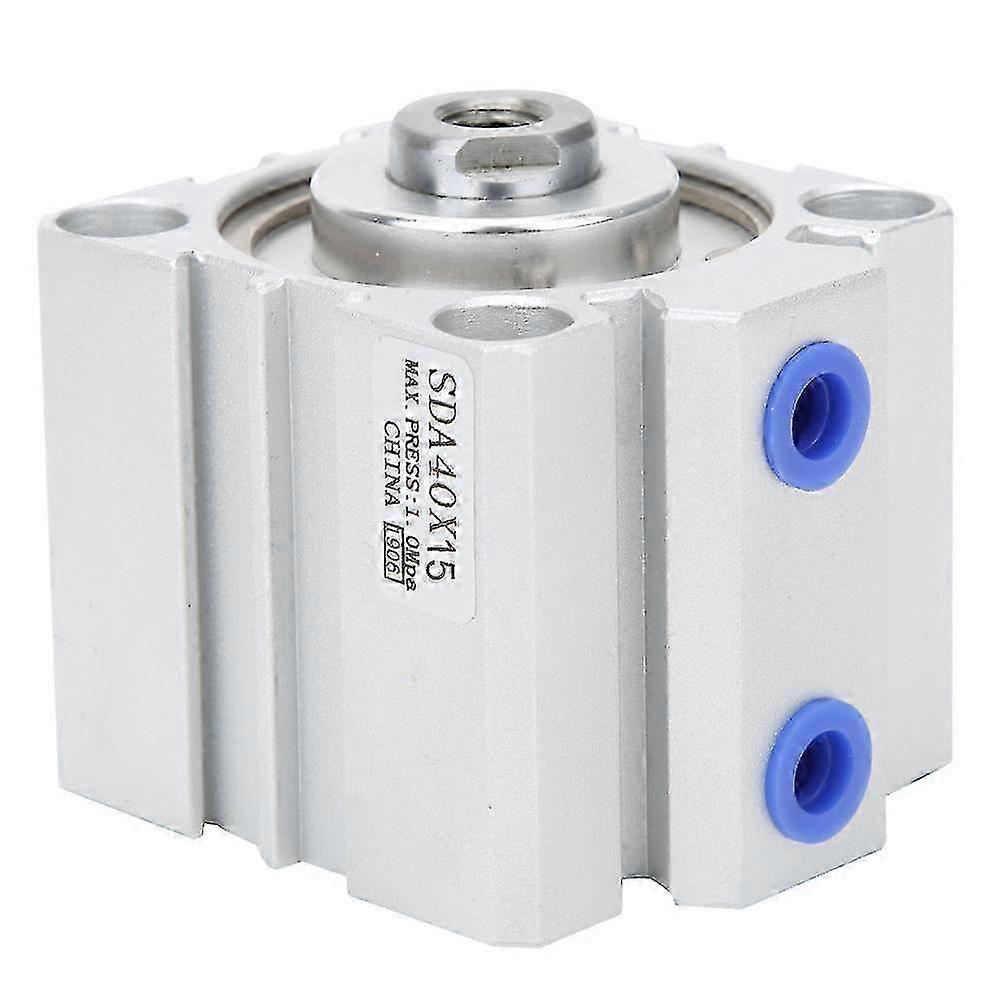

Thin Air Cylinder Double Action Pneumatic Components 10/15/20mm Suitable for Certain Brands - SDA40X15

$54.00
FREE Shipping

Thin Air Cylinder Double Action Pneumatic Components 10/15/20mm Suitable for Certain Brands - SDA40X15

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
  • product image
Thin Air Cylinder Double Action Pneumatic Components 10/15/20mm Suitable for Certain Brands - SDA40X15

Thin Air Cylinder Double Action Pneumatic Components 10/15/20mm Suitable for Certain Brands - SDA40X15

  • Brand: Unbranded
Price: $54.00
Sold by:
$54.00
FREE Shipping

In stock

We accept the following payment methods

Description

Features: 1High quality aluminum alloy material can make sure the durability and stability of the product 2The front and rear covers are screwed to the cylinder tube, which is tight and will not fall off easily. 3The piston sealing adopts a special-shaped two-way sealing structure, compact appearance and has oil storage function. 4The front end cover is guided by self-lubricating bearings, which has good lubrication and guiding performance. 5Adopt double action mode and fixed buffer form, available in three styles for choice Item Type: Air Cylinder Model: SDA40 Main Material: Aluminum Alloy Working Medium: Air Working Pressure: 0.15-0.8mpa Guaranteed Pressure Resistance: 1.5MPa215Psi Buffer Form: Fixed Buffer Mode of Action: Double Action Buffering Method: Anti-Collision Pad Stroke: 10/15/20mm Temperature: 4H-176H (-20-80) Optional Style: SDA40X10, SDA40X15, SDA40X20 SDA40X10: Double Side: Dia. 10 Tooth M8x1.25 Hole: Dia. 6.5 Piston Rod Diameter: 16 Piston Rod Inner Teeth: M8x1.25 Deep 12 Hole Distance: 19 Air Inlet Thread: PT1/8 Total Cylinder Length: 43 Cylinder Length: 36 SDA40X15: Double Side: Dia. 10 Tooth M8x1.25 Hole: Dia. 6.5 Piston Rod Diameter: 16 Piston Rod Inner Teeth: M8x1.25 Deep 12 Hole Distance: 24 Air Inlet Thread: PT1/8 Total Cylinder Length: 48 Cylinder Length: 41 SDA40X20: Double Side: Dia. 10 Tooth M8x1.25 Hole: Dia. 6.5 Piston Rod Diameter: 16 Piston Rod Inner Teeth: M8x1.25 Deep 12 Hole Distance: 29 Air Inlet Thread: PT1/8 Total Cylinder Length: 53 Cylinder Length: 46 1 x&nbspAir Cylinder
