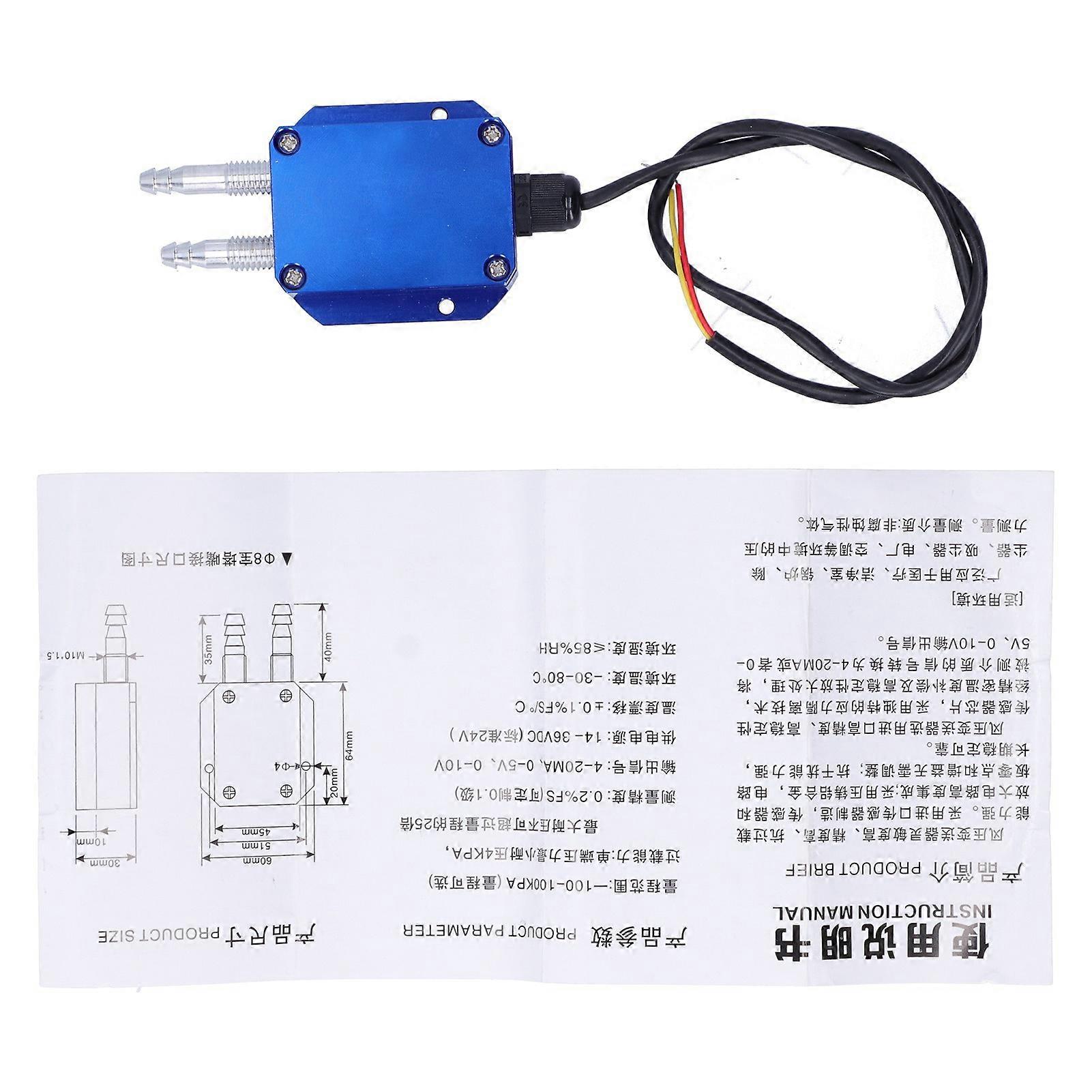

Feature: 1. The wind pressure transmitter has high sensitivity, high accuracy and strong anti‑overload capability. 2. The sensor and amplifier circuit are highly integrated, with strong anti‑interference ability, long‑term stability and reliability. 3. Using die‑cast aluminum alloy, the 0 point and accuracy of the circuit board do not need to be adjusted. 4. Using a unique stress isolation technology, the signal of the measured medium can be converted into a 4-20mA output signal. 5. Small size, easy to carry and store, convenient to use and with good performance. Specification: Item Type: Wind Pressure TransmitterMaterial: Aluminum alloy Measuring Medium: Non-corrosive gas Overload Capacity: Single-ended minimum withstand voltage 4Kpa, maximum withstand voltage can not exceed 25 times the range Measurement Accuracy: 0.2%FS Output Signal: 4~20mA Power Supply: DC24V Wire Length: Approx. 50cm / 19.7in Pagoda Mouth Diameter: Approx. 8mm / 0.3in Temperature Drift: ±0.1%FS/℃ Ambient Temperature: -30℃~+80℃ Environmental Humidity: ≤85%RH Applicable Environment: Widely used in pressure measurement in clean rooms, boilers, dust collectors, vacuum cleaners, power plants, air conditioners, etc.Size: Approx. 60mm / 2.4in51mm / 2in 45mm / 1.8in20mm / 0.8in 64mm / 2.5in 4mm / 0.2in40mm / 1.6in 35mm / 1.4in 30mm / 1.2in10mm / 0.4in 1.5mm / 0.1in . Package List: 1 x Wind Pressure Transmitter
