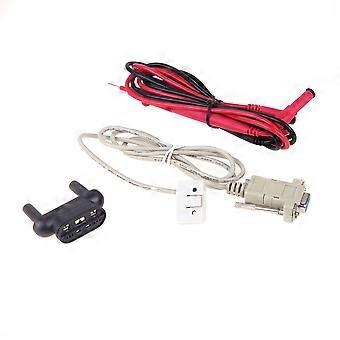

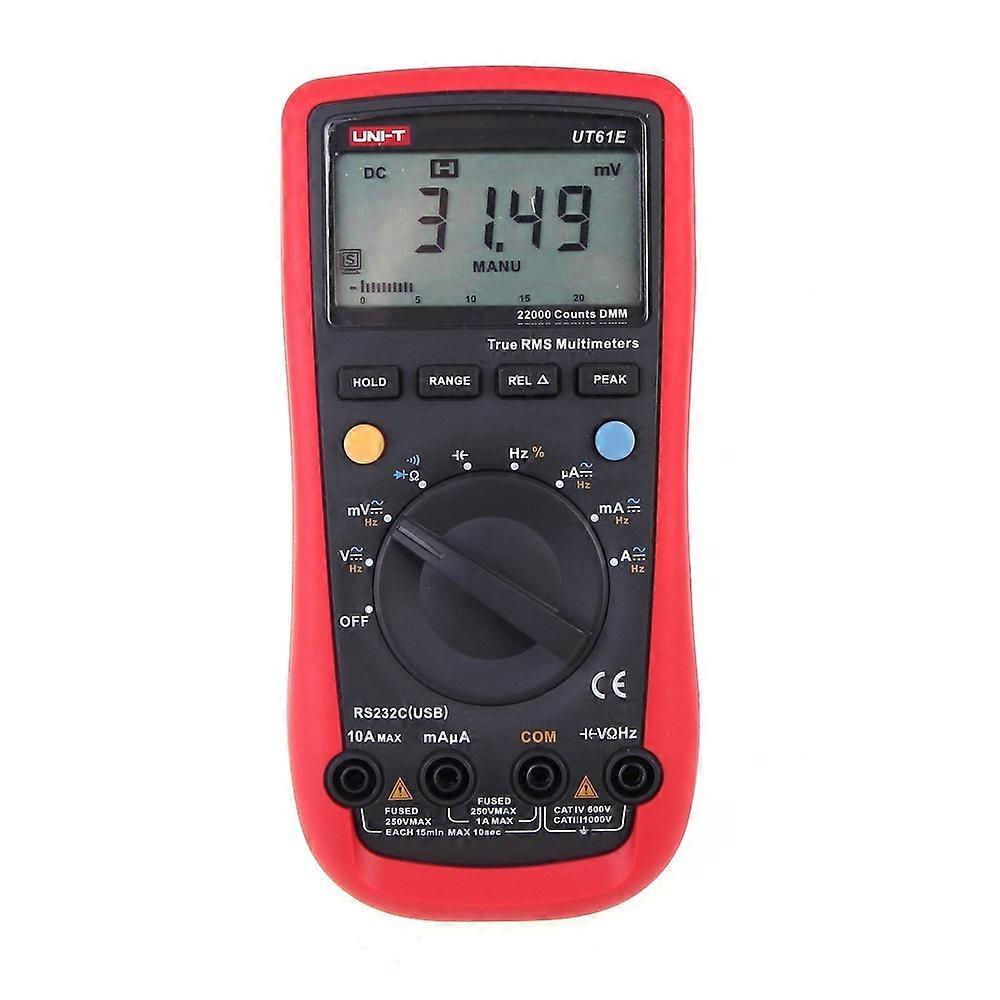

UT61 Series Digital Multimeters are products designed for multi-functional, high precision, high performance and automatic measurements. Large LCD screen High resolution analog pointer display Full range overload protection Data hold, REL, Peak value measurement Low battery indication, backlight, and sleep mode External interface supports RS-232C and USB cable UT61 Series can measure AC/DC voltage and current (UT61D, UT61E has true RMS), resistance, diode, circuit continuity, capacitance, frequency, temperature, hFE, electromagnetic induction, etc. UT61 Series complies with the standard IEC61010: CAT. III 1000V, CAT.IV 600V; they are widely used in Industrial Production and Service, Technological Research and Design, College Education (Laboratory, Courses), and Automotive Industry. ・Display Count: 22000 ・Auto Range: √ ・True RMS: √ ・Bandwidth (Hz）: 45Hz ～10kHz ・Duty Cycle: 0.1% ～ 99.9% √ ・Diode: √ ・Continuity Buzzer: √ ・Low Battery Indication: ≤7.5V ・Data Hold: √ ・Relative Mode: √ ・Peak Value: √ ・RS-232: √ ・LCD Backlight: √ ・Analogue Bar Graph: 46 ・Input Protection: √ ・Input Impedance for DCV: Around 10MΩ Specifications: ・Model: UT61E ・DC Voltage (V): 220mV/2.2V/22V/220V/1000V ±(0.1%+2) ・AC Voltage (V): 220mV/2.2V/22V/220V/750V ±(0.8%+10) ・DC Current (A): 200μA/2200μA/22mA/220mA/2.2A/10A ± (0.5%+10) ・AC Current (A): 200μA/2200μA/22mA/220mA/2.2A/10A ±(0.8%+10) ・Resistance (Ω): 220Ω/2.2kΩ/22kΩ/220kΩ/2.2MΩ/22MΩ/220MΩ±(0.5%+10) ・Capacitance (F): 22nF/220nF/2.2μF/22μF/220μF/2.2mF/22mF/220mF ±(3.0%+5) ・Frequency (Hz): 10Hz-220MHz ±(0.01%+5) General Characteristic: ・Power: 9V Battery 6F22 (not included) ・LCD Size: 65mm * 43 mm ・Product Color: Red and Grey ・Product Net Weight: 370g ・Product Size: 180mm * 87mm * 47 mm Package included: ・1xUNI-T UT61E Modern Digital Multimeters ・2xTest Lead ・1xMuli-Purpose Socket ・1xRS-232 Interface Cable ・1xPC Software CD ・1xEnglish Manual
