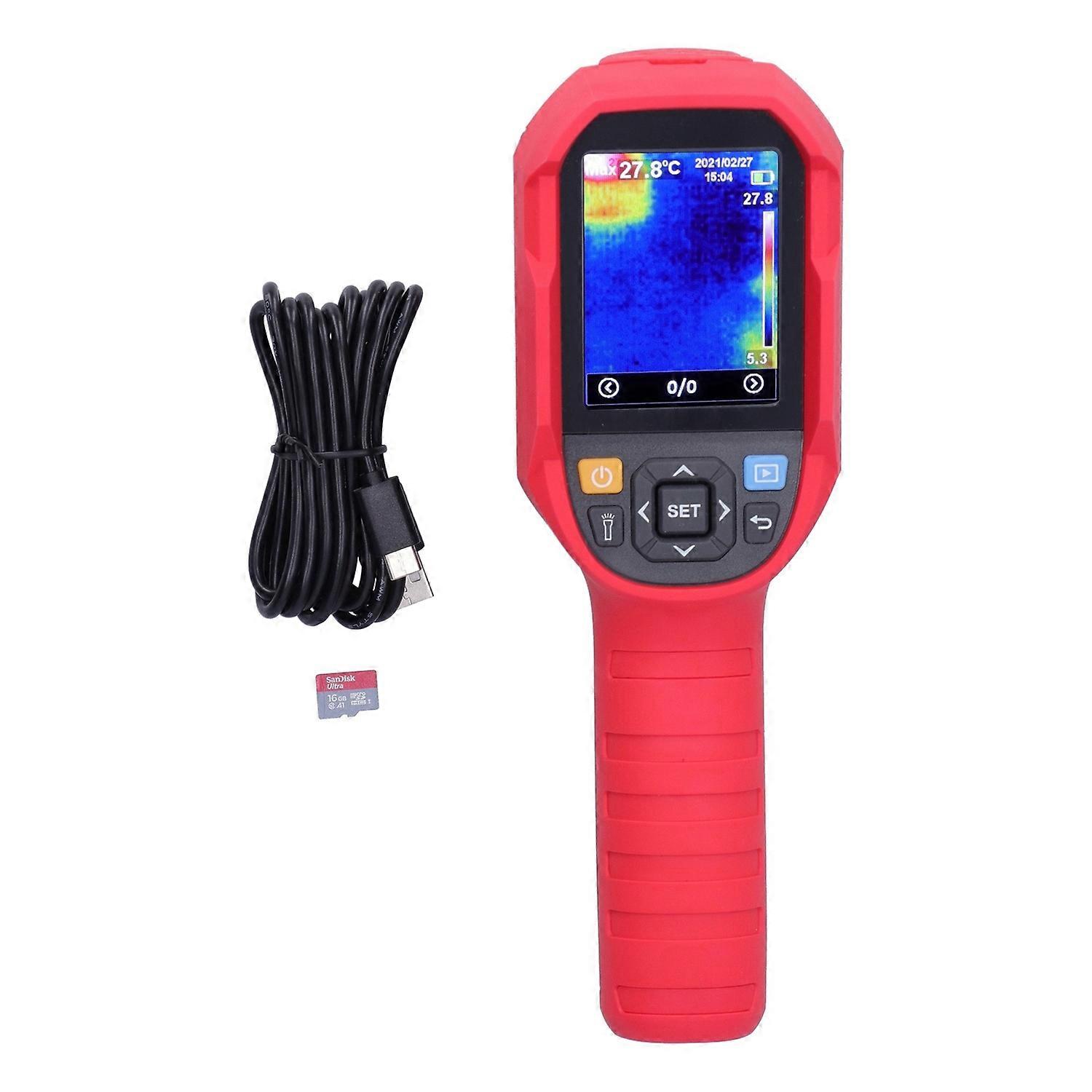

Feature: 1. Temperature measurement screen supports ROI, temperature center point, and high/low temperature tracking (default). 2. 2.8in high‑definition TFT LCD screen, infrared resolution of 80x60, clear display image, can observe the image details. 3. 5 kinds of optional pallets, including iron red, rainbow, white hot, red hot, ice blue and other 5 palettes. 4. USB communication and imaging. After connecting to a PC, can browse images and analyze data in USB mode, or switch to USB camera mode for real‑time imaging. 5. Mounting on a tripod. In 1/4in tripod mounting hole at the bottom of the handle, the thermomagnet can be installed on the tripod to ensure stability during the measurement. 6. Built-in 3.6V 5000mAh high-capacity lithium-ion battery, which can provide up to 6 hours of service life after being fully charged. It can be charged via Type-C USB or connected to a PC. 7. Multifunctional, -10-400℃ temperature measurement range, ℃/℉switchable unit, buzzer alarm, high/low temperature automatic captures, high/low temperature alarm, adjustable display brightness, IP65 protection and 2m drop, etc. 8. Support image storage, it comes with a 16GB memory card for saving captured images. 9. LED light, used for auxiliary lighting, once the measured temperature exceeds the set temperature range, the light will flash. Specification: Item Type: Thermal Imager Material: ABS Model: UTi85A Supports 7 languages: Chinese, English, Spanish AM, European Union Spanish, German, Italian, FrenchProduct Size: Approx. 236x75.5x86mm / 9.3x3.0x3.4in How to Use: Get the product, insert the memory card, press and hold the power button for 3 seconds to turn it on, open the camera plug of the back cover, wait for the buffer time, and then use it. There are a variety of buttons at the bottom of screen. Press and hold the flashlight for 1 second to turn it on. With a shutter button on the front of thermal imager to take pictures, which can be viewed in the blue button. Press the SET button to call up the menu, the first is the temperature unit option, can switch the temperature unit, the second is the cursor option, the third is the pallet option, the fourth is the temperature alarm option, and fifth is the setting , It can be confirmed by pressing SET once, and the user can adjust the parameters suitable for measurement through the setting menu. The infrared thermal imager is simple to operate, easy to use, and accurate in measurement. Technical Index Function Name Work Performance Sensor Uncooled Focal Plane Temperature Range -10℃-400℃ Resolution 0.1℃ Accuracy Target Temperature Of 0℃ or Above, Accuracy: ±2℃ or ±2% (Whichever is Greater) Measuring Distance 25cm Temperature Measurement Response Time ≦500ms Thermal Imaging Pixels 4800 (80x60) Pixels Size 17μm Swatches White Hot, Red Hot, Ice Blue, Rainbow Color, Iron Red Infrared Spectrum Bandwidth 8-14μm Field of View (FOV) 51°(H)X 38°(V) Instantaneous Field of View (IFOV) 11mrad Thermal Imaging Sensitivity ≦150mK Frame Rate ≦9Hz Temperature Measurement Display Center point temperature measurement and high temperature tracking Image Format BMP Buzzer Stand By Button 10 Buttons (power on button, camera button, back button, left and right navigation buttons, STM button, picture browsing button, LED light switch button) PC Analysis Software Stand By Real-Time Image Transmission Stand By Data Communication Type-C USB Display Type 2.8in TFT LCD Display Resolution 320x240 Battery Li-Ion 3.6V/5000mAh 26650 Single Cell (Built-In Battery) Automatic Shut-Down Optional (5min, 10min, 30min, OFF) Default 30min Usage Time Not Less Than 6 Hours Charging Time 4 Hours Charging Voltage/Current 5V/2A IP Rating IP65 Fall 2m Image Storage Memory Card Transportation Environment, Storage Environment -20℃-60℃ (-4℉-140℉),
