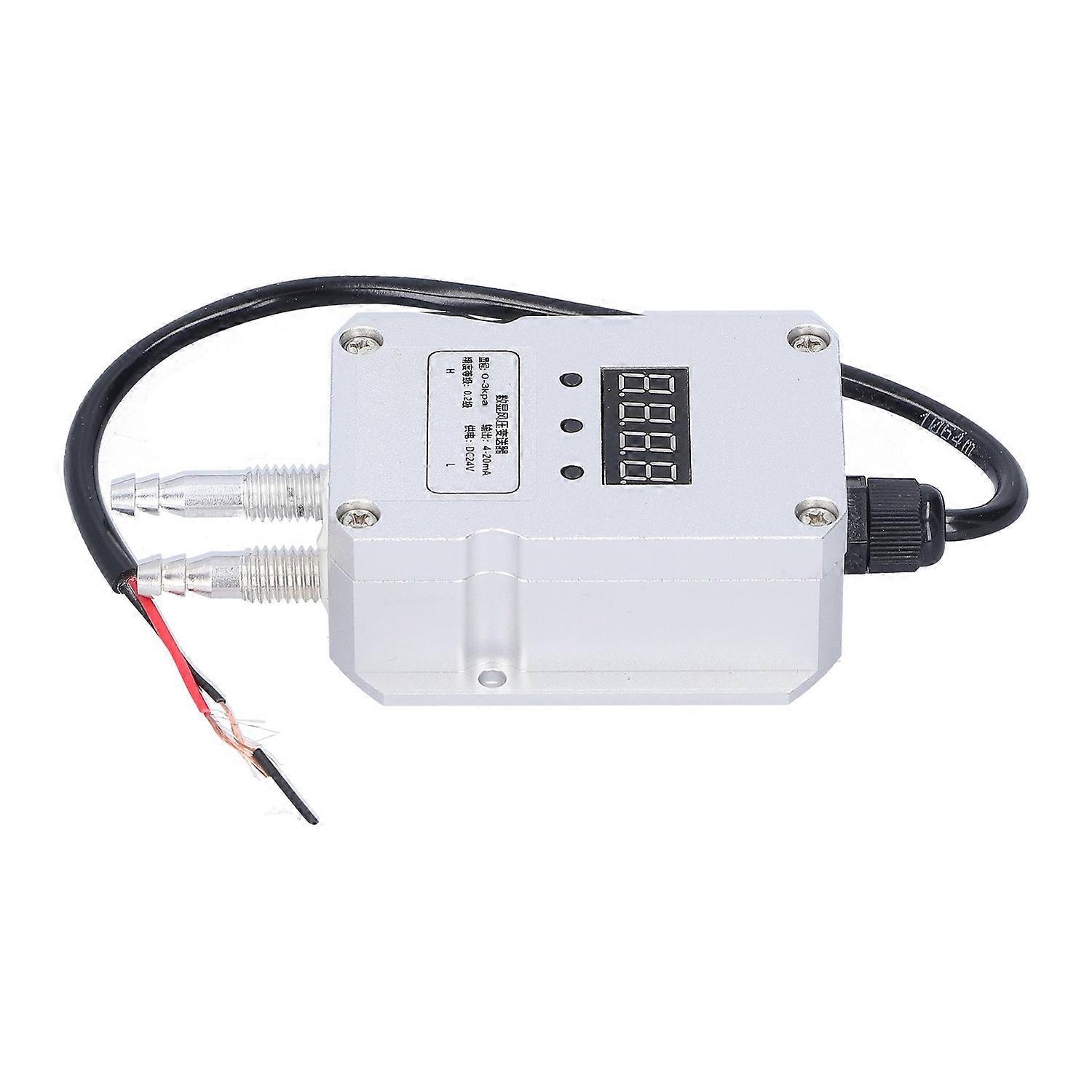

Feature: 1. The wind pressure transmitter adopts imported sensor chip, which is finely assembled. 2. Using advanced circuit design and temperature compensation technology, superior performance, accurate measurement and strong anti‑interference ability. 3. Assembled with OEM silicon piezoresistive core body, and the shell is aluminum alloy structure. 4. The 2 pressure ports are: M10 thread and cock, which can be directly installed on the measuring pipe. 5. Widely used in boiler air supply, down ventilation and other power, pressure process control fields in the coal industry. Specification: Item Type: Wind Pressure TransmitterMaterial: Aluminum alloy Color: Silver Voltage: DC24V Accuracy Level: 0.2 level Compensation Temperature: 0-50℃ Environment Temperature: -30-80℃ Working Method: Differential pressure 0 Temperature Drift: ±0.03%FS/C Sensitivity Temperature: ±0.03%FS/C Overload Pressure: 300%FS The Pressure Interface Is: M10 thread Debugging Method: Open The HSM Connector, Unscrew The Stainless Steel Tube, You Can see the 0 and full range resistors, external standard power supply and ammeter (above 0.2), you can adjust the steps as follows: 1. When the transmitter is not pressurized, adjust the 0-point resistor to make the output current 4mA; 2. When the transmitter is pressurized to the full range, adjust the full-scale resistor to make the output current 20mA; 3. Repeat the above steps two or three times until the signal is normal. 4. After adjusting, tighten the protective cover. . Package List: 1 x Wind Pressure Transmitter
