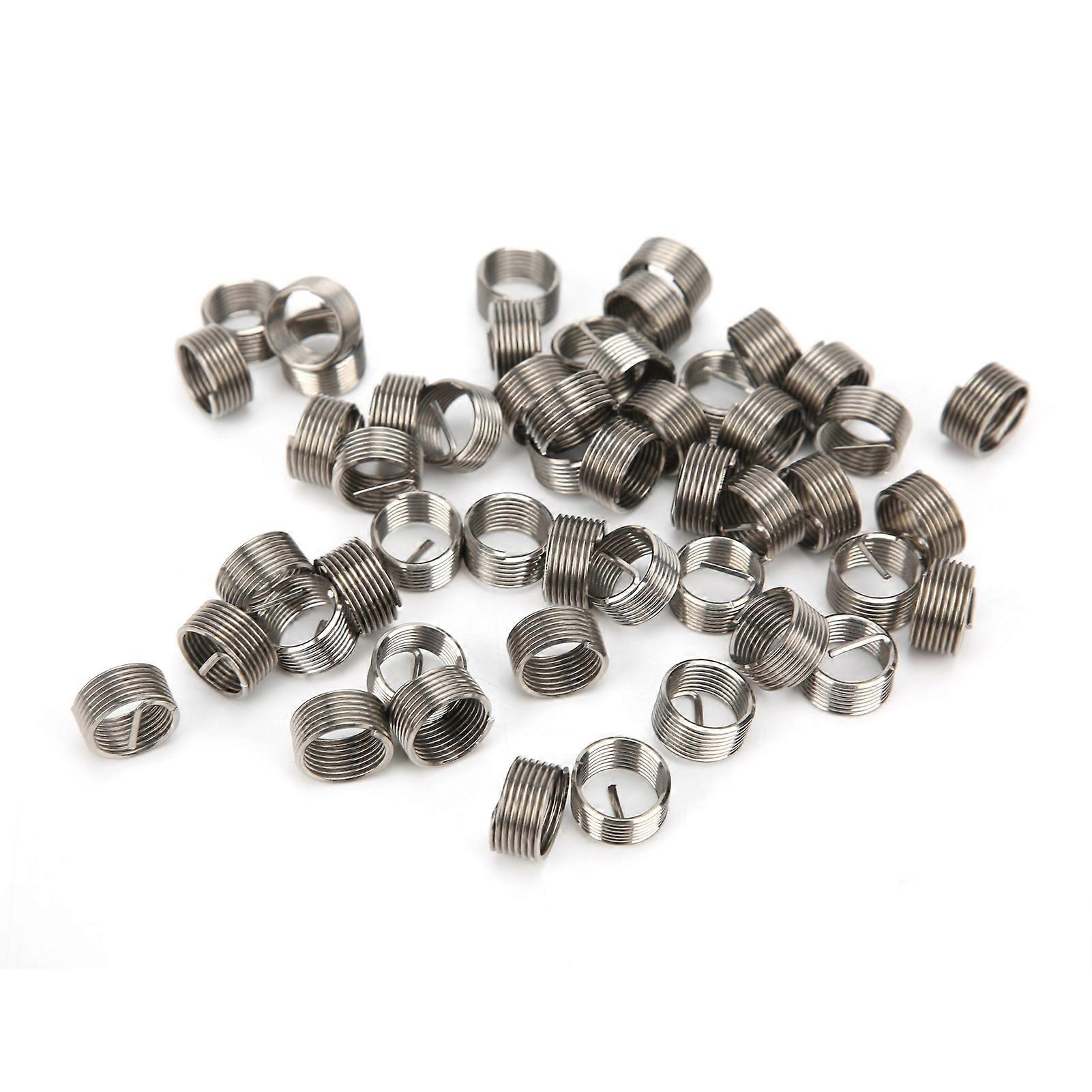

Item Type: Wire Thread Insert_x000D_Material: SUS304_x000D_Model: M10 x 1 x 1D_x000D_Thread Specification: M10 x 1_x000D_Length After Installation: Approx. 10mm / 0.4in_x000D_Number of Turns Before Installation: Approx. 7.7_x000D_Outside Diameter Before Installation: Approx. 12-12.5mm / 0.5-0.5in_x000D_Drill Bit Diameter: Approx. 10.3mm / 0.4in_x000D_Wire Thread Insert Model Description: For Example: M10 x 1 x 1D, which means that after the screw is set, the female thread is M10, the pitch is 1, the length is 1D (length refers to the length of the diameter, that is, 1 x 10=10mm), the length here refers to Is the length after installation._x000D_Wire thread inserts are also called threaded sheaths, stainless steel threaded sleeves, wire sleeves, and braces. They are a new type of female thread fasteners made of high-strength, high-accuracy diamond-shaped cross-section steel wire; in aluminum alloy, zinc The application of low-strength engineering materials such as alloys, copper, plastics can significantly improve thread strength and wear resistance. 1Fit the socket set in the screw hole of the metal material workpiece to form a high?accuracy standard female thread. 2When thread processing error occurs or female thread hole is damaged, the wire thread insert is a good maintenance tool. 3Wire thread insert can be used to convert between metric and imperial threaded holes, which is convenient and fast. 4The thread size is standard, the thread is clear, and it will be more accurate for thread sliding tooth restoration. 5304 stainless steel has good corrosion resistance and is not easy to break when repairing thread holes.50 x Wire Thread Insert
